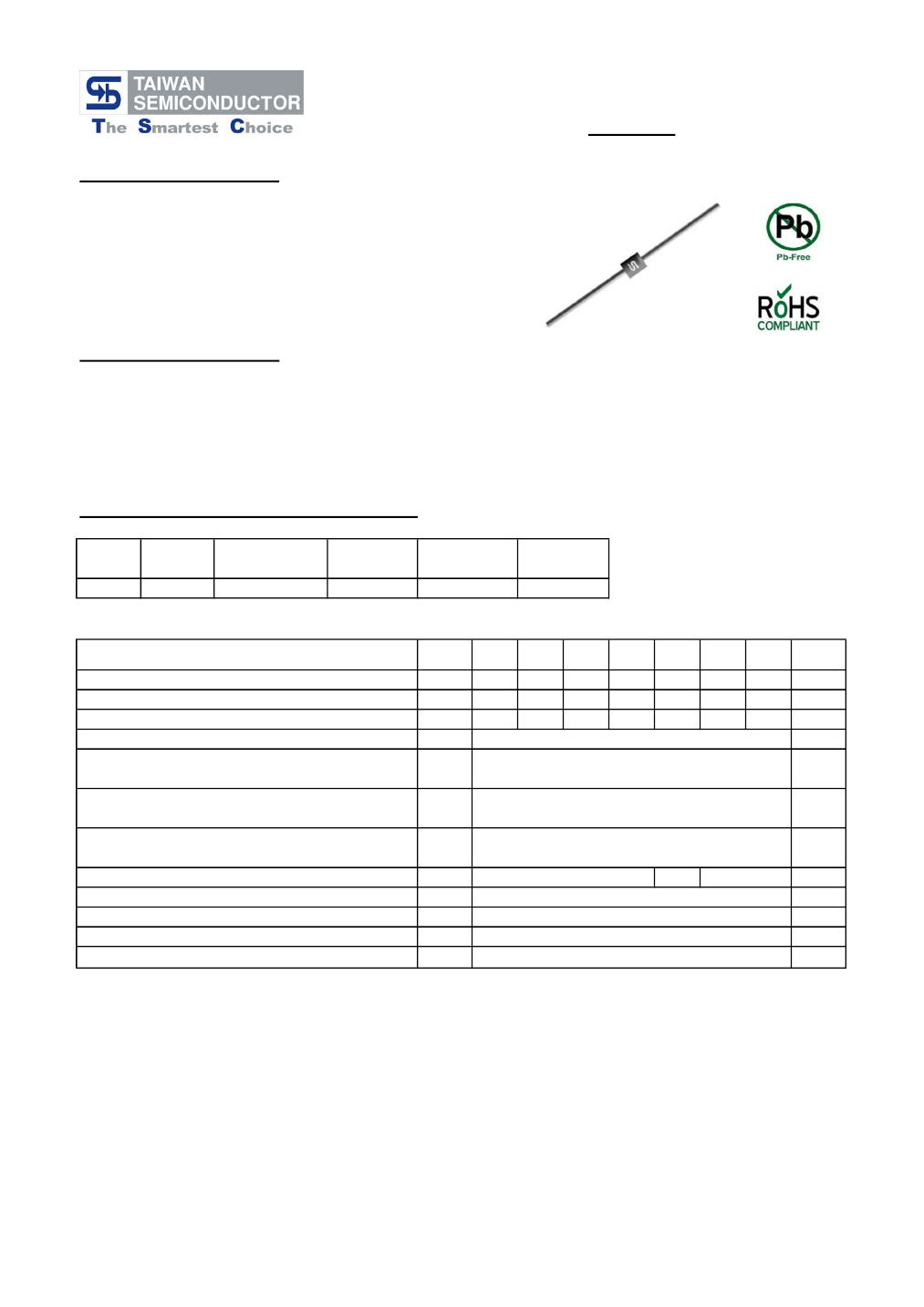

FR301G - FR307G
3.0AMPS Glass Passivated Fast Recovery Rectifiers
DO-201AD
Features
Glass passivated chip junction
High efficiency, Low VF
High current capability
High reliability
High surge current capability
Low power loss
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode end
High temperature soldering guaranteed: 260℃/10s
Weight: 1.2 grams
Ordering Information (example)
Part No.
FR301G
Package
DO-201AD
Packing
500 / AMMO box
INNER
TAPE
52mm
Packing code
A0
Packing code
(Green)
A0G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@3A
Maximum DC Reverse Current at
Rated DC Blocking Voltage
@ T
A
=25
℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
T
J
T
STG
FR
301G
50
35
50
FR
302G
100
70
100
FR
303G
200
140
200
FR
304G
400
280
400
3
125
1.3
5
100
FR
305G
600
420
600
FR
306G
800
560
800
FR
307G
1000
700
1000
Units
V
V
V
A
A
V
uA
uA
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
150
30
35
250
500
O
nS
pF
C/W
O
O
- 55 to + 150
- 55 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:E13

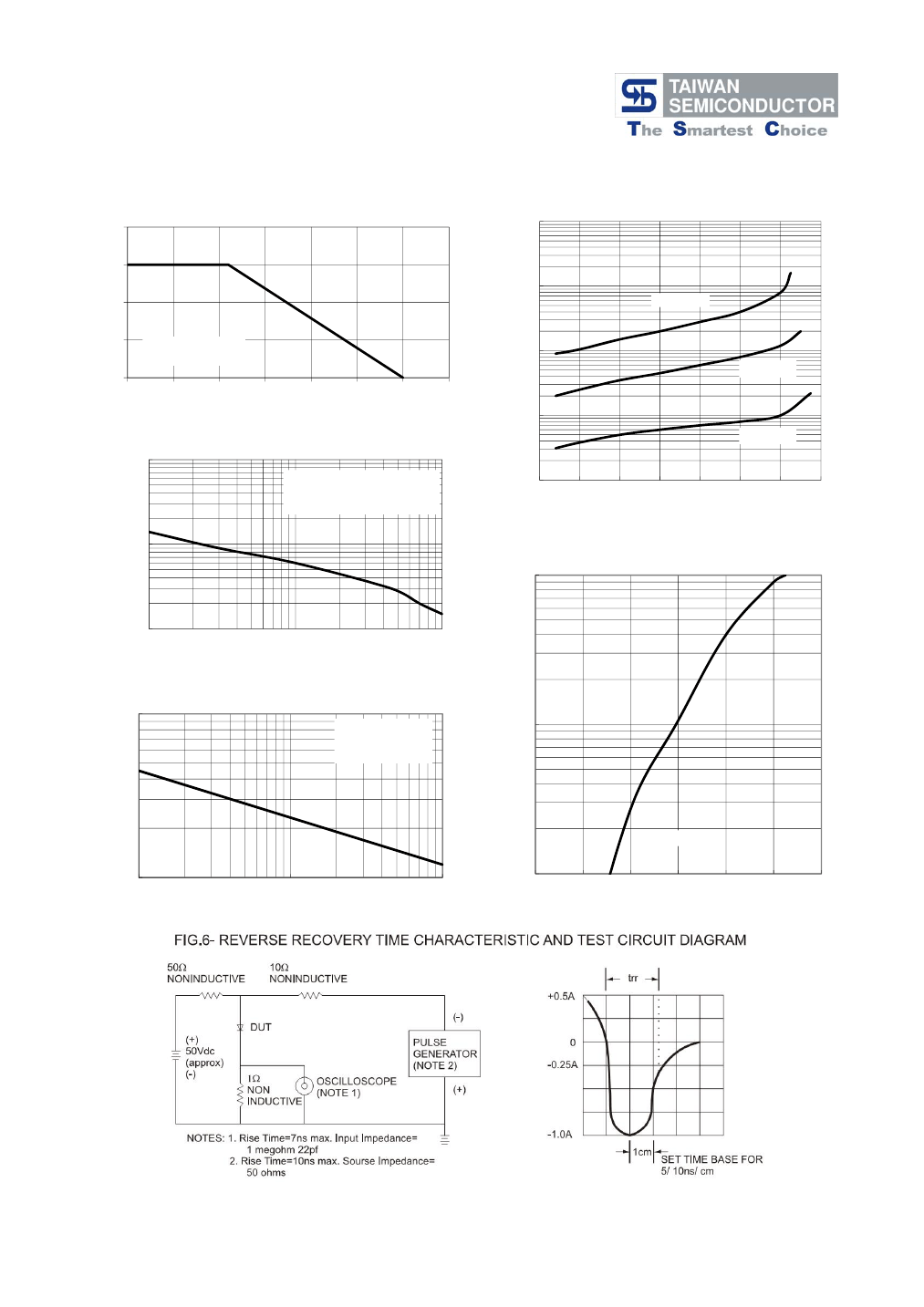

RATINGS AND CHARACTERISTIC CURVES (FR301G THRU FR307G)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
1000
AVERAGE FORWARD CURRENT (A)
4
3
2
1
0
0
INSTANTANEOUS REVERSE CURRENT (uA)
100
TA=125℃
RESISTIVE OR
INDUCTIVE LOAD
10
TA=75℃
25
50
75
100
125
150
175
AMBIENT TEMPERATURE (
o
C)
1
TA=25℃
PEAK FORWARD SURGE CURRENT
(A)
FIG. 3- MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
1000
8.3mS Single Half Sine Wave
JEDEC Method
TA=25℃
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
100
10
FIG. 5- TYPICAL FORWARD CHARACTERISTICS
10
NUMBER OF CYCLES AT 60 Hz
INSTANTANEOUS FORWARD CURRENT (A)
1
10
100
FIG. 4- TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE (pF)
TA=25℃
f=1.0MHz
Vsig=50mVp-p
1
TA=25℃
0.1
10
1
10
REVERSE VOLTAGE (V)
100
0.4
0.6
0.8
1
1.2
1.4
1.6
FORWARD VOLTAGE (V)
Version:E13
