COMPONENTS PRODUCT INFORMATION
NEW
Board to Board Connector Compatible to PCI Express
CONNECTOR
WB3 Series
RoHS Compliant
MB-0138-2
July 2006

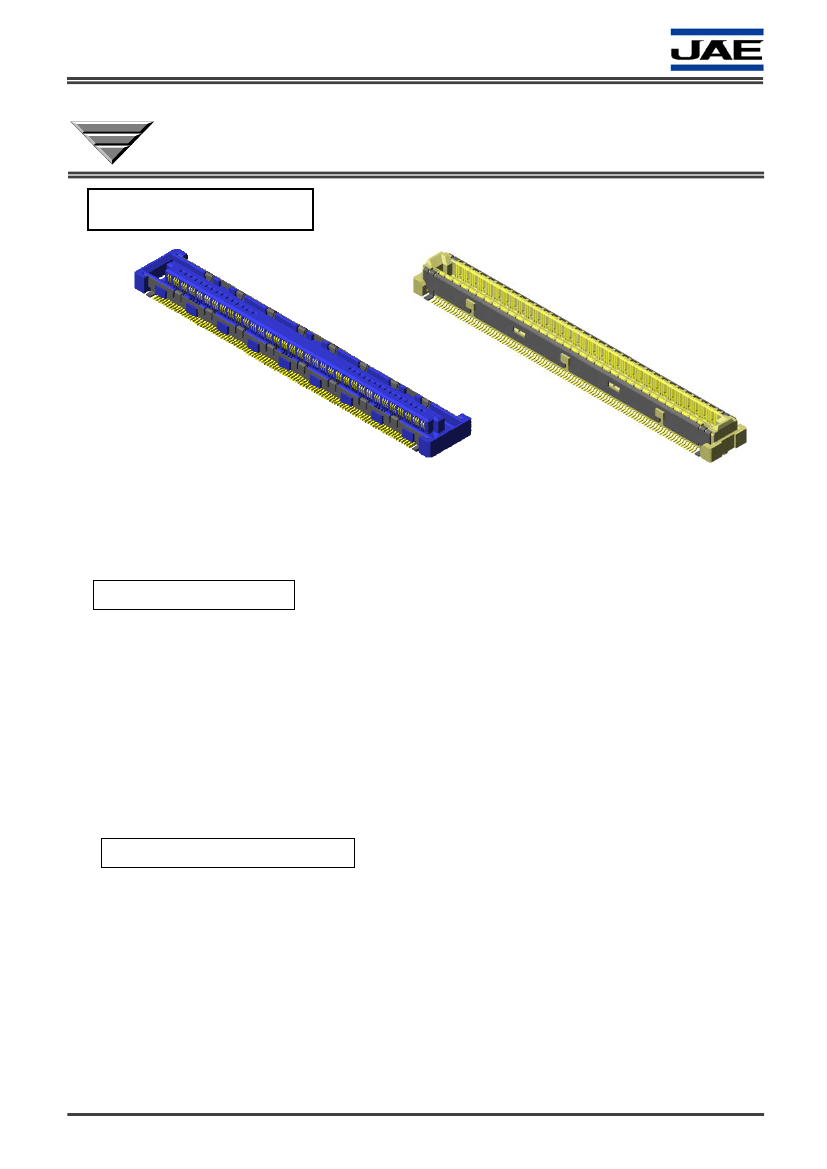

WB3 Series are board to board connectors satisfying the specification of the
transmission characteristics of PCI Express standard.
Suitable for connections between units that need TMDS transmission, such as
graphic card and PCI Express.
Features
Compliant with PCI Express Card Electrical Mechanical SPEC
High density 0.5mm pitch type yet having a high level transmission characteristic
and high speed transmission is possible.
Contact configuration that enables transmission of PCI Express(X16), TMDS, VGA
and others.
Parallel board to board connection is possible. Stacking height, 4mm and 5mm are
available.
EMI shielding is applied.
Compatible to automatic mounting. Available in embossed tape package.
General Specifications
No. of contacts: 200 pos.
Contact resistance: 50m ohm max.
Dielectric withstanding voltage: AC250V per minute
Operating temperature: -40 Deg. C to +85 Deg. C
Rated current: 0.5A/ per pin
Mating cycle: 25 cycle
Insertion loss: -1dB min. (1.25GHz max.)/-5dB min. (3.75GHz max.)
Return loss: -12dB max. (1.3Ghz max.)/ -7dB max. (2Ghz max.)/ -4dB (3.75GHz max.)
Crosstalk(near end): -32dB max. (1.25Ghz max.)/ -26dB max. (3.75GHz max.)
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
1/5
MB-0138-2
Materials and Finishes
Components
Materials /Finishes
Receptacle
Copper Alloy/
Contact: 0.76um min. Au plating over Ni
Terminal: Au flash plating over Ni
Thermoplastic resin UL94V-0 black
Copper alloy: Tin plating
Plug
Copper Alloy/
Contact: 0.76um min. Au plating over Ni
Terminal: Au flash plating over Ni
Thermoplastic resin UL94V-0 black
Stainless steel: Tin plating
Contact
Insulator
Shell
Contact
Insulator
Shell
Ordering Information
WB3
Series
F: Receptacle portion
M: Plug portion
No. of contacts
F
200 V
D
1
R
1000
Packaged amount
Emboss reel
Modification code
Plating specification
V: Straight SMT, with hold down
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
2/5
MB-0138-2
Receptacle side: WB3F200VD1 (SJ100888)
Embossed reel product: WB3F200VD1R1000
(SJ100889)
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
3/5
MB-0138-2

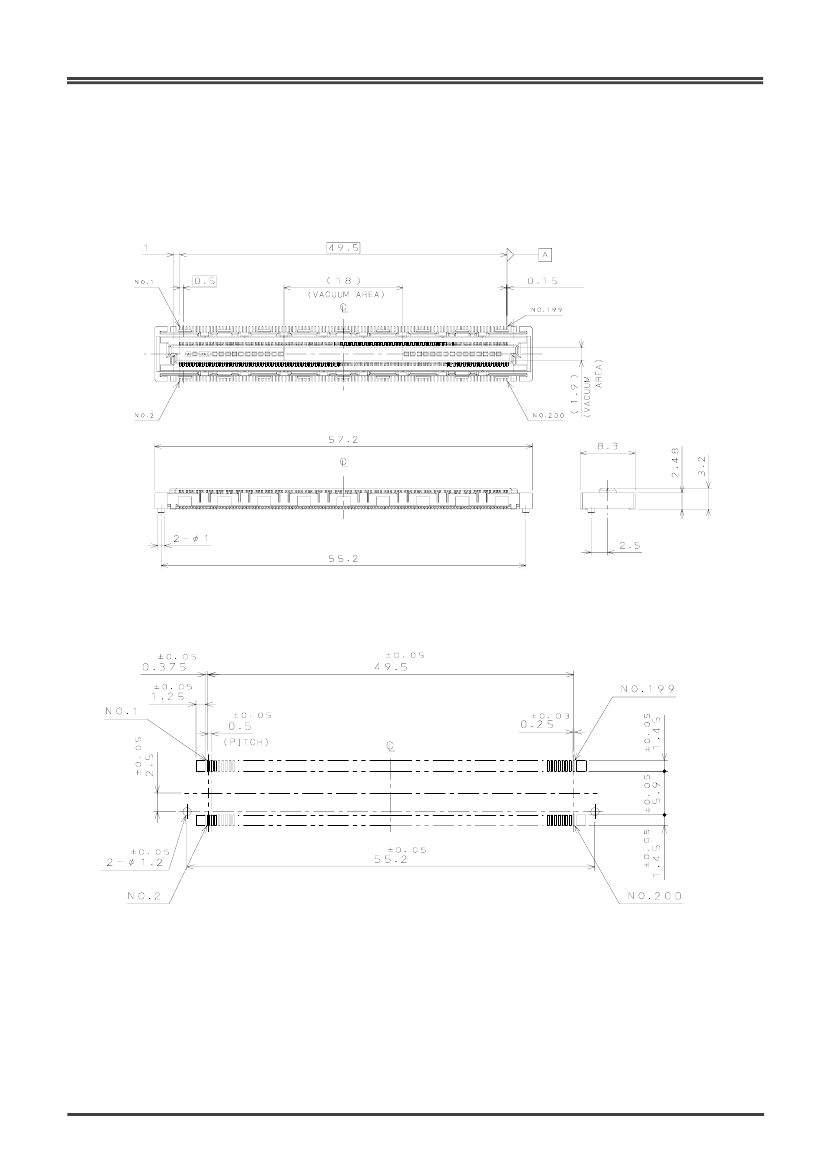

Plug side: WB3M200VD1 (SJ100890)
Embossed reel product: WB3M200VD1R800 (SJ100891)
Unit: mm
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
4/5
MB-0138-2

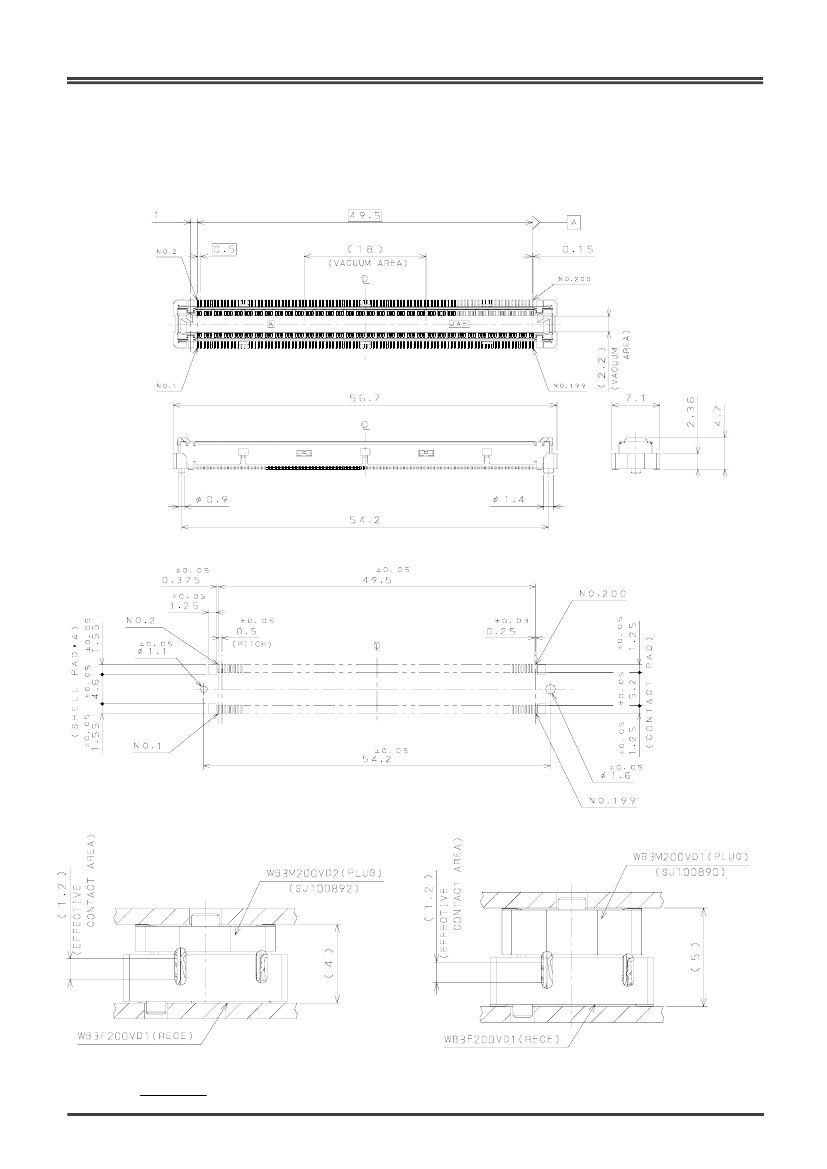

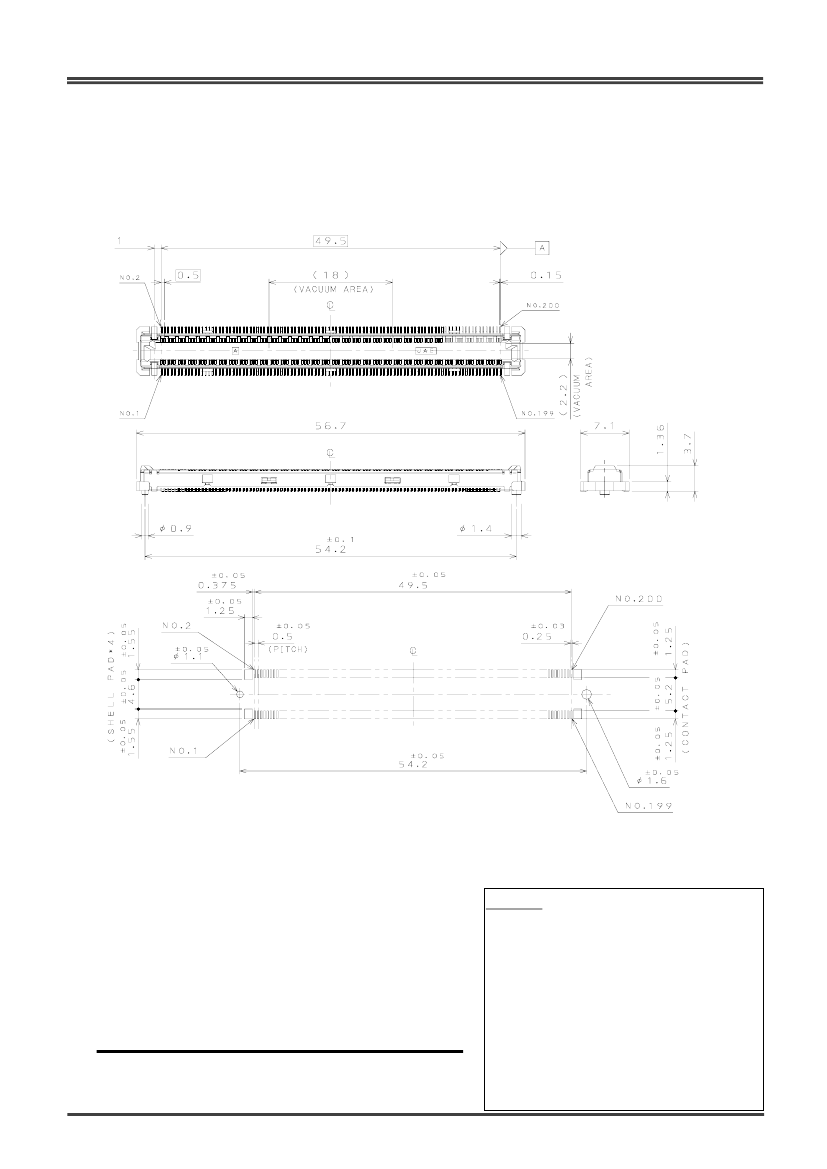

Plug side: WB3M200VD2 (SJ100892)
Embossed reel product: WB3M200VD2R1000 (SJ100893)
Notice:
Products shown in this leaflet are
made for the applications listed below. However,
if the above-mentioned products are to be used in
aerospace devices, marine cable-connection
devices, atomic power control systems, medical
equipment for life-support systems, or any other
specific application requiring extremely high
reliability, please contact JAE for further
information.
Recommended applications: computers, office
machines, measuring devices,
telecommunication devices (terminals, mobile
devices), AV devices, household applications, FA
devices, etc.
Japan Aviation Electronics Industry, Limited
Product Marketing Division
Aobadai Building, 3-1-19, Aobadai, Meguro-ku, Tokyo 153-8539
Phone: +81-3-3780-2787 FAX: +81-3-3780-2946
* The specifications in this brochure are subject to change without notice. Please contact JAE for information.
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
5/5
