0751506001: DescriptionIC Socket, LGA251, 251 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size29KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0751506001 Overview

IC Socket, LGA251, 251 Contact(s), ROHS COMPLIANT

0751506001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD (3)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	LGA251
Shell material	PLASTIC
JESD-609 code	e4
Manufacturer's serial number	75150
Number of contacts	251
Base Number Matches	1

Preview

Download Datasheet

View All

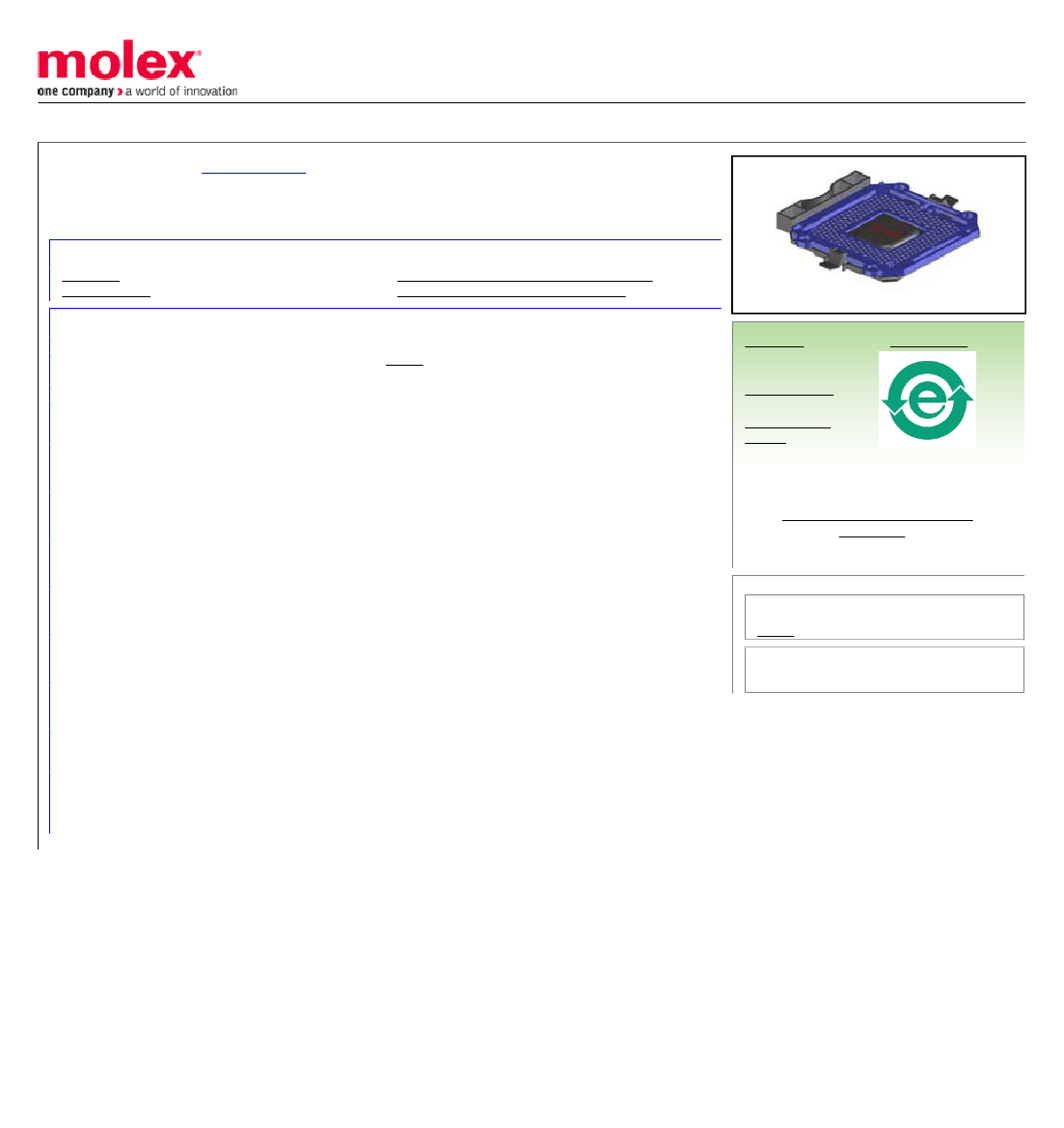

This document was generated on 11/20/2009

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0751506001

Planned for Obsolescence

1.00mm (.039") Pitch LGA Socket, for DLP* Processors, 251 Circuits, with Packaging

Plate

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Component Type

Product Name

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum

Voltage - Maximum

Material Info

Product Specification PS-74988-601 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

Processor Sockets

75150

Socket

DLP* LGA

251

Black

High Performance Alloy (HPA)

Gold

High Temperature Thermoplastic

Tray

0.039 In

1.00 mm

30.4

0.76

30.4

0.76

-10°C to +65°C

Surface Mount

0.8A

30V

Search Parts in this Series

75150 Series

Mates With

DLP* chip mounting application

Reference - Drawing Numbers

Product Specification

PS-74988-601

Sales Drawing

SD-75150-601

* DLP is a registered trademark of Texas Instruments Incorporated.

This document was generated on 11/20/2009

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
