800-90-060-20-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 800-90-060-20-001000

800-90-060-20-001000: DescriptionBoard Connector, 60 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size484KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

800-90-060-20-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	800-90-060-20-001000	-	-	View	Buy Now

800-90-060-20-001000 Overview

Board Connector, 60 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,

800-90-060-20-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL (150)
Contact completed and terminated	TIN LEAD (200) OVER NICKEL (150)
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	800
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

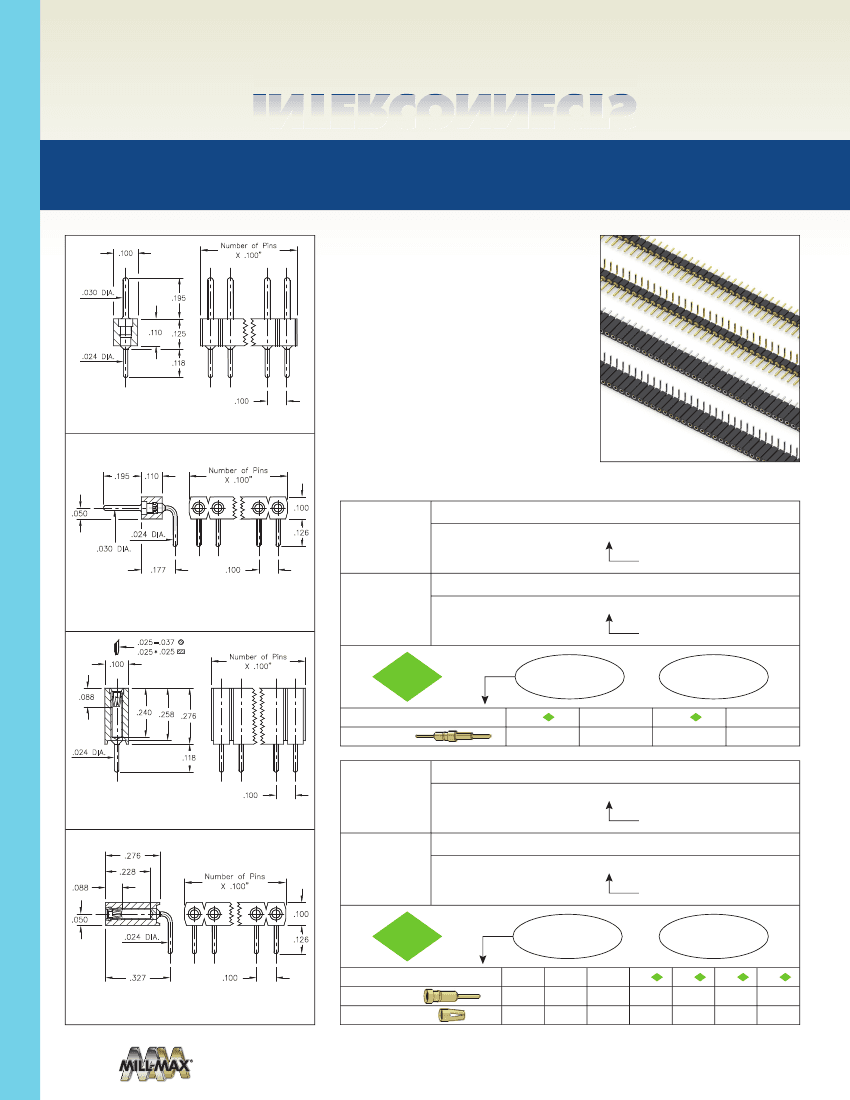

SERIES 800 & 801 • .100” GRID (.030” DIA. PINS), STRAIGHT &

RIGHT ANGLE HEADERS AND SOCKETS • SINGLE ROW STRIPS

Number of Pins

X .100"

.100

•

Pin interconnects available with straight MM

#7007 or right angle MM #5005 solder tails.

See page 215 for details

.030 DIA.

.195

•

Sockets are available with straight MM #1304

or right angle MM #1305 soldertails. See

pages 177 and 179 for details

.110

.024 DIA.

.125

.118

•

MM #1304 and MM #1305 receptacles use

.100

FIG. 1

.195

.110

Number of Pins

X .100"

Hi-Rel, 6- nger BeCu #47 contact rated at 4.5

amps. Receptacles accept .030” diameter and

.025” square pins. See page 256 for details

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

ORDERING INFORMATION

.100

.050

.024 DIA.

.030 DIA.

.177

.100

Series 800...10-001

Straight Pin Header

01-64

.126

FIG. 1

800 XX 0_ _ 10 001000

Specify number of pins

Series 800...20-001

Right Angle Pin Header

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

.025-.037

.025 * .025

.100

Number of Pins

X .100"

FIG. 2

RoHS - 2

800 XX 0_ _ 20 001000

Specify number of pins

XX=Plating Code

See Below

µ”

2011/65/EU

.088

.240 .258

.276

SPECIFY PLATING CODE XX=

Pin Plating

200

µ”

Sn/Pb

200

µ”

.024 DIA.

.118

Series 801...10-001

.100

FIG. 3

.276

FIG. 3

801 XX 0_ _ 10 001000

Specify number of pins

01-50

Series 801...20-001

Number of Pins

X .100"

Straight Socket

Right Angle Socket

01-50

For

Electrical, Mechanical

& Enviromental Data,

See page 264

PAGE 54 | INTERCONNECTS

.228

.088

FIG. 4

.100

801 XX 0_ _ 20 001000

Specify number of pins

.050

.024 DIA.

.126

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

µ”

.327

.100

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200

µ”

200

µ”

100

µ”

200

µ”

Au Flash

200

µ”

Sn/Pb 200

µ”

Sn/Pb 200

µ”

Sn/Pb

200

µ”

FIG. 4

µ”

100

µ”

Sn/Pb

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
