CY7C1339B
128K x 32 Synchronous Pipelined Cache RAM
Features
• Supports 100-MHz bus for Pentium and PowerPC
operations with zero wait states
• Fully registered inputs and outputs for pipelined
operation
• 128K × 32 common I/O architecture
• 3.3V core power supply
• 2.5V / 3.3V I/O operation
• Fast clock-to-output times
— 3.5 ns (for 166-MHz device)
— 4.0 ns (for 133-MHz device)
•
•
•
•
•
•
— 5.5 ns (for 100-MHz device)
User-selectable burst counter supporting Intel
Pentium interleaved or linear burst sequences
Separate processor and controller address strobes
Synchronous self-timed writes
Asynchronous output enable
Offered in JEDEC-standard 100-pin TQFP and 119-ball
BGA packages
“ZZ” Sleep Mode and Stop Clock options
The CY7C1339B I/O pins can operate at either the 2.5V or the
3.3V level; the I/O pins are 3.3V-tolerant when V
DDQ
= 2.5V.
All synchronous inputs pass through input registers controlled
by the rising edge of the clock. All data outputs pass through
output registers controlled by the rising edge of the clock.
Maximum access delay from the clock rise is 3.5 ns (166-MHz
device).
The CY7C1339B supports either the interleaved burst
sequence used by the Intel Pentium processor or a linear burst
sequence used by processors such as the PowerPC. The
burst sequence is selected through the MODE pin. Accesses
can be initiated by asserting either the Processor Address
Strobe (ADSP) or the Controller Address Strobe (ADSC) at
clock rise. Address advancement through the burst sequence
is controlled by the ADV input. A two-bit on-chip wraparound
burst counter captures the first address in a burst sequence
and automatically increments the address for the rest of the
burst access.
Byte Write operations are qualified with the four Byte Write
Select (BW
[3:0]
) inputs. A Global Write Enable (GW) overrides
all Byte Write inputs and writes data to all four bytes. All Writes
are conducted with on-chip synchronous self-timed Write
circuitry.
Three synchronous Chip Selects (CE
1
, CE
2
, CE
3
) and an
asynchronous Output Enable (OE) provide for easy bank
selection and output three-state control. In order to provide
proper data during depth expansion, OE is masked during the
first clock of a Read cycle when emerging from a deselected
state.
Functional Description
The CY7C1339B is a 3.3V, 128K by 32 synchronous-pipelined
cache SRAM designed to support zero wait state secondary
cache with minimal glue logic.

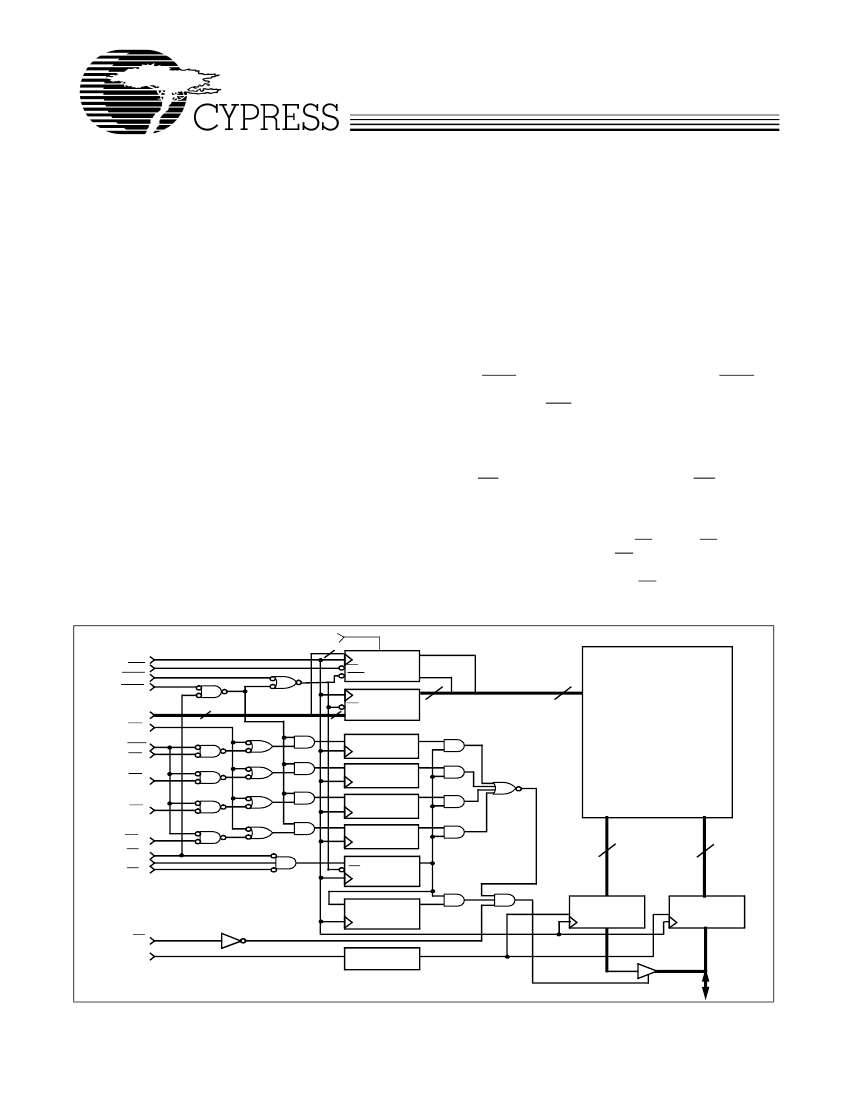

Logic Block Diagram
CLK
ADV
ADSC
ADSP
A
[16:0]
GW
BWE
BW
3
BW
2
BW
1
MODE
(A
[1;0]
) 2
BURST Q
0
CE COUNTER
Q
1
CLR
Q
ADDRESS
CE REGISTER
D
D
DQ[31:24] Q
BYTEWRITE
REGISTERS
15
17
17
15
128K × 32
MEMORY
ARRAY
D DQ[23:16] Q
BYTEWRITE
REGISTERS
D
Q
DQ[15:8]
BYTEWRITE
REGISTERS
Q
DQ[7:0]
BYTEWRITE
REGISTERS
D
BW
0
CE
1
CE
2
CE
3
32
32
D
ENABLE Q
CE REGISTER
CLK
D
Q
ENABLE DELAY
REGISTER
CLK
OUTPUT
REGISTERS
CLK
INPUT
REGISTERS
CLK
OE
ZZ
SLEEP
CONTROL
DQ
[31:0]
Cypress Semiconductor Corporation
Document #: 38-05141 Rev. *A
•
3901 North First Street
•
San Jose
•
CA 95134 • 408-943-2600
Revised March 27, 2002
CY7C1339B
Pin Definitions
Pin Name
A
[16:0]
I/O
Input-
Synchronous
Input-
Synchronous
Input-
Synchronous
Input-
Synchronous
Input-Clock
Input-
Synchronous
Input-
Synchronous
Input-
Synchronous
Pin Description
Address Inputs used to select one of the 64K address locations. Sampled at the rising edge of the
CLK if ADSP or ADSC is active LOW, and CE
1
, CE
2
, and CE
3
are sampled active. A
[1:0]
feed the
two-bit counter.
Byte Write Select Inputs, active LOW. Qualified with BWE to conduct byte writes to the SRAM.
Sampled on the rising edge of CLK.
Global Write Enable Input, active LOW. When asserted LOW on the rising edge of CLK, a global
Write is conducted (ALL bytes are written, regardless of the values on BW
[3:0]
and BWE).
Byte Write Enable Input, active LOW. Sampled on the rising edge of CLK. This signal must be
asserted LOW to conduct a Byte Write.
Clock Input. Used to capture all synchronous inputs to the device. Also used to increment the burst
counter when ADV is asserted LOW, during a burst operation.
Chip Enable 1 Input, active LOW. Sampled on the rising edge of CLK. Used in conjunction with
CE
2
and CE
3
to select/deselect the device. ADSP is ignored if CE
1
is HIGH.
Chip Enable 2 Input, active HIGH. Sampled on the rising edge of CLK. Used in conjunction with
CE
1
and CE
3
to select/deselect the device.
Chip Enable 3 Input, active LOW. Sampled on the rising edge of CLK. Used in conjunction with
CE
1
and CE
2
to select/deselect the device.
BW
[3:0]
GW
BWE
CLK
CE
1
CE
2
CE
3
OE
Input-
Output Enable, Asynchronous Input, active LOW. Controls the direction of the I/O pins. When LOW,
Asynchronous the I/O pins behave as outputs. When deserted HIGH, I/O pins are three-stated, and act as input
data pins. OE is masked during the first clock of a Read cycle when emerging from a deselected
state.
Input-
Synchronous
Input-
Synchronous
Input-
Synchronous
Advance Input Signal, sampled on the rising edge of CLK. When asserted, it automatically incre-
ments the address in a burst cycle.
Address Strobe from Processor, sampled on the rising edge of CLK. When asserted LOW, A
[16:0]
is captured in the address registers. A
[1:0]
are also loaded into the burst counter. When ADSP and
ADSC are both asserted, only ADSP is recognized. ASDP is ignored when CE
1
is deserted HIGH.
Address Strobe from Controller, sampled on the rising edge of CLK. When asserted LOW, A
[16:0]
is captured in the address registers. A
[1:0]
are also loaded into the burst counter. When ADSP and
ADSC are both asserted, only ADSP is recognized.
ADV
ADSP
ADSC
ZZ
Input-
ZZ “sleep” Input. This active HIGH input places the device in a non-time-critical “sleep” condition
Asynchronous with data integrity preserved. Leaving ZZ floating or NC will default the device into an active state.
ZZ has an internal pull down.
I/O-
Synchronous
Bidirectional Data I/O Lines. As inputs, they feed into an on-chip data register that is triggered by
the rising edge of CLK. As outputs, they deliver the data contained in the memory location specified
by A
[16:0]
during the previous clock rise of the Read cycle. The direction of the pins is controlled
by OE. When OE is asserted LOW, the pins behave as outputs. When HIGH, DQ
[31:0]
are placed
in a three-state condition.
Ground for the core of the device. Should be connected to ground of the system.
Power supply for the I/O circuitry. Should be connected to a 3.3V or 2.5V power supply.
Ground for the I/O circuitry. Should be connected to ground of the system.
Selects Burst Order. When tied to GND selects linear burst sequence. When tied to V
DDQ
or left
floating selects interleaved burst sequence. This is a strap pin and should remain static during
device operation. When left floating or NC, defaults to interleaved burst order. Mode pin has an
internal pull up.
No Connects.
Do Not Use pins. These pins could be left floating or tied to GND.
DQ
[31:0]
V
DD
V
SS
V
DDQ
V
SSQ
MODE
Power Supply Power supply inputs to the core of the device. Should be connected to 3.3V power supply.
Ground
I/O Power
Supply
I/O Ground
Input-
Static
NC
DNU
–
-
Document #: 38-05141 Rev. *A
Page 4 of 17
CY7C1339B
Introduction
Functional Overview
All synchronous inputs pass through input registers controlled
by the rising edge of the clock. All data outputs pass through
output registers controlled by the rising edge of the clock.
Maximum access delay from the clock rise (t
CO
) is 3.5 ns
(166-MHz device).
The CY7C1339B supports secondary cache in systems
utilizing either a linear or interleaved burst sequence. The
interleaved burst order supports Pentium and i486
processors. The linear burst sequence is suited for processors
that utilize a linear burst sequence. The burst order is user
selectable, and is determined by sampling the MODE input.
Accesses can be initiated with either the Processor Address
Strobe (ADSP) or the Controller Address Strobe (ADSC).
Address advancement through the burst sequence is
controlled by the ADV input. A two-bit on-chip wraparound
burst counter captures the first address in a burst sequence
and automatically increments the address for the rest of the
burst access.
Byte Write operations are qualified with the Byte Write Enable
(BWE) and Byte Write Select (BW
[3:0]
) inputs. A Global Write
Enable (GW) overrides all Byte Write inputs and writes data to
all four bytes. All writes are simplified with on-chip
synchronous self-timed Write circuitry.
Three synchronous Chip Selects (CE
1
, CE
2
, CE
3
) and an
asynchronous Output Enable (OE) provide for easy bank
selection and output three-state control. ADSP is ignored if
CE
1
is HIGH.
Single Read Accesses
This access is initiated when the following conditions are
satisfied at clock rise: (1) ADSP or ADSC is asserted LOW, (2)
CE
1
, CE
2
, CE
3
are all asserted active, and (3) the Write
signals (GW, BWE) are all deserted HIGH. ADSP is ignored if
CE
1
is HIGH. The address presented to the address inputs
(A
[16:0]
) is stored into the address advancement logic and the
Address Register while being presented to the memory core.
The corresponding data is allowed to propagate to the input of
the Output Registers. At the rising edge of the next clock the
data is allowed to propagate through the output register and
onto the data bus within 3.5 ns (166-MHz device) if OE is
active LOW. The only exception occurs when the SRAM is
emerging from a deselected state to a selected state, its
outputs are always three-stated during the first cycle of the
access. After the first cycle of the access, the outputs are
controlled by the OE signal. Consecutive single Read cycles
are supported. Once the SRAM is deselected at clock rise by
the chip select and either ADSP or ADSC signals, its output
will three-state immediately.
Single Write Accesses Initiated by ADSP
This access is initiated when both of the following conditions
are satisfied at clock rise: (1) ADSP is asserted LOW, and
(2) CE
1
, CE
2
, CE
3
are all asserted active. The address
presented to A
[16:0]
is loaded into the address register and the
address advancement logic while being delivered to the RAM
core. The Write signals (GW, BWE, and BW
[3:0]
) and ADV
inputs are ignored during this first cycle.
ADSP-triggered Write accesses require two clock cycles to
complete. If GW is asserted LOW on the second clock rise, the
data presented to the DQ
[31:0]
inputs is written into the corre-
sponding address location in the RAM core. If GW is HIGH,
then the Write operation is controlled by BWE and BW
[3:0]
signals. The CY7C1339B provides Byte Write capability that
is described in the Write Cycle Descriptions table. Asserting
the Byte Write Enable input (BWE) with the selected Byte
Write (BW
[3:0]
) input will selectively write to only the desired
bytes. Bytes not selected during a Byte Write operation will
remain unaltered. A synchronous self-timed Write mechanism
has been provided to simplify the Write operations.
Because the CY7C1339B is a common I/O device, the Output
Enable (OE) must be deserted HIGH before presenting data
to the DQ
[31:0]
inputs. Doing so will three-state the output
drivers. As a safety precaution, DQ
[31:0]
are automatically
three-stated whenever a Write cycle is detected, regardless of
the state of OE.
Single Write Accesses Initiated by ADSC
ADSC Write accesses are initiated when the following condi-
tions are satisfied: (1) ADSC is asserted LOW, (2) ADSP is
deserted HIGH, (3) CE
1
, CE
2
, CE
3
are all asserted active, and
(4) the appropriate combination of the Write inputs (GW, BWE,
and BW
[3:0]
) are asserted active to conduct a Write to the
desired byte(s). ADSC-triggered Write accesses require a
single clock cycle to complete. The address presented to
A
[16:0]
is loaded into the address register and the address
advancement logic while being delivered to the RAM core. The
ADV input is ignored during this cycle. If a global Write is
conducted, the data presented to the DQ
[31:0]
is written into the
corresponding address location in the RAM core. If a Byte
Write is conducted, only the selected bytes are written. Bytes
not selected during a Byte Write operation will remain
unaltered. A synchronous self-timed Write mechanism has
been provided to simplify the Write operations.
Because the CY7C1339B is a common I/O device, the Output
Enable (OE) must be deserted HIGH before presenting data
to the DQ
[31:0]
inputs. Doing so will three-state the output
drivers. As a safety precaution, DQ
[31:0]
are automatically
three-stated whenever a Write cycle is detected, regardless of
the state of OE.
Burst Sequences
The CY7C1339B provides a two-bit wraparound counter, fed
by A
[1:0]
, that implements either an interleaved or linear burst
sequence. The interleaved burst sequence is designed specif-
ically to support Intel Pentium applications. The linear burst
sequence is designed to support processors that follow a
linear burst sequence. The burst sequence is user selectable
through the MODE input.
Asserting ADV LOW at clock rise will automatically increment
the burst counter to the next address in the burst sequence.
Both Read and Write burst operations are supported.
Interleaved Burst Sequence
First
Address
A
[1:0]
00
01
10
11
01
00
11
10
Second
Address
A
[1:0]
10
11
00
01
Third
Address
A
[1:0]
11
10
01
00
Page 5 of 17
Fourth
Address
A
[1:0]
Document #: 38-05141 Rev. *A
Talking
京公网安备 11010802033920号
EEWORLD
