RFS1317-565KL: DescriptionGeneral Purpose Inductor, 5600uH, 10%, 1 Element, Ferrite-Core, ROHS COMPLIANT; CategoryPassive components inductor; File Size157KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

RFS1317-565KL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RFS1317-565KL	-	-	View	Buy Now

RFS1317-565KL Overview

General Purpose Inductor, 5600uH, 10%, 1 Element, Ferrite-Core, ROHS COMPLIANT

RFS1317-565KL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	6352
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	6352
structure	Cylindrical
core material	Ferrite
DC Resistance	4.03 Ω
Nominal inductance(L)	5600 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.8 mm
Lead length	4.8 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package length	16 mm
Package form	Radial
Package width	13.3 mm
method of packing	Tray
Maximum rated current	0.46 A
Guideline	AEC-Q200
self resonant frequency	0.32 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag) - Matte Tin (Sn) - Copper (Cu)
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.1 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

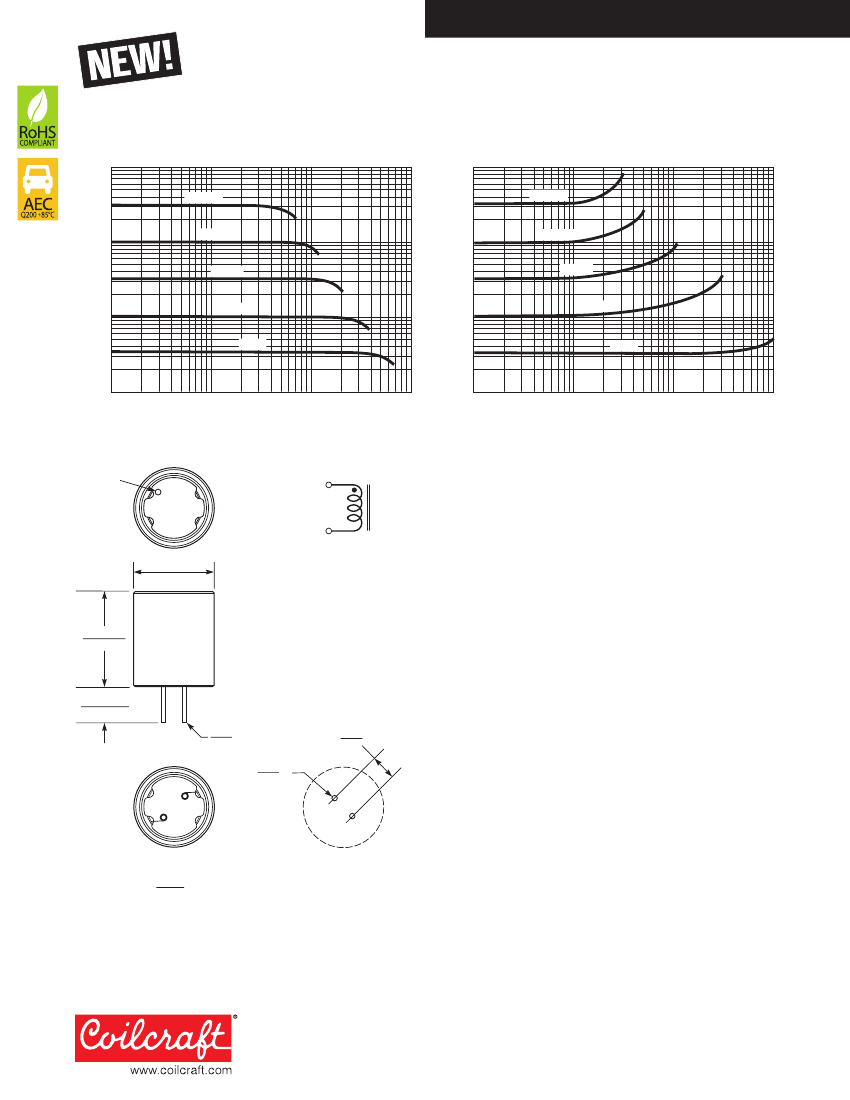

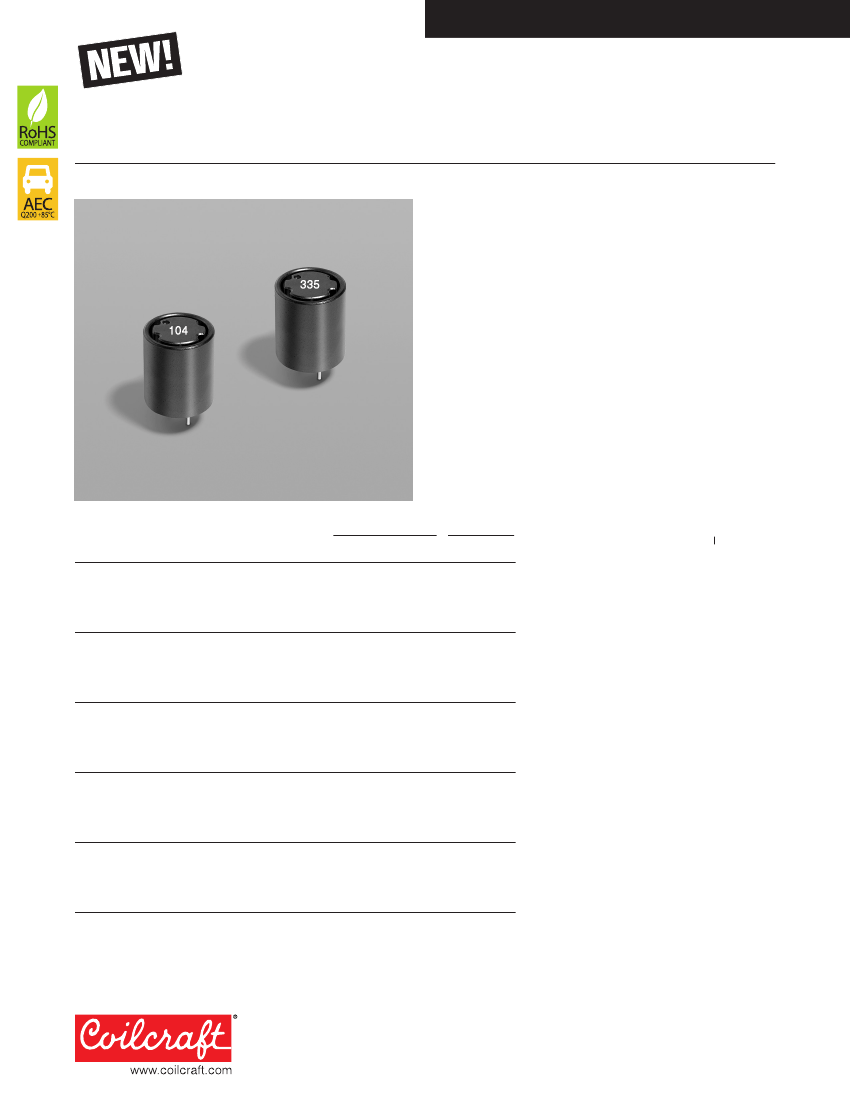

Document 884-1

Shielded Power Inductors – RFS1317

• Low cost, high current power inductors

• 27 µH to 10 mH inductance range

Core material

Ferrite

Terminations

Tin-silver over tin over copper over steel. Other

terminations available at additional cost.

Weight

9.1 – 9.4 g

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +85°C.

Tray packaging: –40°C to +80°C

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

144 parts per tray

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pd

Part

Inductance

2

1

number

±10%

RFS1317-273KL

27 µH

RFS1317-333KL

33 µH

RFS1317-473KL

47 µH

RFS1317-683KL

68 µH

RFS1317-823KL

82 µH

RFS1317-104KL 100 µH

RFS1317-124KL 120 µH

RFS1317-154KL 150 µH

RFS1317-184KL 180 µH

RFS1317-224KL 220 µH

RFS1317-274KL 270 µH

RFS1317-334KL 330 µH

RFS1317-394KL 390 µH

RFS1317-474KL 470 µH

RFS1317-564KL 560 µH

RFS1317-684KL 680 µH

RFS1317-824KL 820 µH

RFS1317-105KL

1.0 mH

RFS1317-125KL

1.2 mH

RFS1317-155KL

1.5 mH

RFS1317-185KL

1.8 mH

RFS1317-225KL

2.2 mH

RFS1317-275KL

2.7 mH

RFS1317-335KL

3.3 mH

RFS1317-395KL

3.9 mH

RFS1317-475KL

4.7 mH

RFS1317-565KL

5.6 mH

RFS1317-685KL

6.8 mH

RFS1317-825KL

8.2 mH

RFS1317-106KL

10 mH

DCR

max

(Ohms)

0.033

0.050

0.055

0.068

0.071

0.079

0.110

0.144

0.172

0.239

0.263

0.286

0.317

0.409

0.524

0.617

0.834

1.02

1.19

1.36

1.49

2.01

2.22

2.38

3.38

3.68

4.03

5.43

5.88

6.55

Isat

(A)

SRF

3

typ

10% 20% 30%

(MHz) drop drop drop

20.95

5.2

6.4

7.2

18.18

4.5

5.7

6.4

12.93

3.9

4.7

5.4

6.49

3.1

3.8

4.3

5.03

2.8

3.6

4.0

3.45

2.6

3.2

3.6

3.18

2.4

2.9

3.2

2.92

2.2

2.6

2.9

2.27

1.9

2.4

2.7

2.03

1.7

2.1

2.4

1.66

1.7

1.9

2.2

1.55

1.5

1.7

2.0

1.39

1.3

1.6

1.8

1.20

1.3

1.4

1.6

1.12

1.1

1.3

1.5

0.955 1.0

1.2

1.4

0.827 0.89 1.0

1.2

0.725 0.83 1.0

1.1

0.647 0.72 0.94 1.0

0.599 0.66 0.82 0.91

0.566 0.60 0.78 0.87

0.496 0.56 0.69 0.77

0.439 0.51 0.62 0.70

0.435 0.46 0.61 0.68

0.373 0.41 0.51 0.57

0.352 0.38 0.48 0.54

0.320 0.34 0.44 0.49

0.288 0.32 0.40 0.45

0.274 0.31 0.39 0.44

0.254 0.28 0.33 0.37

4

Irms

(A)

5

20°C 40°C

rise rise

4.10 5.70

3.55 4.85

3.20 4.50

3.00 4.05

2.75 3.90

2.65 3.65

2.20 3.15

2.05 2.90

1.85 2.65

1.50 2.05

1.40 1.90

1.35 1.85

1.10 1.60

0.95 1.35

0.86 1.20

0.75 1.04

0.68 0.97

0.60 0.81

0.59 0.78

0.54 0.74

0.45 0.62

0.43 0.61

0.41 0.57

0.34 0.49

0.33 0.46

0.32 0.46

0.26 0.38

0.25 0.35

0.24 0.35

1. When ordering, please specify

termination

code:

RFS1317-106L

Termination: L

= Tin-silver over tin over copper

over steel.

Special order: T

= RoHS

tin-silver-copper (95.5/4/0.5)

or

S

= non-RoHS tin-lead

(63/37).

Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc on

an Agilent/HP 4284A LCR-meter or equivalent.

SRF measured using Agilent/HP 4191A or equil-

valent.

DC current that causes the specified inductance

drop from its value without current..

Current that causes the specified temperature

rise from 25°C ambient.

2.

3.

4.

5.

6. Electrical specifications at 25°C.

US

+1-847-639-6400 sales@coilcraft.com

UK

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 884-1

Revised 08/06/13

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
