2730-M-4811-B-000500 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2730-M-4811-B-000500

Preview

2730-M-4811-B-000500: DescriptionMains Power Connector, 2.5A, 250VAC, Male, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size271KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

2730-M-4811-B-000500 Overview

Mains Power Connector, 2.5A, 250VAC, Male, Plug, ROHS COMPLIANT

2730-M-4811-B-000500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: IEC/EN 60320-1/C, UL 498, CSA C22.2, VDE
Body/casing type	PLUG
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	2.5A, 250VAC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Options	GENERAL PURPOSE
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

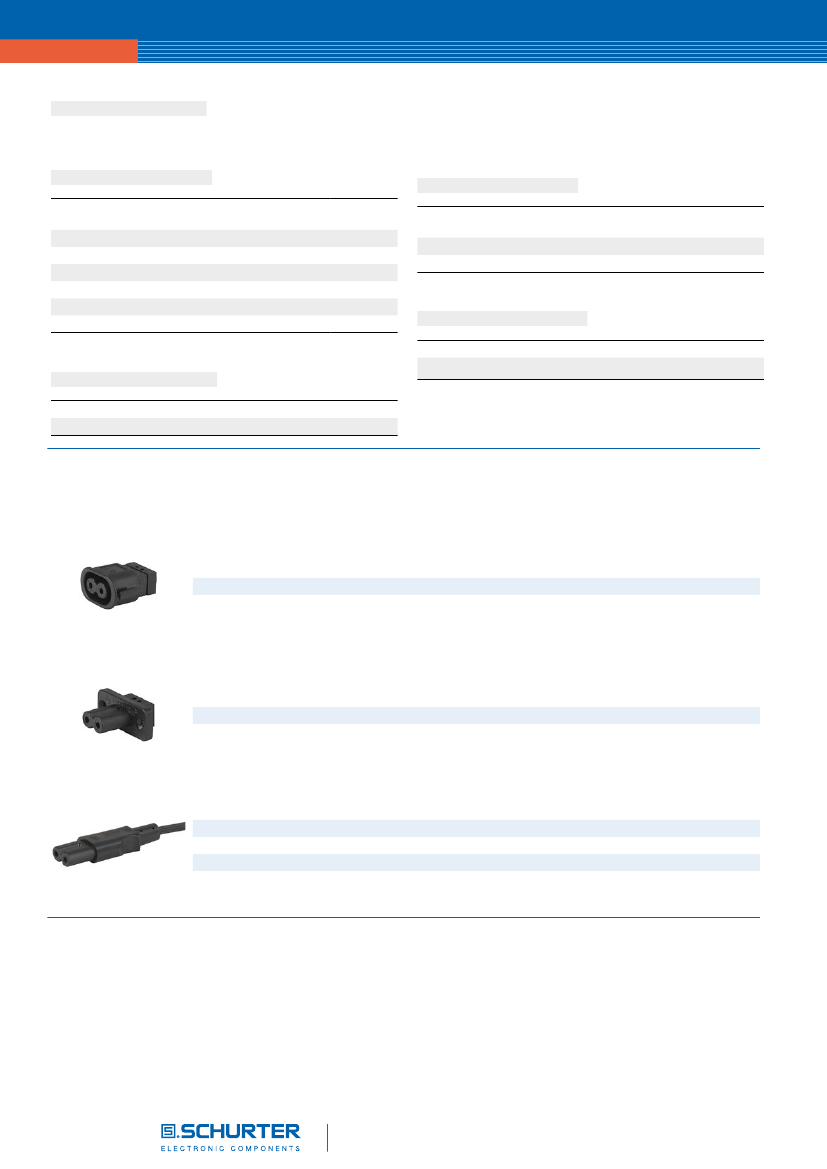

Cord Sets

www.schurter.com/pg07_2

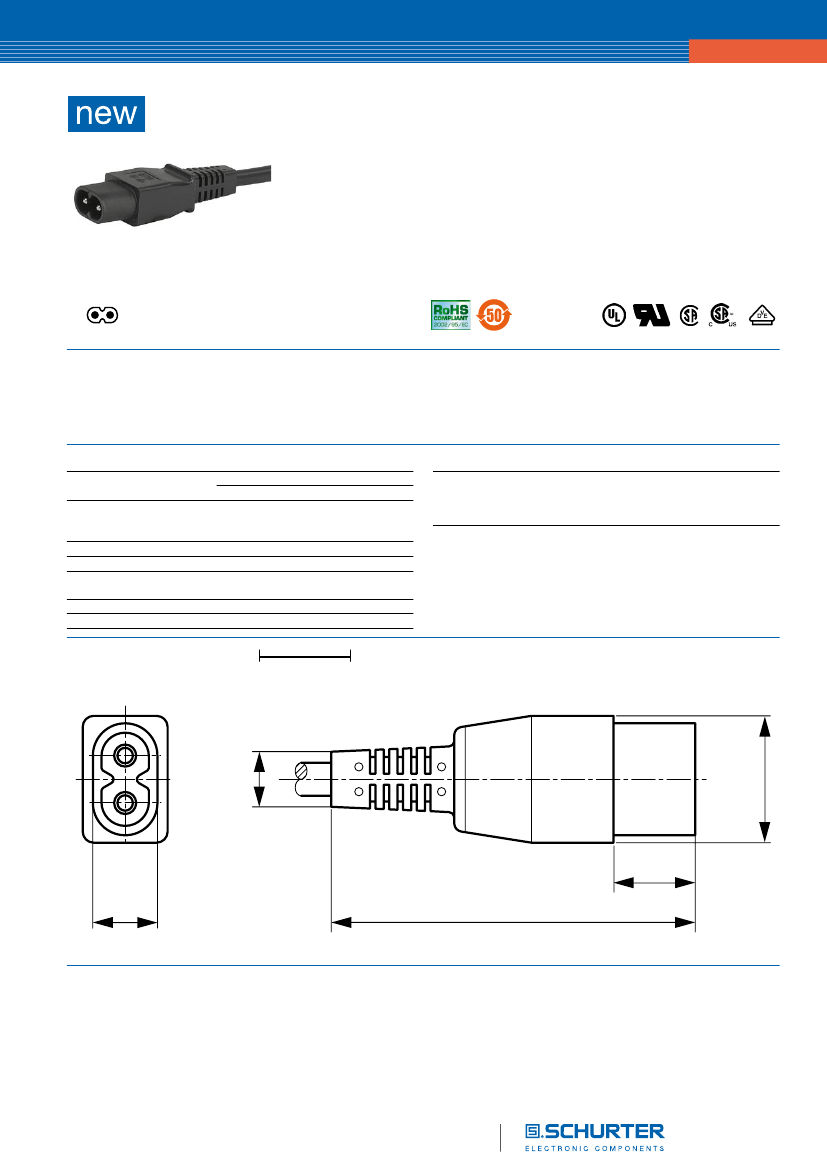

Power Cord with IEC Appliance Plug C, straight, 70°C

2730

C

70° C

Description

Approvals

Interconnection Cord, Protection class II, Pin temperature 70 °C, Cable

- VDE License Number: 40005801

- UL License Number: E45116

- CSA License Number: 1020530

Weblinks

Approvals, RoHS, CHINA-RoHS, e-Store, SCHURTER-Stock-Check,

Distributor-Stock-Check, Product Configurator

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

2.5 A / 250 VAC; 50 Hz

2.5 A / 250 VAC; 60 Hz

> 2 kVDC between L-N

> 2 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class II acc. to IEC 61140

moulded

black or grey

Length

23 mm

Appliance-Inlet/-Outlet

C acc. to IEC/EN 60320-1

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C,

2.5 A, Protection class II

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Material: Housing

Dimensions

10

14.8

11.7

66

Appliance Inlet

23
