MIC4428AJB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> MIC4428AJB

MIC4428AJB: DescriptionBuffer/Inverter Based MOSFET Driver, 1.5A, BICMOS, CDIP8, CERDIP-8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size188KB，6 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

MIC4428AJB Overview

Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS, CDIP8, CERDIP-8

MIC4428AJB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micrel ( Microchip )
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
high side driver	NO
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
length	9.652 mm
Number of functions	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	TOTEM-POLE
Nominal output peak current	1.5 A
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	4.5/18 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum slew rate	8 mA
Maximum supply voltage	18 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	0.06 µs
connection time	0.06 µs
width	7.62 mm

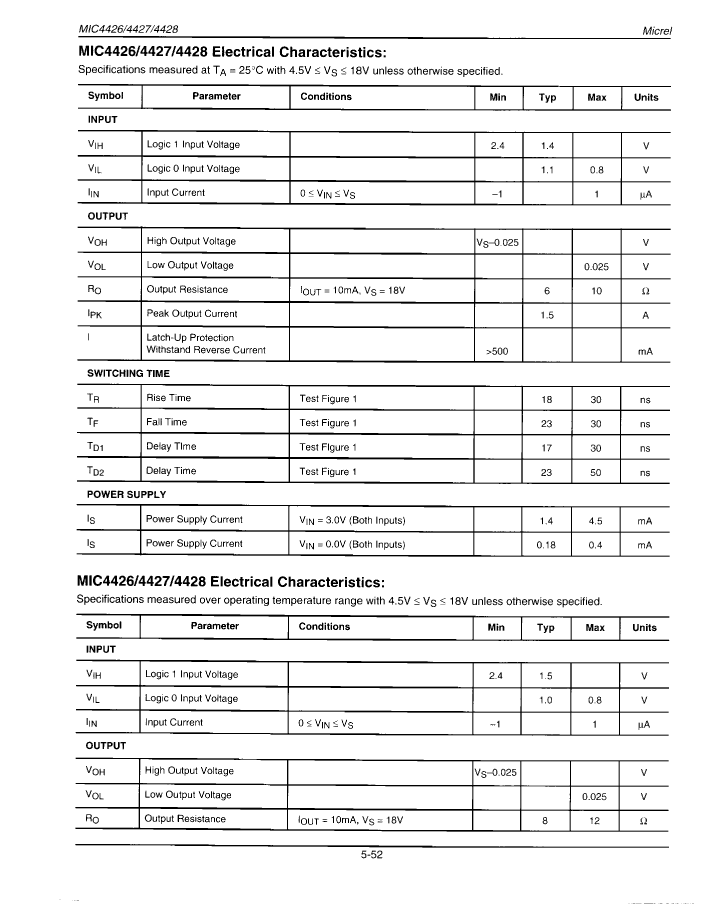

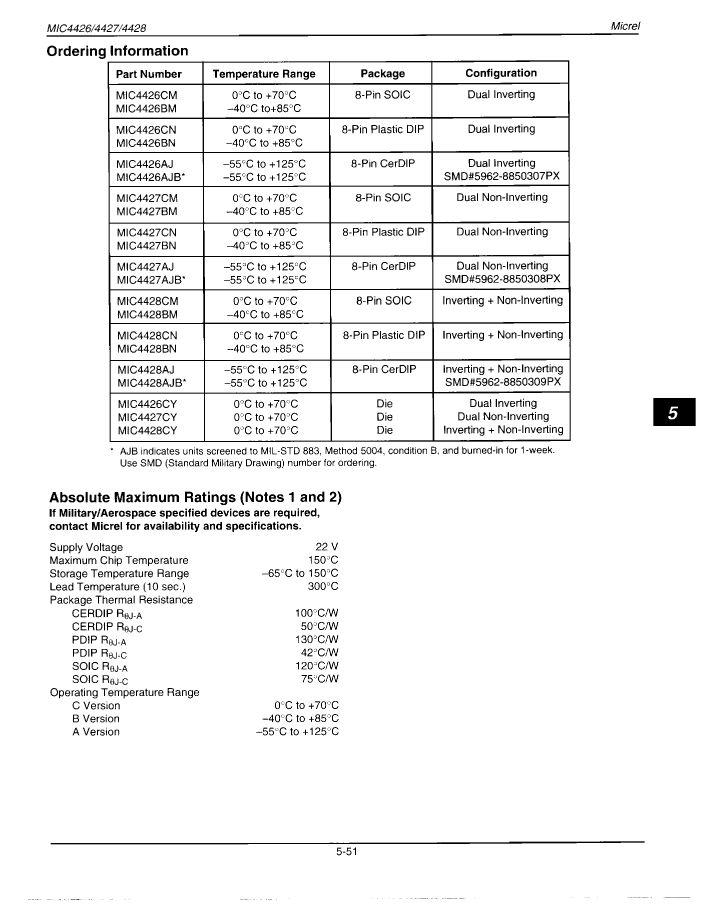

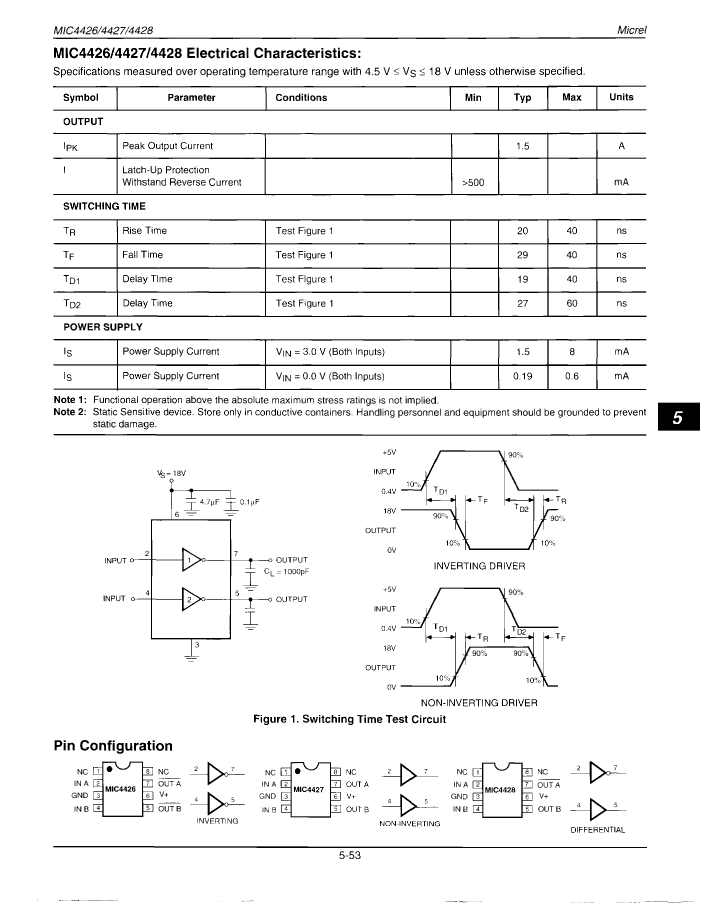

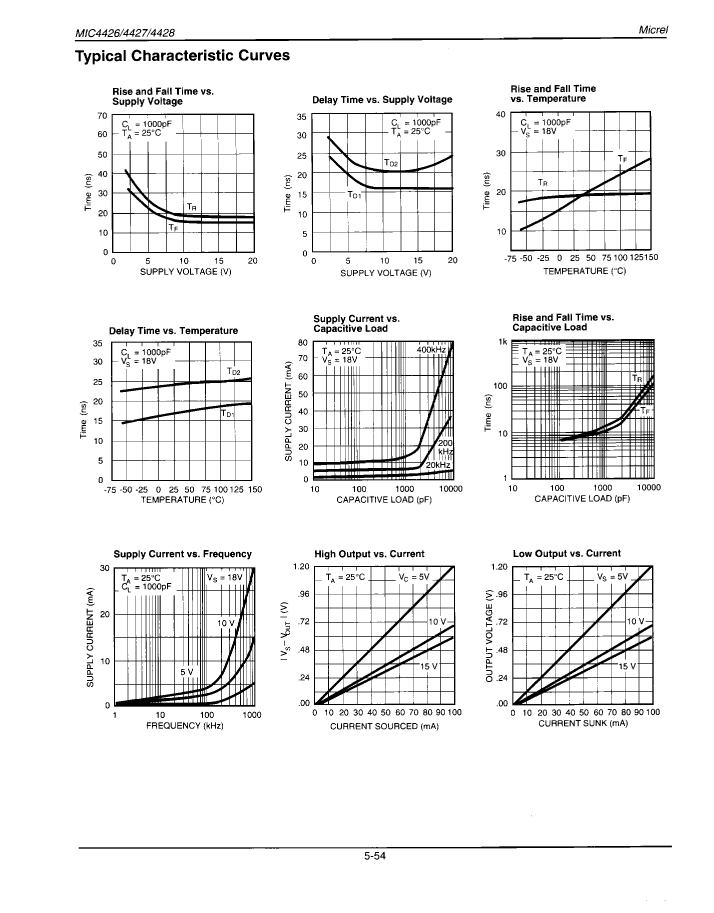

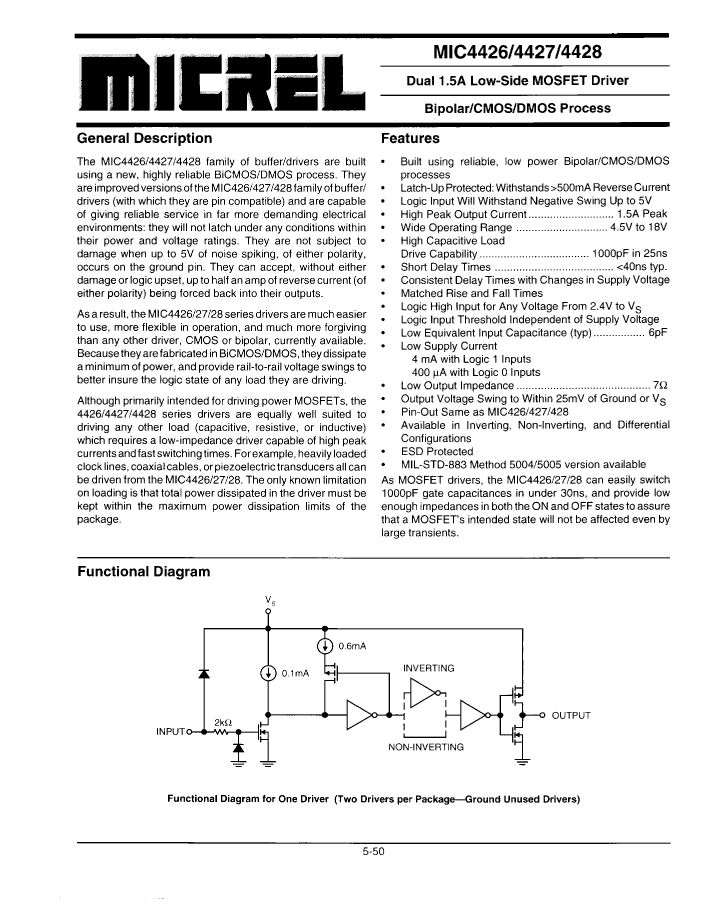

Preview

Download Datasheet

View All

MIC4428AJB Related Products

	MIC4428AJB	MIC4426AJB	MIC4427AJB
Description	Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS, CDIP8, CERDIP-8	Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS, CDIP8, CERDIP-8	Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS, CDIP8, CERDIP-8
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Micrel ( Microchip )	Micrel ( Microchip )	Micrel ( Microchip )
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	CERDIP-8
Contacts	8	8	8
Reach Compliance Code	compli	compliant	unknown
ECCN code	EAR99	EAR99	EAR99
high side driver	NO	-	NO
Input properties	STANDARD	-	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER	-	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-GDIP-T8	-	R-GDIP-T8
JESD-609 code	e0	-	e0
length	9.652 mm	-	9.652 mm
Number of functions	2	-	2
Number of terminals	8	-	8
Maximum operating temperature	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-	-55 °C
Output characteristics	TOTEM-POLE	-	TOTEM-POLE
Nominal output peak current	1.5 A	-	1.5 A
Output polarity	COMPLEMENTARY	-	TRUE
Package body material	CERAMIC, GLASS-SEALED	-	CERAMIC, GLASS-SEALED
encapsulated code	DIP	-	DIP
Encapsulate equivalent code	DIP8,.3	-	DIP8,.3
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	-	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
power supply	4.5/18 V	-	4.5/18 V
Certification status	Not Qualified	-	Not Qualified
Filter level	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B
Maximum seat height	5.08 mm	-	5.08 mm
Maximum slew rate	8 mA	-	8 mA
Maximum supply voltage	18 V	-	18 V
Minimum supply voltage	4.5 V	-	4.5 V
Nominal supply voltage	5 V	-	5 V
surface mount	NO	-	NO
technology	BICMOS	-	BICMOS
Temperature level	MILITARY	-	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE
Terminal pitch	2.54 mm	-	2.54 mm
Terminal location	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
Disconnect time	0.06 µs	-	0.06 µs
connection time	0.06 µs	-	0.04 µs
width	7.62 mm	-	7.62 mm
