1SMB8.0CALEADFREE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1SMB8.0CALEADFREE

Preview

1SMB8.0CALEADFREE: DescriptionTrans Voltage Suppressor Diode, 600W, 8V V(RWM), Bidirectional, 1 Element, Silicon, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size777KB，3 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

1SMB8.0CALEADFREE Overview

Trans Voltage Suppressor Diode, 600W, 8V V(RWM), Bidirectional, 1 Element, Silicon, SMB, 2 PIN

1SMB8.0CALEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Other features	UL RECOGNIZED
Maximum breakdown voltage	10.23 V
Minimum breakdown voltage	8.89 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	BIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	8 V
surface mount	YES
technology	AVALANCHE
Terminal surface	MATTE TIN (315)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

Preview

Download Datasheet

View All

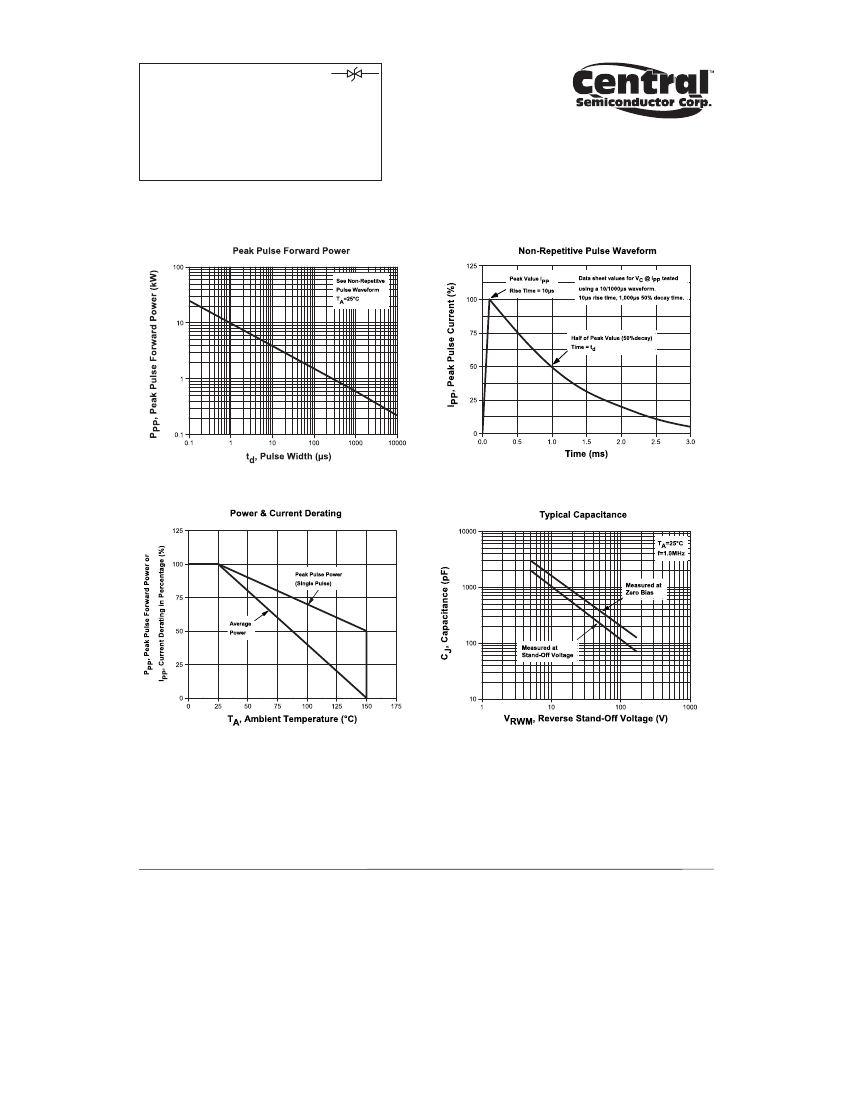

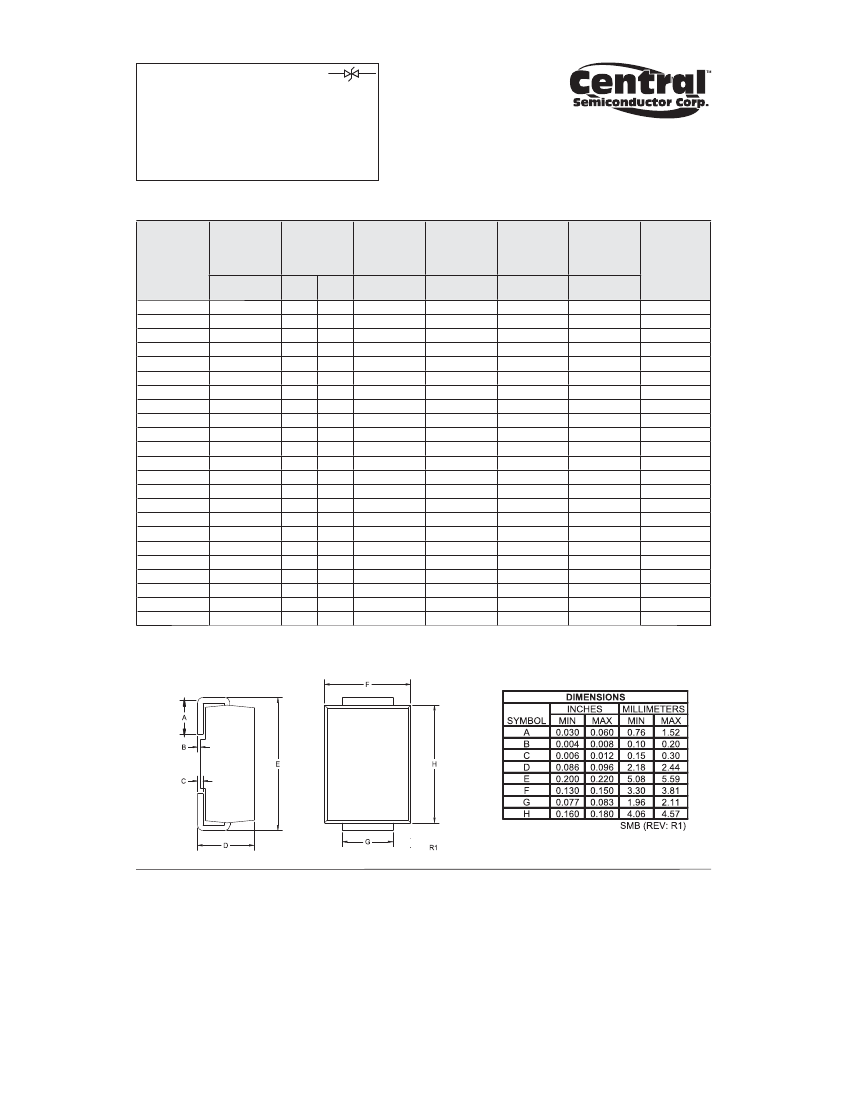

1SMB5.0CA

THRU

1SMB170CA

SURFACE MOUNT

BI-DIRECTIONAL

GLASS PASSIVATED JUNCTION

SILICON TRANSIENT

VOLTAGE SUPPRESSOR

600 WATTS, 5.0 THRU 170 VOLTS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR 1SMB5.0CA

Series types are Surface Mount Bi-Directional Glass

Passivated Junction Transient Voltage Suppressors

designed to protect voltage sensitive components from

high voltage transients.

THIS DEVICE IS MANUFACTURED WITH A GLASS

PASSIVATED CHIP FOR OPTIMUM RELIABILITY.

Note: For Uni-directional devices, please refer to the

1SMB5.0A Series data sheet.

MARKING CODE: SEE ELECTRICAL

CHARACTERISTICS TABLE

SMB CASE

• This series is UL listed, UL file number E130224

MAXIMUM RATINGS:

(TA=25°C unless otherwise noted)

Peak Power Dissipation (Note 1)

Operating and Storage Junction Temperature

SYMBOL

PPK

TJ, Tstg

MAXIMUM

REVERSE

LEAKAGE

CURRENT

IR @ VRWM

µA

1600

1000

400

200

100

20

10

5.0

600

-65 to +150

UNITS

W

°C

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

REVERSE

STAND-OFF

VOLTAGE

TYPE

VRWM

V

1SMB5.0CA

1SMB6.0CA

1SMB6.5CA

1SMB7.0CA

1SMB7.5CA

1SMB8.0CA

1SMB8.5CA

1SMB9.0CA

1SMB10CA

1SMB11CA

1SMB12CA

1SMB13CA

1SMB14CA

1SMB15CA

1SMB16CA

1SMB17CA

1SMB18CA

1SMB20CA

1SMB22CA

1SMB24CA

1SMB26CA

1SMB28CA

1SMB30CA

5.0

6.0

6.5

7.0

7.5

8.0

8.5

9.0

10

11

12

13

14

15

16

17

18

20

22

24

26

28

30

BREAKDOWN

VOLTAGE

VBR @ IT

MIN

MAX

V

6.40

6.67

7.22

7.78

8.33

8.89

9.44

10

11.1

12.2

13.3

14.4

15.6

16.7

17.8

18.9

20

22.2

24.4

26.7

28.9

31.1

33.3

7.25

7.67

8.30

8.95

9.58

10.23

10.82

11.5

12.8

14

15.3

16.5

17.9

19.2

20.5

21.7

23.3

25.5

28

30.7

33.2

35.8

38.3

TEST

CURRENT

IT

mA

10

1.0

MAXIMUM

CLAMPING

VOLTAGE

VC @ IPP

V

9.2

10.3

11.2

12

12.9

13.6

14.4

15.4

17

18.2

19.9

21.5

23.2

24.4

26

27.6

29.2

32.4

35.5

38.9

42.1

45.4

48.4

PEAK

PULSE

CURRENT

(Note 1)

IPP

A

65.2

58.3

53.6

50

46.5

44.1

41.7

39

35.3

33

30.2

27.9

25.8

24

23.1

21.7

20.5

18.5

16.9

15.4

14.2

13.2

12.4

CKEC

CKGC

CKKC

CKMC

CKPC

CKRC

CKTC

CKVC

CKXC

CKZC

CLEC

CLGC

CLKC

CLMC

CLPC

CLRC

CLTC

CLVC

CLXC

CLZC

CMEC

CMGC

CMKC

MARKING

CODE

Notes: (1) Non-repetitive 10x1,000µs pulse.
