2-1586496-6 datasheet, PDF - EEWORLD Datasheet

2-1586496-6: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,16 CONTACTS,SKT,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE; CategoryThe connector The connector; File Size145KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

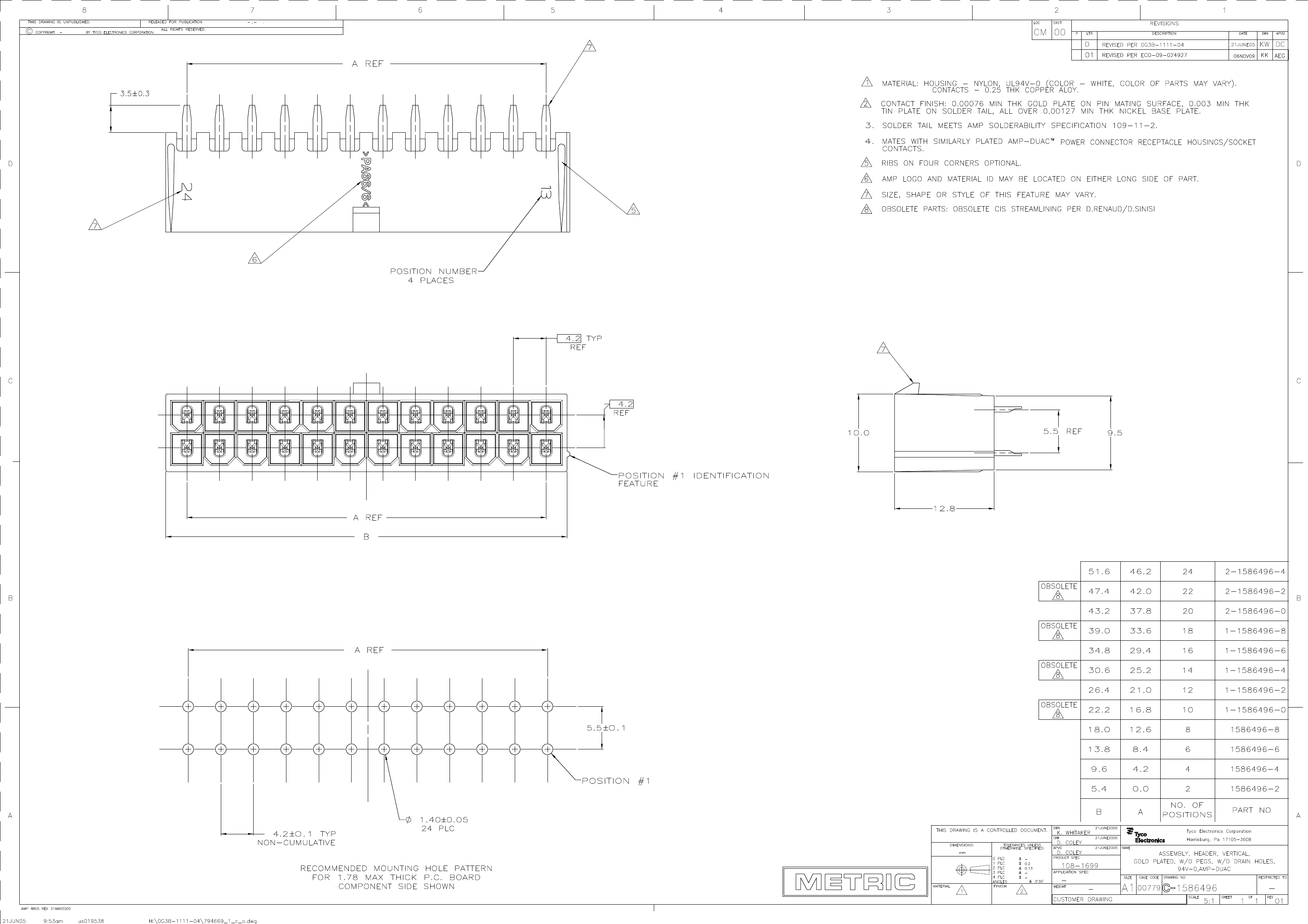

2-1586496-6 Overview

HEADER CONNECTOR,PCB MNT,PLUG,16 CONTACTS,SKT,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE

Parameter Name	Attribute value
Maker	Vishay
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.394 inch
subject depth	0.504 inch
body length	1.37 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Dielectric withstand voltage	1500VAC V
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON
Manufacturer's serial number	1586496
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	9 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	16
Evacuation force-minimum value	.5004 N
Base Number Matches	1
