Restricted to:
1906012
General Release
L
0.25m Max
0.25m Max
Label 1
Label 2
Connector(s): LC-Duplex Secure
Mode: MM
Housing Color: Red
Geom. Spec: N/A
Number of Fibers:
Jacket Diameter:
Jacket Color:
2
Mode: MM
2.0 mm
Orange
50/125
Connector(s): LC-Duplex
Mode: MM
Housing Color: Beige
Geom. Spec: N/A
A
B
-
-
-
-
B
A
FiberType:
LC strain relief - 1.6 to 2.0 mm cable
Color: Beige/Beige
LC strain relief - 1.6 to 2.0 mm cable
Color: Beige/Beige
Notes:
1 Product and Processing must meet requirements of Tyco
Electronics Standard 230-702
2 Includes dust caps (not shown on print).
Cable Assy Configurator
-
-
Tyco Electronics, Inc.
Harrisburg, PA 17105-3608
meters
Cable Assy Configurator
-
-
-
-
-
Refer to Engineering Change
CE
A
Rev Per EC#
RELEASE
5/23/2006
-

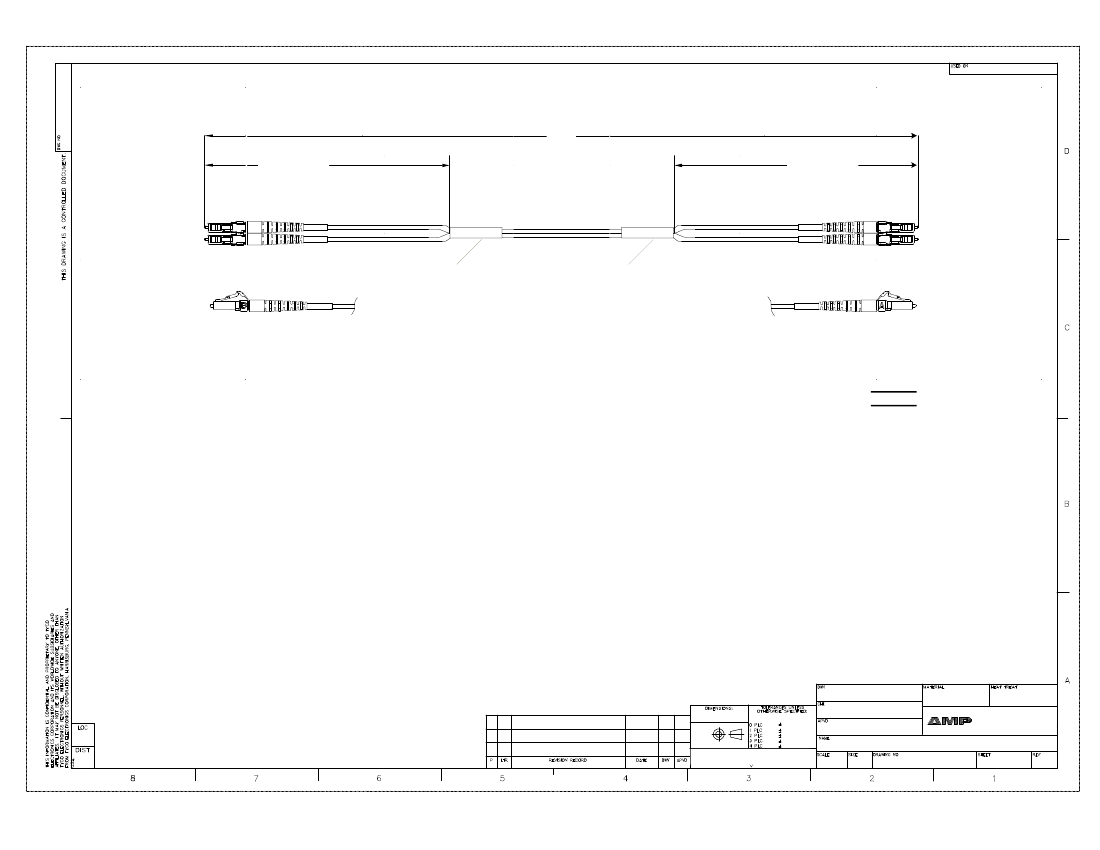

FO C/A - 2 fiber, 2mm, 50/125, OFNR (Riser) jacket, LC-Duplex
Secure to LC-Duplex
16
CAC Customer Layout Rev: D
Customer Print
NTS
A2
C- 1906012
1 of 3
A
LC-Duplex Secure, Red
Part #
0-1906012-1
0-1906012-2
0-1906012-3
0-1906012-4
0-1906012-5
0-1906012-6
0-1906012-7
0-1906012-8
0-1906012-9
1-1906012-0
1-1906012-1
1-1906012-2
1-1906012-3
1-1906012-4
1-1906012-5
1-1906012-6
1-1906012-7
1-1906012-8
1-1906012-9
2-1906012-0
2-1906012-1
2-1906012-2
2-1906012-3
2-1906012-4
2-1906012-5
2-1906012-6
2-1906012-7
2-1906012-8
2-1906012-9
3-1906012-0
3-1906012-1
3-1906012-2
3-1906012-3
3-1906012-4
3-1906012-5
3-1906012-6
3-1906012-7
3-1906012-8
3-1906012-9
4-1906012-0
5-1906012-0
L (meters)
0.950 - 1.050
1.950 - 2.050
2.950 - 3.050
3.920 - 4.080
4.920 - 5.080
5.920 - 6.080
6.920 - 7.080
7.920 - 8.080
8.850 - 9.150
9.850 - 10.150
10.850 - 11.150
11.850 - 12.150
12.850 - 13.150
13.850 - 14.150
14.850 - 15.150
15.840 - 16.160
16.830 - 17.170
17.820 - 18.180
18.810 - 19.190
19.800 - 20.200
20.790 - 21.210
21.780 - 22.220
22.770 - 23.230
23.760 - 24.240
24.750 - 25.250
25.740 - 26.260
26.730 - 27.270
27.720 - 28.280
28.710 - 29.290
29.700 - 30.300
30.690 - 31.310
31.680 - 32.320
32.670 - 33.330
33.660 - 34.340
34.650 - 35.350
35.640 - 36.360
36.630 - 37.370
37.620 - 38.380
38.610 - 39.390
39.600 - 40.400
49.500 - 50.500
IL
(dB)
0.5
0.5
0.5
0.5
0.5
0.5
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.52
0.52
0.52
0.52
0.52
0.52
0.53
0.53
0.53
0.53
0.53
0.53
0.53
0.54
0.54
0.54
0.54
0.54
0.54
0.54
0.55
0.55
0.55
0.55
0.55
0.55
0.56
0.57
RL
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
(dB)
IL
LC-Duplex, Beige
(dB)
0.5
0.5
0.5
0.5
0.5
0.5
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.52
0.52
0.52
0.52
0.52
0.52
0.53
0.53
0.53
0.53
0.53
0.53
0.53
0.54
0.54
0.54
0.54
0.54
0.54
0.54
0.55
0.55
0.55
0.55
0.55
0.55
0.56
0.57
RL
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
(dB)
Cable Assy Configurator
-
-
Tyco Electronics, Inc.
Harrisburg, PA 17105-3608
meters
Cable Assy Configurator
-
-
-
-
-
Refer to Engineering Change
CE
A
Rev Per EC#
RELEASE
5/23/2006
-
FO C/A - 2 fiber, 2mm, 50/125, OFNR (Riser) jacket, LC-Duplex
Secure to LC-Duplex
16
CAC Customer Layout Rev: D
Customer Print
NTS
A2
C- 1906012
2 of 3
A

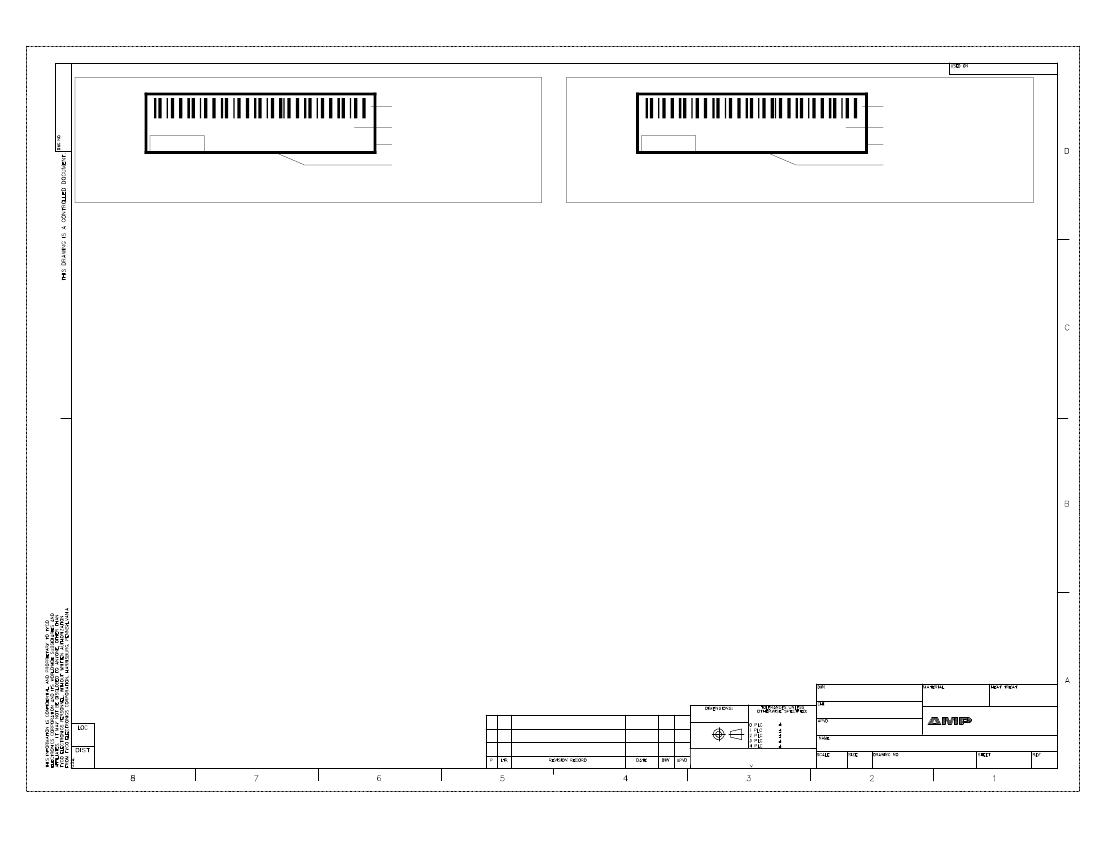

Label 1
Per specification 107-1645-1
Trace # - Bar Code
XXXXXXXXXXXXXXX
Tyco logo
Made in XXXX
X-XXXXXXX-X
Trace # - Human Readable
Part Number
Country of Origin
This label is used on all lengths on this drawing.
Label 2
Per specification 107-1645-1
Trace # - Bar Code
XXXXXXXXXXXXXXX
Tyco logo
Made in XXXX
X-XXXXXXX-X
Trace # - Human Readable
Part Number
Country of Origin
This label is used on all lengths on this drawing.
Cable Assy Configurator
-
-
Tyco Electronics, Inc.
Harrisburg, PA 17105-3608
meters
Cable Assy Configurator
-
-
-
-
-
Refer to Engineering Change
CE
A
Rev Per EC#
RELEASE
5/23/2006
-
FO C/A - 2 fiber, 2mm, 50/125, OFNR (Riser) jacket, LC-Duplex
Secure to LC-Duplex
16
CAC Customer Layout Rev: D
Customer Print
NTS
A2
C- 1906012
3 of 3
A
