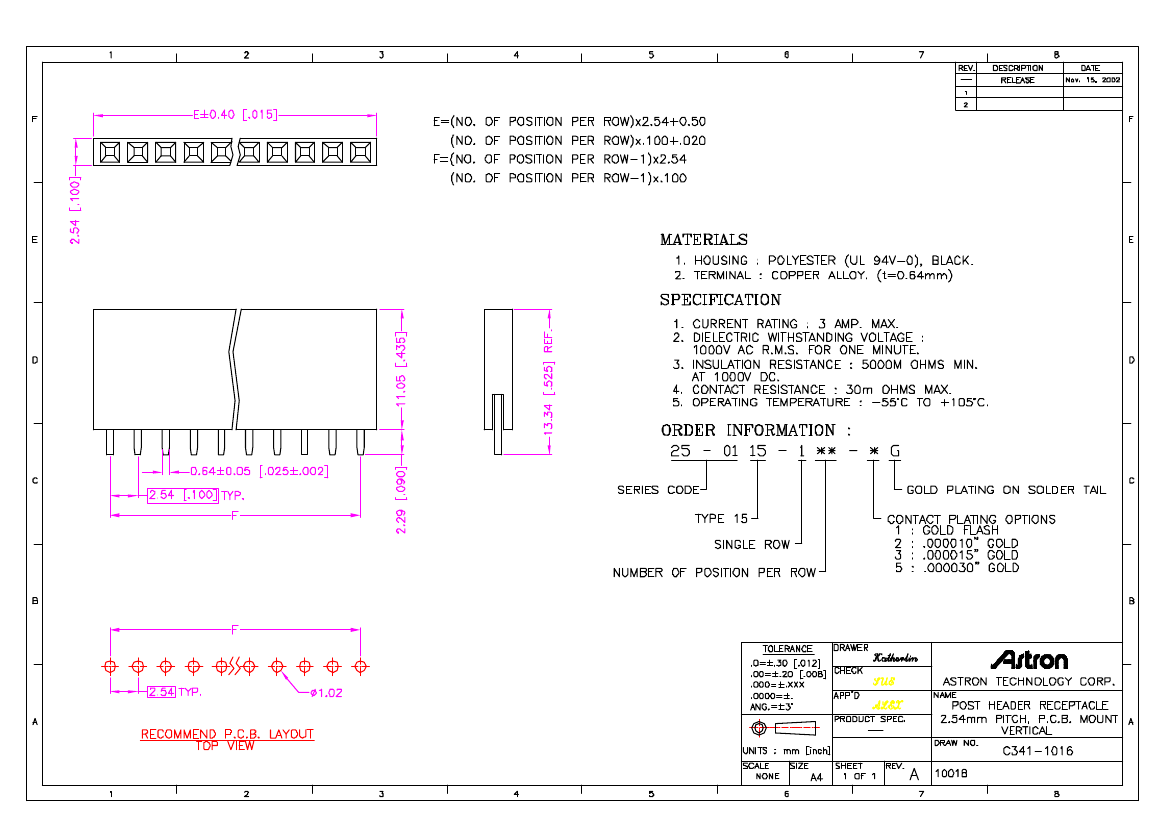

25-0115-102-5G: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size36KB，1 Pages; ManufacturerAstron; Websitehttp://www.astron.com.tw

Download Datasheet Parametric View All

25-0115-102-5G Overview

Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Maker	Astron
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.1 inch
subject depth	0.435 inch
body length	0.22 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
Manufacturer's serial number	25-0115
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1
