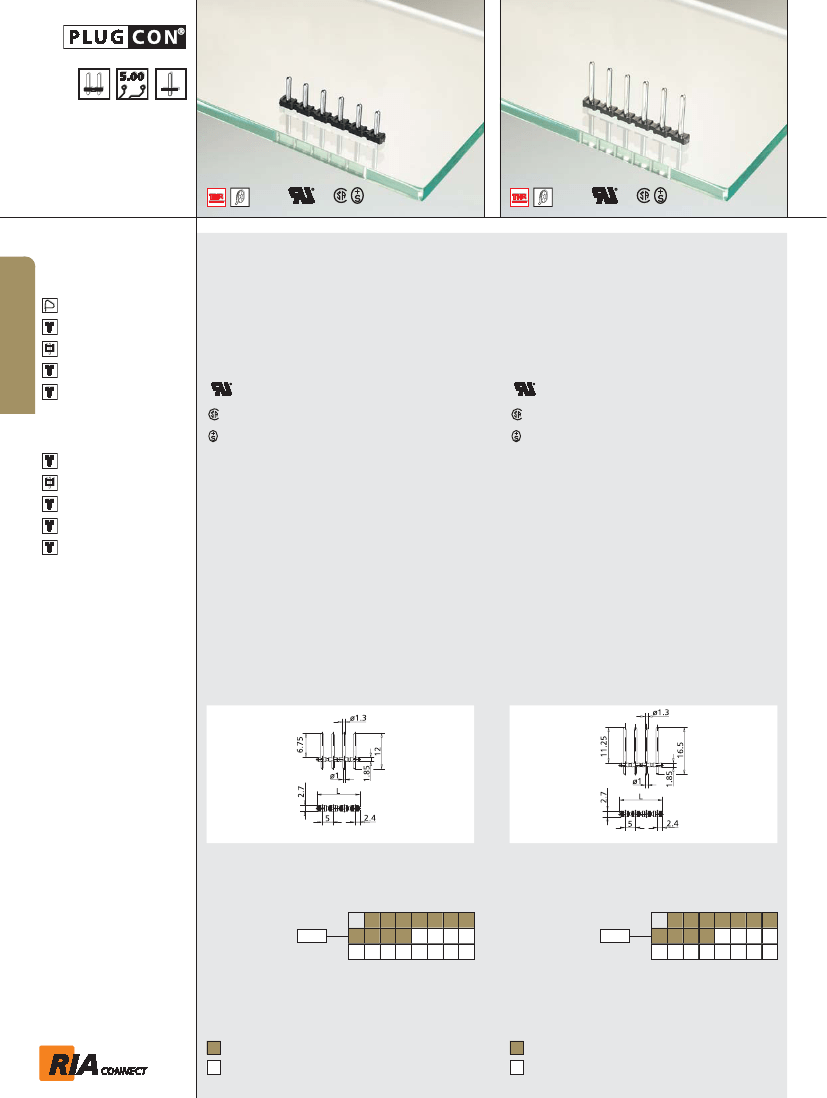

Terminal blocks
A
Type 017
Header, centerline 5 mm / 0.197 inches, vertical
mounting, designed for THR, optional Tape on Reel
packaging for automated processing, round contact
pins 1.3 mm / 0.051 inches
Type 027
Header, centerline 5 mm / 0.197 inches, vertical
mounting, designed for THR, optional Tape on Reel
packaging for automated processing, round contact
pins 1.3 mm / 0.051 inches
to
Type 017
ASP025
Type 007
Type 026
Type 077
Type 107
page 47
page 89
page 129
page 89
page 90
Technical Data
V/A
V/A
300 / 15
300 / 15
250 V / 4 kV / 10 A
Technical Data
V/A
V/A
300 / 15
300 / 15
250 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.7 mm
Insulating material class
CTI 400
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Solder pin dimension
1 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.4 mm
Pole size
2 - 24
Color
black
to
Type 027
Type 007
Type 026
Type 077
Type 107
Type 137
page 89
page 129
page 89
page 90
page 91
Note for
Type 017
and
Type 027
Packaging for automated
processing is available on
demand. Please do not hesi-
tate to contact us.
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.7 mm
Insulating material class
CTI 400
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Solder pin dimension
1 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.4 mm
Pole size
2 - 24
Color
black
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 4.8 mm / 0.189 inches
L = (pole size - 1) x centerline + 4.8 mm / 0.189 inches
Part numbers (P/N)
Type 017
centerline 5 mm / 0.197 inches
(information: page 110)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 027
(information: page 110)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
centerline 5 mm / 0.197 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
310171
P/N
310271
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
