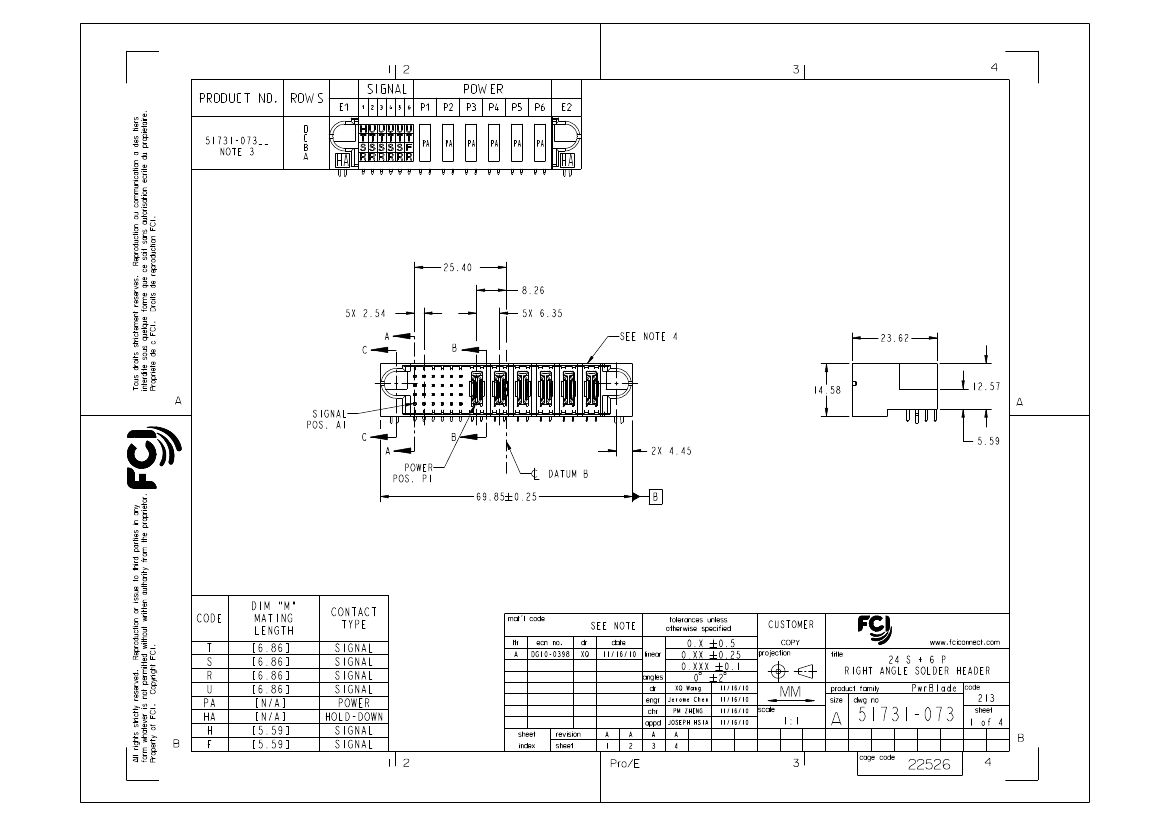

PwrBlade®, Power Connectors, 24S 6P Right Angle Header, Solder To Board

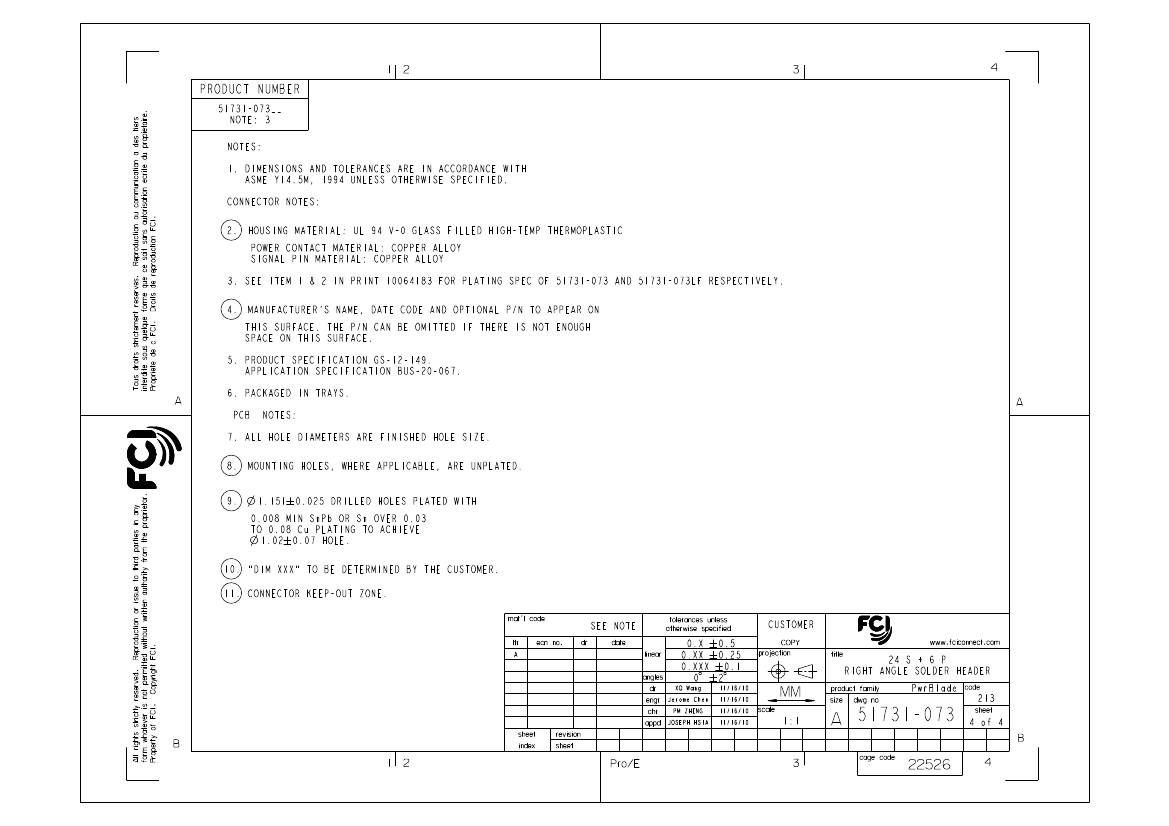

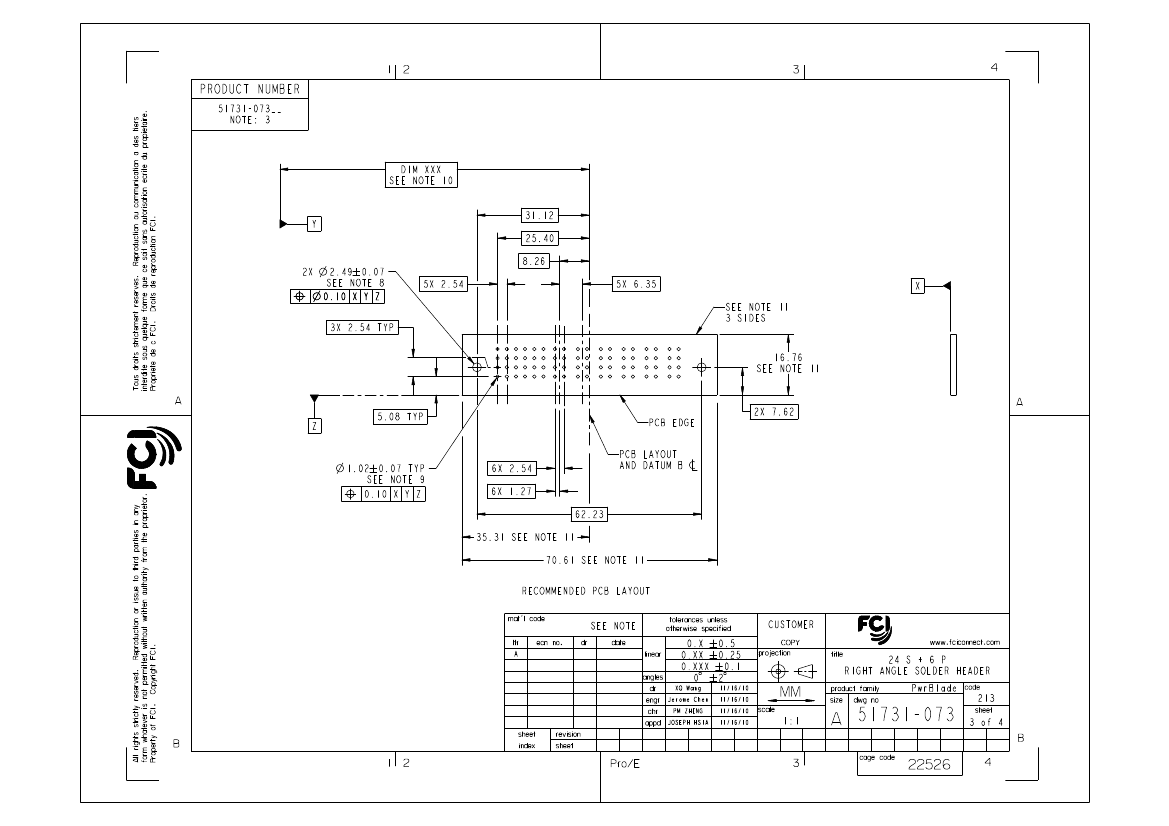

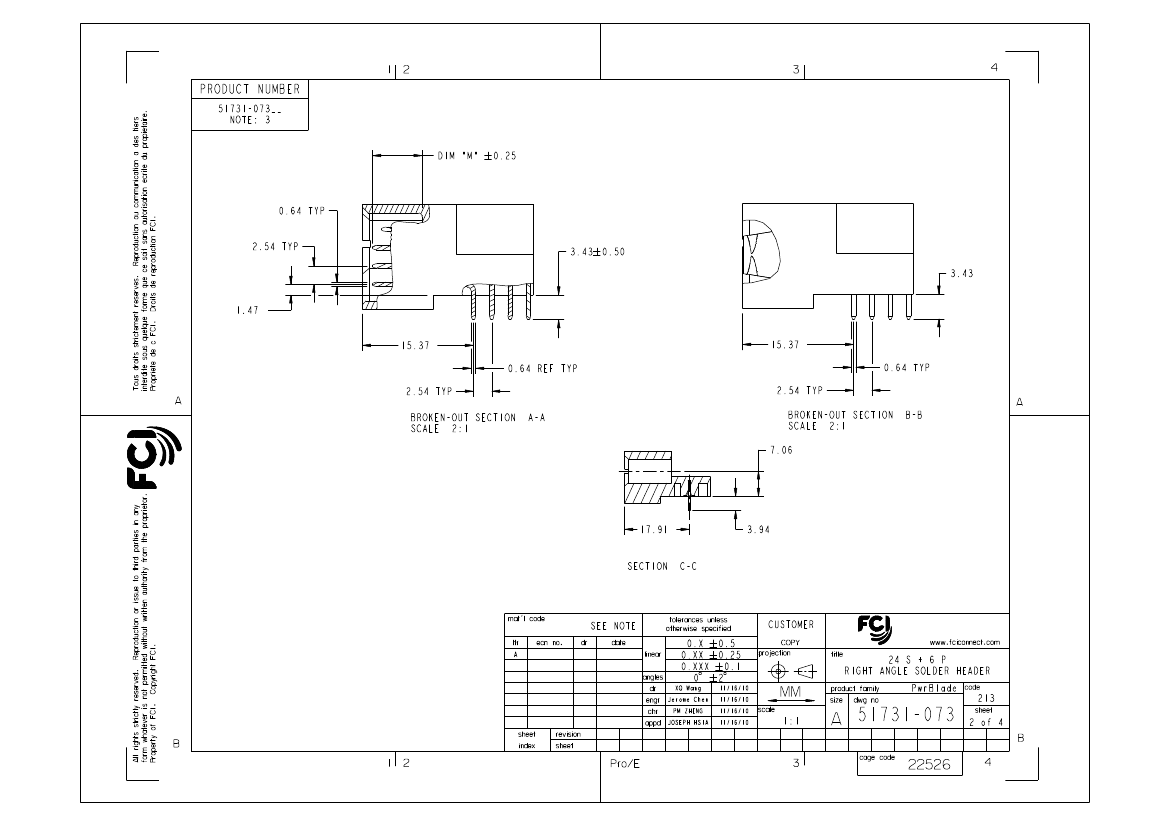

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Objectid | 1055277737 |
| package instruction | LEAD FREE |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| YTEOL | 9.1 |
| Other features | TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM |
| Board mount options | HOLE .086-.098 |
| body width | 0.574 inch |
| subject depth | 0.93 inch |
| body length | 2.75 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact arrangement | S24P6 |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| Contact resistance | 20 mΩ |
| Contact style | HYBRID |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VDC V |
| Durability | 200 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .973 N |
| Insulation resistance | 500000000 Ω |
| insulator material | GLASS FILLED POLYETHYLENE |
| MIL compliance | NO |
| Mixed contacts | YES |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| Number of rows loaded | 4 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Guideline | UL |
| Terminal length | 0.135 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 30 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .1668 N |
