551-90-241-18-075004 datasheet, PDF

Datasheet> All Categories > The connector> socket> 551-90-241-18-075004

551-90-241-18-075004: DescriptionIC Socket, PGA241, 241 Contact(s),; CategoryThe connector socket; File Size524KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

551-90-241-18-075004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	551-90-241-18-075004	-	-	View	Buy Now

551-90-241-18-075004 Overview

IC Socket, PGA241, 241 Contact(s),

551-90-241-18-075004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	PGA SOCKET
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL (150)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	PGA241
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e0
Number of contacts	241
Base Number Matches	1

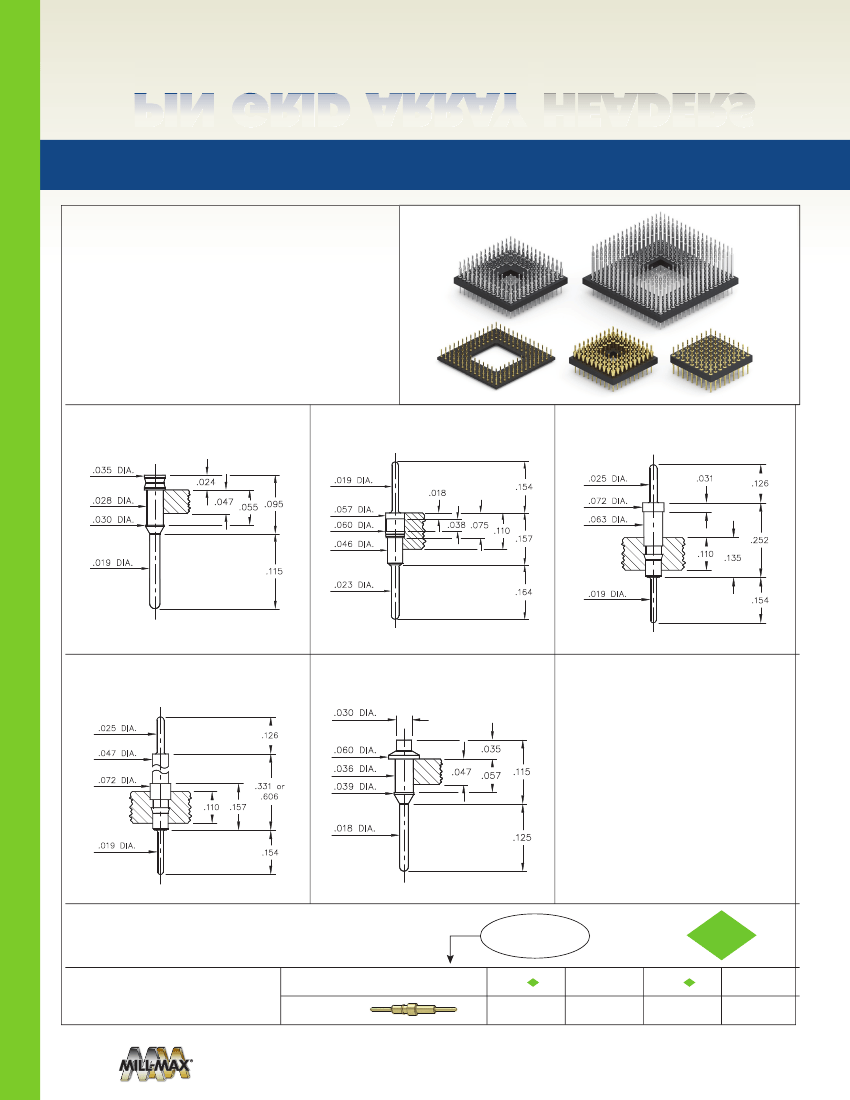

Preview

Download Datasheet

View All

PIN GRID ARRAY

HEADERS

SERIES 507, 550, 551, 599 • .100” AND INTERSTITIAL GRID •

SURFACE MOUNT AND THROUGH

HOLE

•

Series 551 and 599 headers are available on .100” centers

•

Series 507 and 550 PGA headers are available for interstitial

patterns and designed for SMT adapter applications

board stacking applications

•

Series 550 and 551 are through-hole mount for adapter &

•

Series 550 and 551 use High temperature PCT polyester

insulator material suitable for all forms of soldering

•

Series 507 and 599 use FR-4 epoxy insulator material

•

For Electrical, Mechanical and Environmental Data, see

page 137 for details

SERIES 507

SMT HEADER PIN TYPE #0737

.035 DIA.

.024

.028 DIA.

.030 DIA.

.047

.055 .095

SERIES 550

HEADER PIN TYPE #5012

.019 DIA.

.018

.057 DIA.

.060 DIA.

.046 DIA.

.038 .075

.110

SERIES 551

HEADER PIN TYPE #5503

.025 DIA.

.072 DIA.

.063 DIA.

.031

.154

.126

.157

.110

.135

.252

.019 DIA.

.115

.023 DIA.

.164

.019 DIA.

.154

Interstitial Patterns Only

SERIES 551

HEADER PIN TYPE #5504 & #5505

.025 DIA.

.047 DIA.

.072 DIA.

SERIES 599

SMT HEADER PIN TYPE #9976

.030 DIA.

.126

.060 DIA.

.036 DIA.

.331 or

.606

.110

.157

.035

.047

.057

.115

.039 DIA.

PAGE 140 | IC SOCKETS / TO SOCKETS

.018 DIA.

.019 DIA.

.154

.125

XX=Plating Code

See Below

2011/65/EU

RoHS - 2

Visit www.mill-max.com/pga

to con gure a formal part number

SPECIFY PLATING CODE XX =

Pin Plating

µ”

200

µ”

Sn/Pb

200

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
