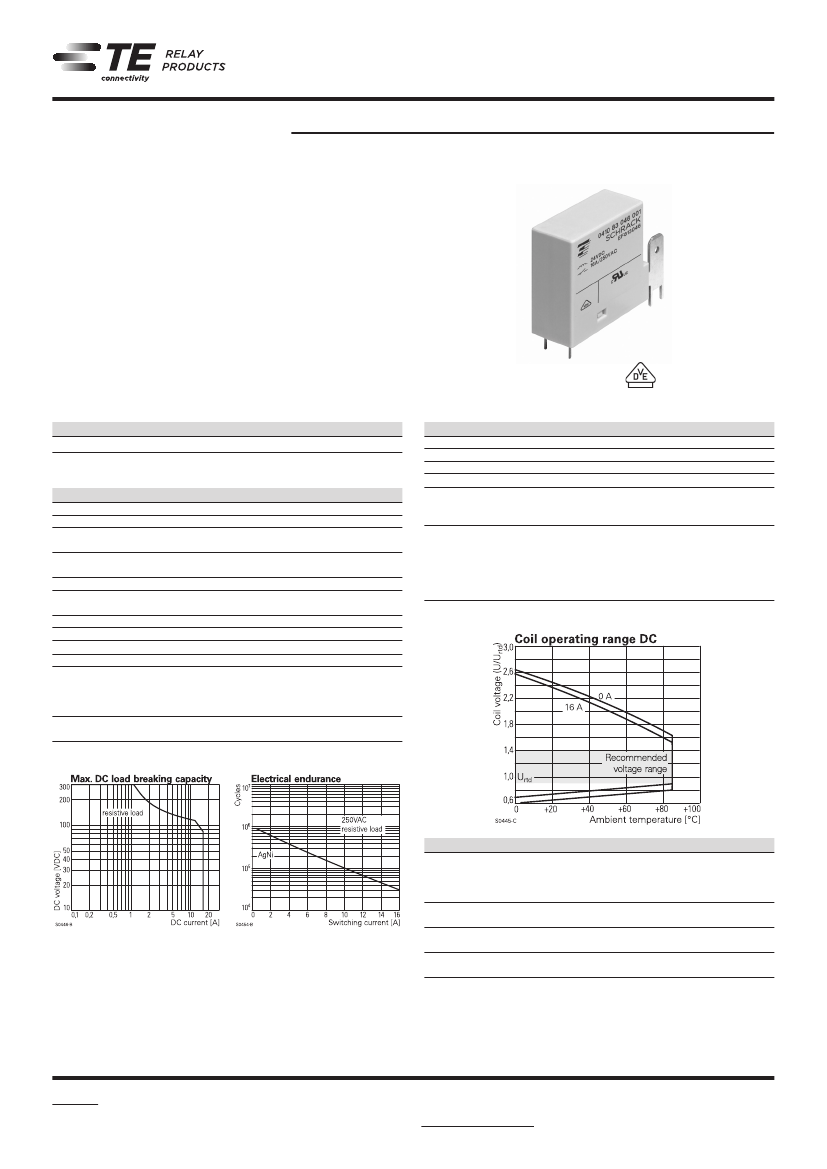

General Purpose
Low Power PCB Relays
Power Relay 41083 3mm
n
n
n
n
n
n
n
n
SCHRACK
1 pole 16A, 1 form X, double make, bridging contact
Contact gap >3mm
Switching capacity 4000VA
Coil power 360mW
4kV/8mm coil-contact, insulation to VDE 0631 and 0700
Ambient temperature 85°C; max. 105° at 10A
Quick connect terminals for load side
Materials in accordance to IEC 60335-1
Typical applications
Washing machines, tumble dryers, absolute safe power supply
disconnection in other domestic applications.
Z
Coil Data
Coil voltage range
6 to 60VDC
Operative range, IEC 61810
1
Coil insulation system according UL1446
class F
Coil versions, DC coil
Coil
Rated
Operate
Release
Coil
code
voltage
voltage
voltage
resistance
VDC
VDC
VDC
Ω±10%
053
9
5.9
0.68
230
054
6
3.9
0.45
100
050
12
7.9
0.9
400
046
24
15.8
1.8
1600
043
48
31.6
3.6
6400
042
60
39.5
4.5
10000
Approvals
VDE REG.-Nr. 40001454, UL E214025
Technical data of approved types on request.
Contact Data
Contact arrangement
1 form X, double make (NO)
Contact gap
>3mm/full disconnection
Rated voltage
250VAC
Max. switching voltage
400VAC
Rated current
16A
Limiting making current, max. 4s, duty factor 10%
20A
Breaking capacity max.
4000VA
Contact material
AgNi
Contact style
single contact, bridging contact
Frequency of operation, with/without load
600/36000h
-1
Contact ratings
Type
Contact
IEC 61810
410 83
A (NO)
410 83
A (NO)
410 83
A (NO)
Mechanical endurance
Load
16A, 250VAC resistive, 85°C
10A, 250VAC resistive, 105°C
10A, 400VAC resistive, 105°C
>1x10
6
operations
Cycles
30x10
3
100x10
3
100x10
3
Rated coil
power
mW
360
360
360
360
360
360
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
Initial surge withstand voltage
between contact and coil
Clearance/creepage
between contact and coil
Material group of insulation parts
Tracking index of relay base
2500V
rms
4000V
rms
8000V (1.2/50μs)
≥8/8mm
IIIa
PTI250V
07-2017, Rev. 0717
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
1
General Purpose
Low Power PCB Relays
Power Relay 41083 3mm
(Continued)
Other Data
SCHRACK
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Resistance to heat and fire
WG version
according EN60335-1, par.30
Ambient temperature
-20 to +85°C
max. +105°C at 10A
Category of environmental protection
IEC 61810
RTII - flux proof
Vibration resistance (functional),
form A (NO), 10 to 500Hz
10g
Shock resistance (destructive)
100g
Terminal type
PCB-THT, quick connect for load side
Weight
24g
Resistance to soldering heat THT
IEC 60068-2-20, flux proof version
270°C/10s
Packaging/unit
tray/75 pcs., box/1050 pcs.
PCB layout / terminal assignment
Bottom view on solder pins
1 form X, double make contact
Dimensions
Product code structure
Type
Coil
41083
Power Relay 410 83 3 mm
Typical product code
041083
050
001
WG
Coil code: please refer to coil versions table
Version
001
1 form X. double make (NO) contact
Version
WG
Product in accordance with IEC 60335-1 (domestic appliances)
Other types on request.
0410 83 046 001
0410 83 046 001WG
0410 83 050 001WG
0410 83 053 001WG
0410 83 054 001WG
Product code
Contact arrangement Contact material
1 form X
double make (NO)
3mm contact gap
AgNi
24VDC
12VDC
9VDC
6VDC
Coil
Standard
IEC60335-1 compliant
Version
Part Number
4-1415410-8
8-1415536-6
8-1415536-7
8-1415536-8
8-1415536-9
This list represents the most common types and does not show all variants covered by this datasheet.
Other types on request.
2
07-2017, Rev. 0717
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
