336206-14-0150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 336206-14-0150

336206-14-0150: DescriptionRF cable assemblies tnc blkhd jack - amc plug 137mm, 150mm; CategoryThe connector; File Size96KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

336206-14-0150 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336206-14-0150	-	-	View	Buy Now

336206-14-0150 Overview

RF cable assemblies tnc blkhd jack - amc plug 137mm, 150mm

336206-14-0150 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Cable Assemblies
RoHS	Yes
Cable Type	1.37 mm Coax
Frequency Range	DC to 6 GHz
Impedance	50 Ohms
Length	150 mm
Connector A Body Style	Bulkhead
Connector A Series	TNC
Connector B Body Style	Right Angle
Connector B Series	AMC
Connector A Gende	Jack (Female)
Connector A Polarity	Reverse
Connector B Gende	Plug (Male)
Connector B Polarity	Normal
Polarity	Reverse

Preview

Download Datasheet

View All

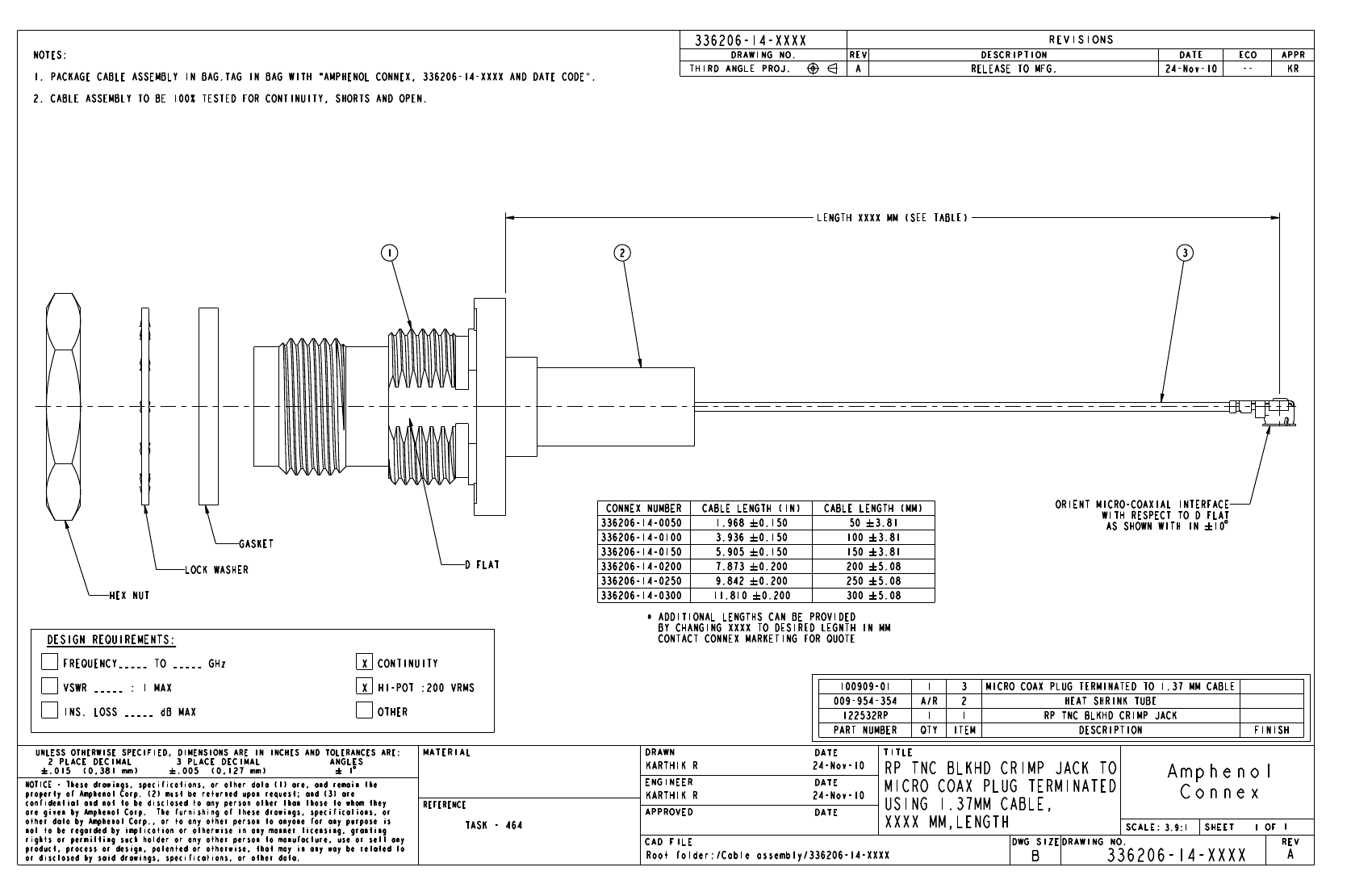

336206-14-XXXX

NOTES:

1. PACKAGE CABLE ASSEMBLY IN BAG.TAG IN BAG WITH "AMPHENOL CONNEX,

2. CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY, SHORTS AND OPEN.

336206-14-XXXX AND DATE CODE".

DRAWING NO.

THIRD ANGLE PROJ.

REV

DESCRIPTION

REVISIONS

DATE

ECO

APPR

RELEASE TO MFG.

24-Nov-10

LENGTH XXXX MM (SEE TABLE)

CONNEX NUMBER

336206-14-0050

GASKET

LOCK WASHER

HEX NUT

D FLAT

336206-14-0100

336206-14-0150

336206-14-0200

336206-14-0250

336206-14-0300

CABLE LENGTH (IN)

1.968

3.936

5.905

7.873

9.842

11.810

0.150

0.200

CABLE LENGTH (MM)

100

150

200

250

300

3.81

5.08

ORIENT MICRO-COAXIAL INTERFACE

WITH RESPECT TO D FLAT

AS SHOWN WITH IN #

10 $

DESIGN REQUIREMENTS:

FREQUENCY_____ TO _____ GHz

VSWR _____ : 1 MAX

INS. LOSS _____ dB MAX

* ADDITIONAL LENGTHS CAN BE PROVIDED

BY CHANGING XXXX TO DESIRED LEGNTH IN MM

CONTACT CONNEX MARKETING FOR QUOTE

CONTINUITY

HI-POT :200 VRMS

OTHER

100909-01

009-954-354

122532RP

PART NUMBER

A/R

QTY

ITEM

MICRO COAX PLUG TERMINATED TO 1.37 MM CABLE

HEAT SHRINK TUBE

RP TNC BLKHD CRIMP JACK

DESCRIPTION

FINISH

UNLESS OTHERWISE SPECIFIED, DIMENSIO

NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

.015 (0,381 mm)

.005 (0,127 mm)

#1 $

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

DATE

TITLE

KARTHIK R

ENGINEER

REFERENCE

24-Nov-10

DATE

KARTHIK R

APPROVED

24-Nov-10

DATE

TASK - 464

CAD FILE

RP TNC BLKHD CRIMP JACK TO

Amphenol

MICRO COAX PLUG TERMINATED

Connex

USING 1.37MM CABLE,

XXXX MM,LENGTH

SCALE: 3.9:1

SHEET

DWG SIZE

DRAWING NO.

REV

Root folder:/Cable assembly/336206-14-XXXX

336206-14-XXXX

336206-14-0150 Related Products

	336206-14-0150	336206-14-0250	336206-14-0200	336206-14-0300	336206-14-0100	336206-14-0050
Description	RF cable assemblies tnc blkhd jack - amc plug 137mm, 150mm	RF cable assemblies tnc blkhd jack - amc plug 137mm, 250mm	RF cable assemblies tnc blkhd jack - amc plug 137mm, 200mm	RF cable assemblies tnc blkhd jack - amc plug 137mm, 300mm	RF cable assemblies tnc blkhd jack - amc plug 137mm, 100mm	RF cable assemblies tnc blkhd jack - amc plug 137mm, 50mm
Manufacture	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Yes	Yes	Yes	Yes	Yes	Yes
Cable Type	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax
Frequency Range	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Length	150 mm	250 mm	200 mm	300 mm	100 mm	50 mm
Connector A Body Style	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead
Connector A Series	TNC	TNC	TNC	TNC	TNC	TNC
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Connector B Series	AMC	AMC	AMC	AMC	AMC	AMC
Connector A Gende	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)
Connector A Polarity	Reverse	Reverse	Reverse	Reverse	Reverse	Reverse
Connector B Gende	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Polarity	Reverse	Reverse	Reverse	Reverse	Reverse	Reverse
