NOTES:
1. MATERIALS AND FINISHES:
SMA RIGHT ANGLE CRIMP PLUG - P/N: 132122
SMA BULKHEAD CRIMP JACK -
P/N: 132118
CABLE -
RG-58/U COAXIAL CABLE
2. ELECTRICAL:
A. IMPEDANCE: 50 OHM, NOMINAL
3. PACKAGING:
A. QUANTITY:
B. BAG TO BE MARKED:
SINGLE PACK
AMPHENOL RF, 135111-04-XX.XX, AND DATE CODE
135111-04-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REVISIONS
REV
NC
B
INITIAL RELEASE
SEE SHEET 1
DESCRIPTION
04-Feb-09
DATE
ECO
26-Mar-14
2714
--
APPR
CL/BCG
--
SCALE
0.625
LENGTH AND TOLERANCE (SEE TABLES)
RG-58/U COAXIAL CABLE
HEAT SHRINK TUBING
TYP. (2x)
SMA BULKHEAD CRIMP JACK
'D' FLAT
HEX NUT
SMA RIGHT ANGLE CRIMP PLUG
PART NUMBER
(IMPERIAL)
-
ORDERING INFORMATION
PART NUMBER
(METRIC)
-
-
-
LOCK WASHER
135111-04-06.00
135111-04-12.00
135111-04-18.00
135111-04-24.00
135111-04-36.00
-
-
-
LENGTH IN INCHES *
[METERS]
9.84 [0.250]
6.00 [0.152]
135111-04-M0.25
12.00 [0.305]
19.69 [0.500]
29.53 [0.750]
39.37 [1.000]
18.00 [0.457]
24.00 [0.610]
36.00 [0.914]
48.00 [1.219]
TOLERANCE TABLE
LENGTH IN INCHES/FT [METERS]
0" - 23.90" [0 - 0.607]
24.00" - 59.00" [0.610 - 1.499]
5.0' - 24.9' [1.524 - 7.617]
25.0' & UP [7.620 & UP]
TOLERANCE
#
0.50" [0.013]
#
5.0%
#
2.5%
#
0.25" [0.006]
135111-04-M0.50
135111-04-M0.75
135111-04-M1.00
-
DESIGN REQUIREMENTS:
X
FREQUENCY : DC
VSWR : ____1 MAX
INS. LOSS : ---- dBMAX
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE AS FOLLOWS:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015 (0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
135111-04-48.00
TO
1.0 GHz
X
CONTINUITY
X
HI-POT : 500 VRMS
OTHER
MATERIAL
* ADDITIONAL LENGTHS CAN BE PROVIDED,
CONTACT AMPHENOL RF MARKETING FOR QUOTE
DRAWN
SEE NOTES
REFERENCE
CLEMENT
CLEMENT
13-Mar-14
13-Mar-14
26-Mar-14
DATE
DATE
DATE

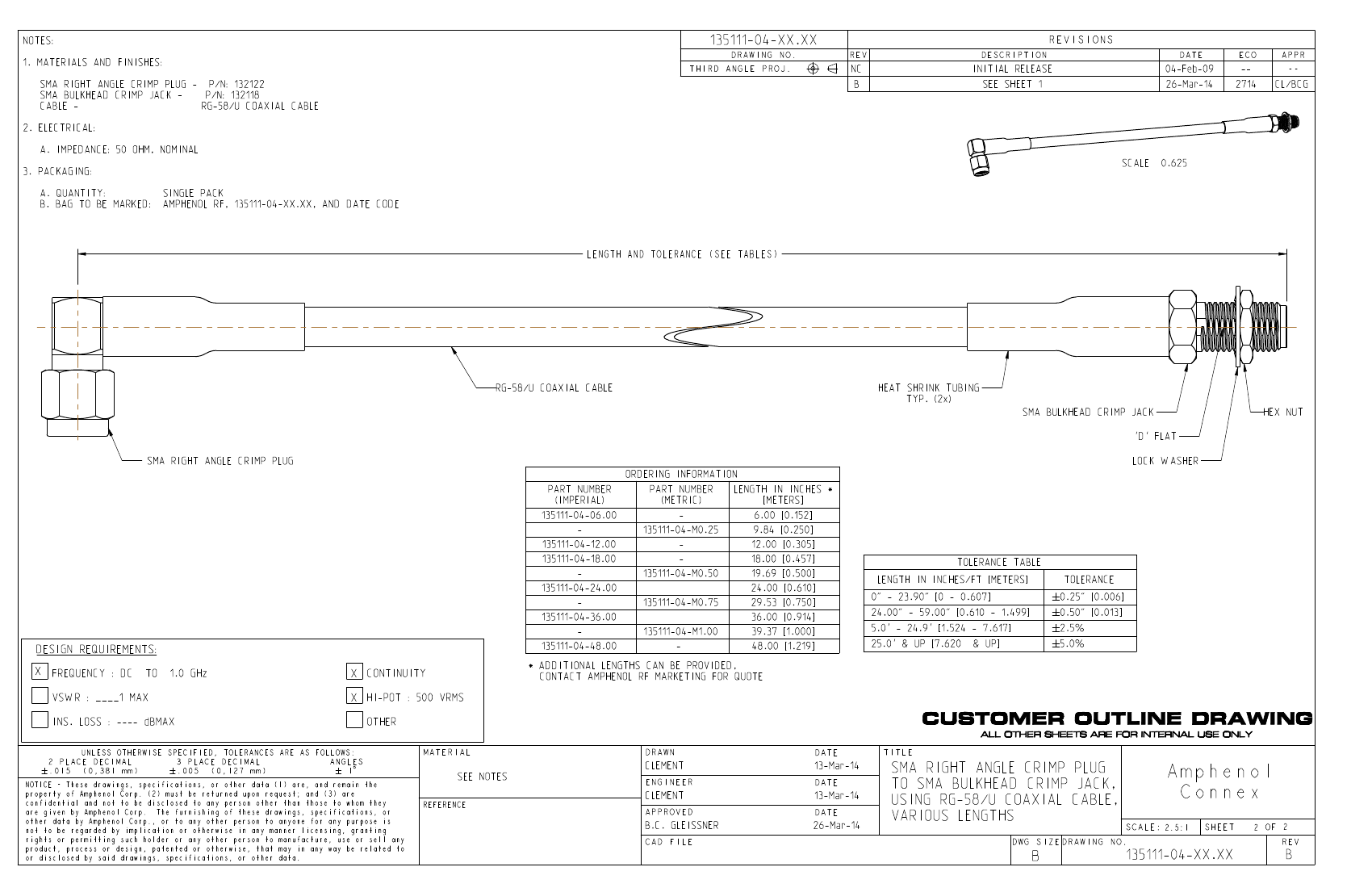

TITLE
ENGINEER
APPROVED
CAD FILE
B.C. GLEISSNER
SMA RIGHT ANGLE CRIMP PLUG
TO SMA BULKHEAD CRIMP JACK,
USING RG-58/U COAXIAL CABLE,
VARIOUS LENGTHS
B
Amphenol
Connex
SCALE: 2.5:1
SHEET
2 OF 2
REV
DWG SIZE DRAWING NO.
135111-04-XX.XX
B
