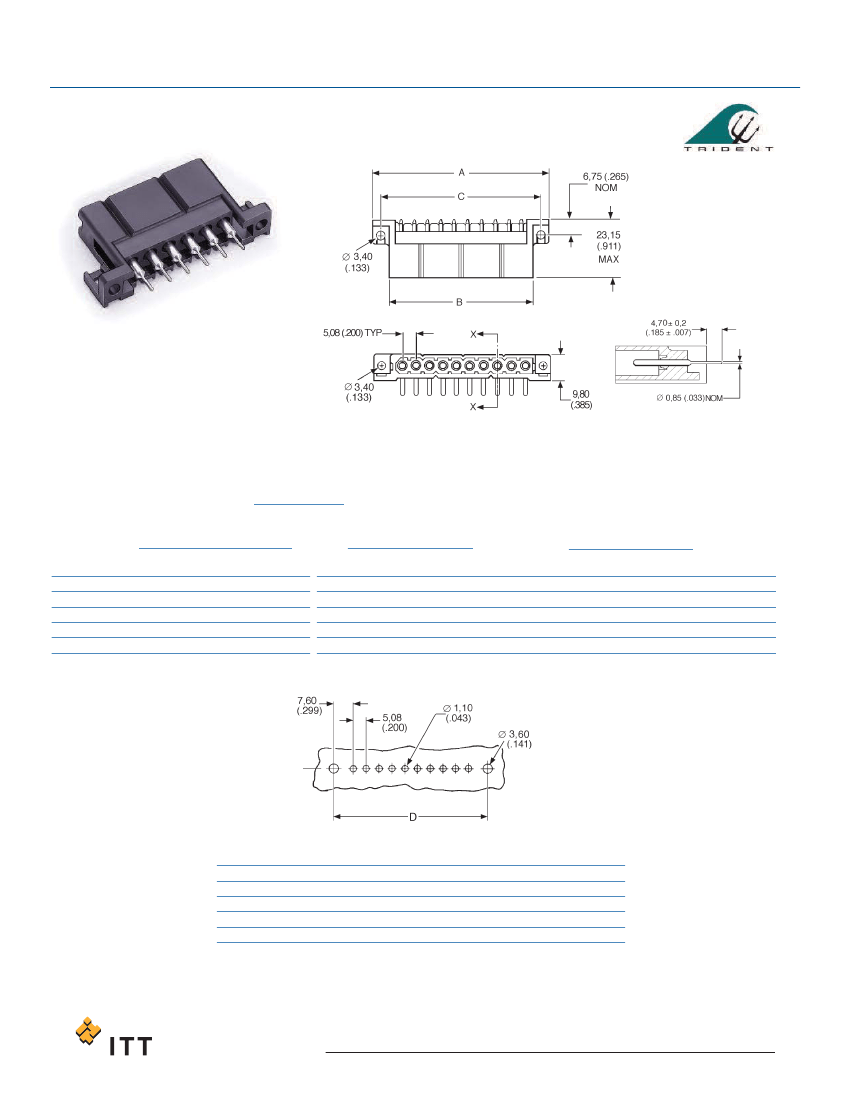

Cannon Trident Connectors

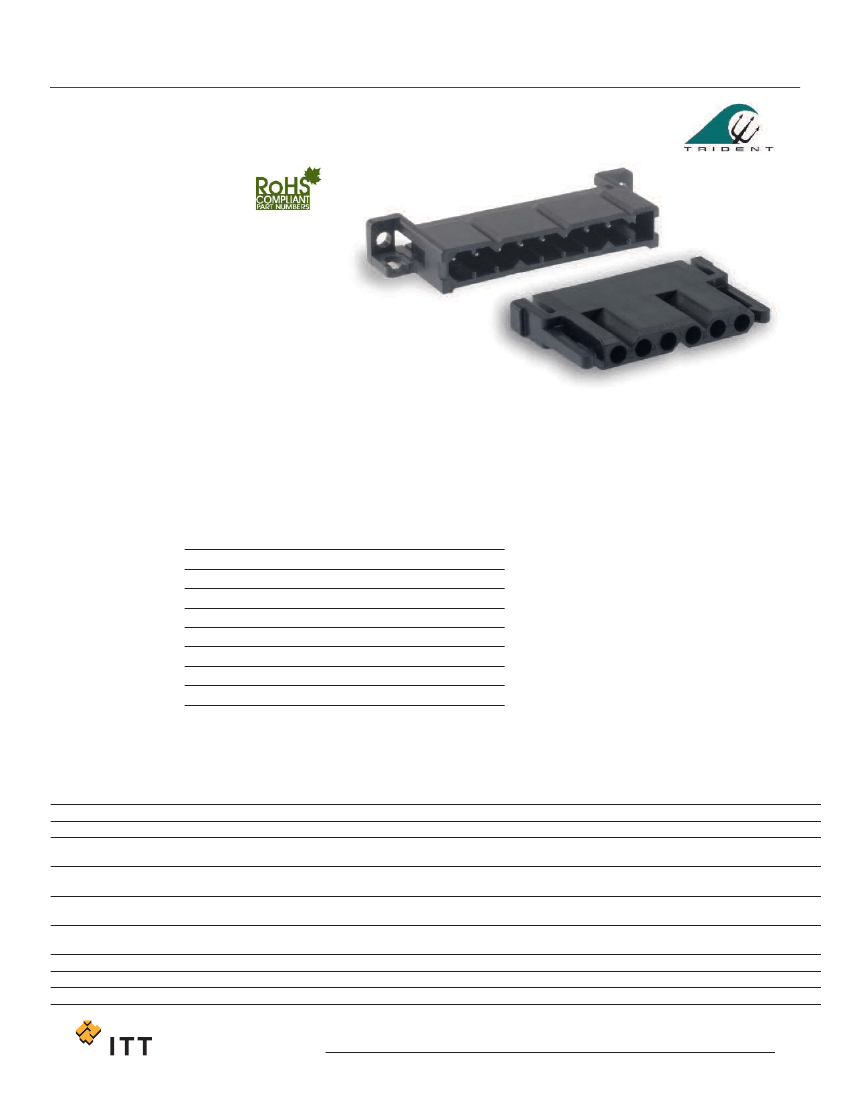

The Slimline Range offers a low profile
connector system that is well suited for circuit
board applications. The precision machined
contacts are ideal for power and sensitive
signals. All Snap Together - Slimline connectors
are RoHS Compliant.
Snap Together - Slimline
Applications:
•
Junction Boxes.
•
Communications equipment.
•
Test equipment.
•
Instrumentation.
Product Features
•
Less than 10,00 (.393) width on PC board.
•
Pin headers pre-loaded with straight or 90° machined solder tail pins.
•
Mating plug accepts all Trident signal crimp socket contacts, see page 64.
•
Plugs have integrally molded quick connect/disconnect latches.
•
Five single row contact arrangements available.
•
Recognized under the component program of UL Inc.
•
Gold plated version available with earth pin capability.
•
10 A per circuit.
Performance Specifications
Operating
Voltage
1
Up to 250 V ac rms
Up to 10 A
-40°C to +105°C (-40°F to +221°F) for PCB Mounted Receptacles
Materials and Finishes
Insulator
Black Nylon, UL 94 V-0
Contact Current Rating
2
Operating Temperature
-55°C to +105°C (-67°F to +221°F) for free Plug & Receptacles
Insulation Resistance
5000MΩ min. at 500 V dc
Durability
3
Connector Latching Force
Up to 500 Mating Cylces
150 N min. with latches engaged
1
Depends on contacts used, layout, and degree of pollution
2
Depends on number and type of contacts used
3
Depends on plating and type of contacts used
Panel Retention Force
500 N min.
Flammability
UL 94 V-0
Test Specifications
The table below summarizes the results of key tests. Data is applicable to standard connectors with standard contacts.
Variations may affect this data, so please consult factory for further information on your requirements.
Test
Method
Criteria of Acceptance
Dielectric Withstanding Voltage
Thermal Shock
Physical Shock
Vibration
Durability 500 cycles of mating and unmating,
500 mating cycles max
Salt Spray
High Temperature Endurance
Humidy Steady State
Moisture Resistance
2000 V ac
-55°C to +125°C (-67°F to +257°F), 5 cycles
50 gʼs peak, 3 axes,
11 millisecond duration half-sine pulse
10 gʼs peak,
10-500 Hz, 9 hours
No mechanical or
electrical defects
48 hours
and meet contact resistance requirements
1000 hours at 125°C (+257°F)
RH 90-95%, 40°C (+125°F), 504 hours
10 Cycles
No breakdown
No physical damage
No physical damage.
No loss of continuity >1 sec
No physical damage,
No loss of continuity >1 sec
Shall be capable of mating and unmating
Insulation Resistance > 100 MW
Insulation Resistance > 100 MW
Insulation Resistance > 100 MW
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
18
www.ittcannon.com

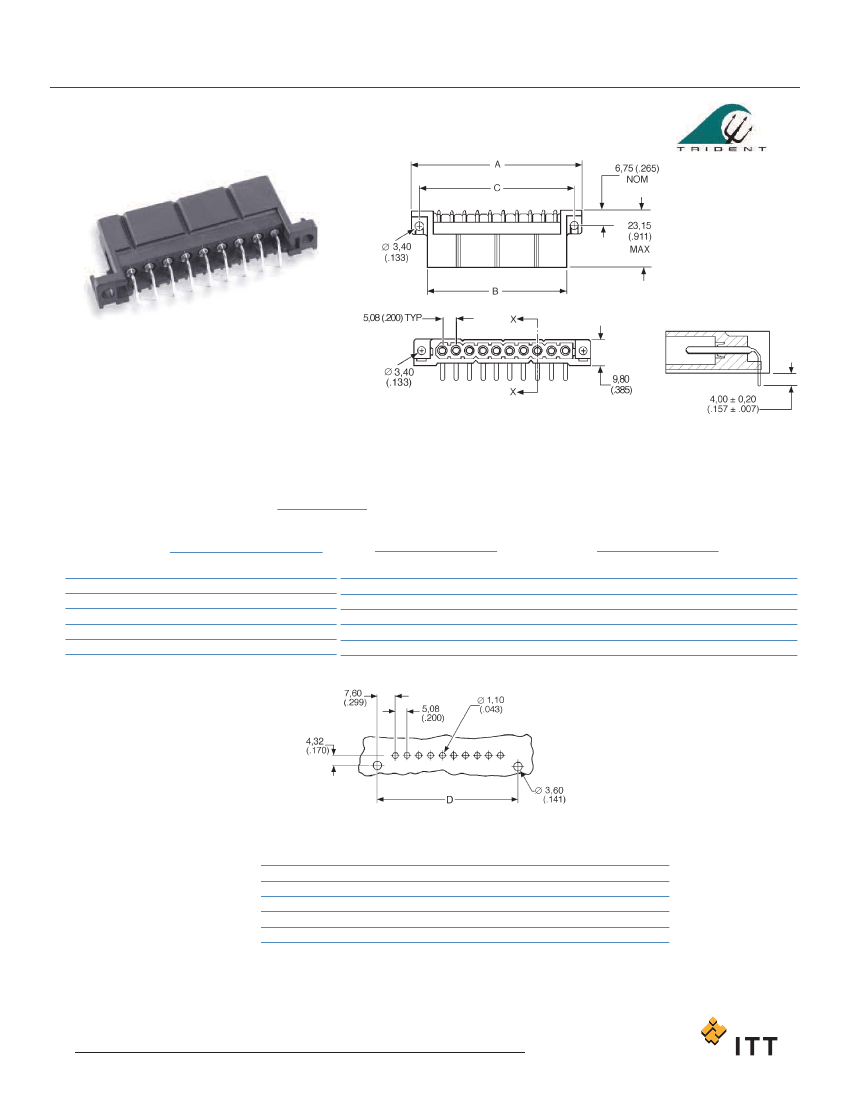

Cannon Trident Connectors

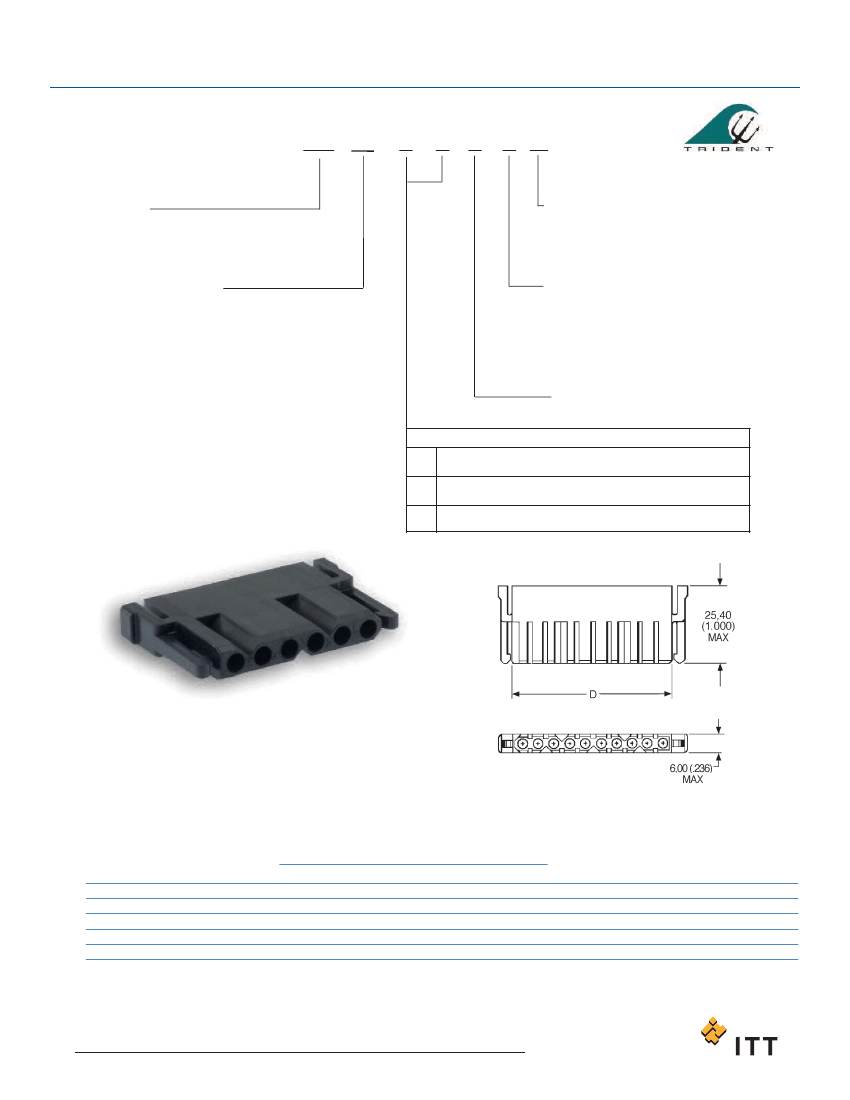

How to Order
Typical Nomenclature:
TST
03
P
F
0
0
Snap Together - Slimline
*
Plating Style
* = None (Plug only)
T = Tin
Y = 0,4
μ
m Gold overall
Z = Gold Flash
Contact Type
0
=
No Contacts (Standard for Plug and Panel
Mounted Receptacle)
1 = Machined Solder Tail Pin
2 = Machined Solder Tail Socket
5 = Formed Stamped Solder Tail Pin
6 = Formed Stamped Solder tail Socket
Color of Moulding
0 = Black
Series
TST
= Trident Snap Together
Number of Contacts
03
04
06
09
10
Variant
RD PCB Receptacle; Straight Contacts
RE
PF
PCB Receptacle; 90° Contacts
Plug
Plug Connector
•
Socket contacts must be ordered separately
for the plug connectors, see page 64.
Part Numbers — Plug Connector
Number of
Contacts
3
4
6
9
10
Pack of 100
Part Number
192990-0960
192990-0970
192990-0980
192990-0990
192990-1000
Nomenclature
TST03PF00
TST04PF00
TST06PF00
TST09PF00
TST10PF00
D
max.
16,10 (.633)
21,20 (.834)
31,40 (1.236)
46,60 (1.834)
51,60 (2.031)
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
