REVISION AE
DO NOT
SCALE FROM
THIS PRINT
TSS-1XX-XX-XXX-X-XX-XX
NO OF POS X .100[2.54]
+.150[3.81] REF
NO OF POS X .100[2.54]
+.050[1.27] REF
01 02
No OF POSITIONS
-02 THRU -18 &
20, 21, 24, 25, 28, 30, 32, 36
(PER ROW)
LEAD STYLE
SEE TABLE 1
POLARIZE OPTION
XX INDICATES POSITION OMITTED
OPTION
BLANK: STRAIGHT (STYLE 04 & 05 N/A)
-RA: RIGHT ANGLE (STYLE -01, -02 & -03 N/A)
-LL: LOCKING LEAD
-LA: -RA OPTION WITH -LL OPTION
.150 3.81
REF
.265 6.73
REF
ROW SPECIFICATION
-D: DOUBLE
-S: SINGLE
PLATING SPECIFICATION
-G: GOLD, 10µ'' Au / 50µ'' Ni NICKEL MIN ON CONTACT, 3µ'' AU / 50µ'' NI MIN ON TAIL
-T: MATTE TIN CONTACT AND TAIL
-S: SELECTIVE, 30µ'' Au / 50µ'' Ni MIN ON CONTATCT, MATTE TIN TAIL
-L: LIGHT SELECTIVE, 10µ'' Au / 50µ'' Ni MIN ON CONTACT, MATTE TIN TAIL
-H: HEAVY GOLD, 30µ'' Au / 50µ'' Ni MIN ON CONTACT, 3µ'' Au / 50µ'' Ni MIN ON TAIL
-F: FLASH SELECTIVE, 3µ'' Au / 50µ'' Ni MIN ON CONTACT, MATTE TIN TAIL
-STL: SELECTIVE, 30µ'' Au / 50µ'' Ni MIN ON CONTACT, TIN/LEAD (90/10+/-5%) TAIL
(AVAILABLE IN -01 STYLE ONLY)
-SS: STRIPE SELECTIVE, 30µ'' Au / 50µ'' Ni MIN ON CONTACT, MATTE TIN TAIL (SEE NOTE 7)
.165 4.19 REF
(GOLD PLATE)
(SEE NOTE 3)
02 04
.165 4.19 REF
(GOLD PLATE)
(SEE NOTE 3)
SEE NOTE 4
C
.100 2.54 REF
.250 6.35 .365 9.27
REF
REF
.250 6.35
REF
C
01 03
.100 2.54 REF
"A"
- .000
.04 1.0
(TYP)
+.010
C
+.010
C
"A"
- .000
FIRST POSITION
INDICATOR
TSS-XX-X
.16 [4.1] (-02 & -03 POSITIONS) REF
.20 [5.1] (-04 THRU -36) REF
(N/A ON SINGLE ROW -02 THRU -05 POSITIONS)
'CRIMP'
TERMINAL 1
(SEE TABLE 1)
.04 1.0
(TYP)
TERMINAL 1
(SEE TABLE 1)
(-LL IS SHOWN FOR DIMENSIONAL PURPOSES)
.017 0.43 MIN
STRAIGHT
.350 8.89 REF
.015 0.38 REF
DETAIL 'CRIMP'
SCALE 8 : 1
(TYP ALL CRIMPS)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.0080 0.203
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 3 LB.
3. ASSEMBLE GOLD PLATED END AS SHOWN.
4. TERMINALS TO BE FLUSH TO .010 [.25] BELOW TOP OF SHROUD.
5. TSS-1XX-04-X-D-RA-XX ASSEMBLIES ARE TO BE PACKAGED IN A PT-1-24-01-40
TUBE WITH TWO TP-13 PLUGS PER TUBE (ALL POSITIONS).
C
6. ORIENTATE PINS TO REDUCE THE NUMBER OF BANDOLIER MARKS
IN THE POST AREA (SEE TABLE 2).
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: PBT, UL 94 VO, COLOR: BLACK
TERMINAL: PHOSPHOR BRONZE

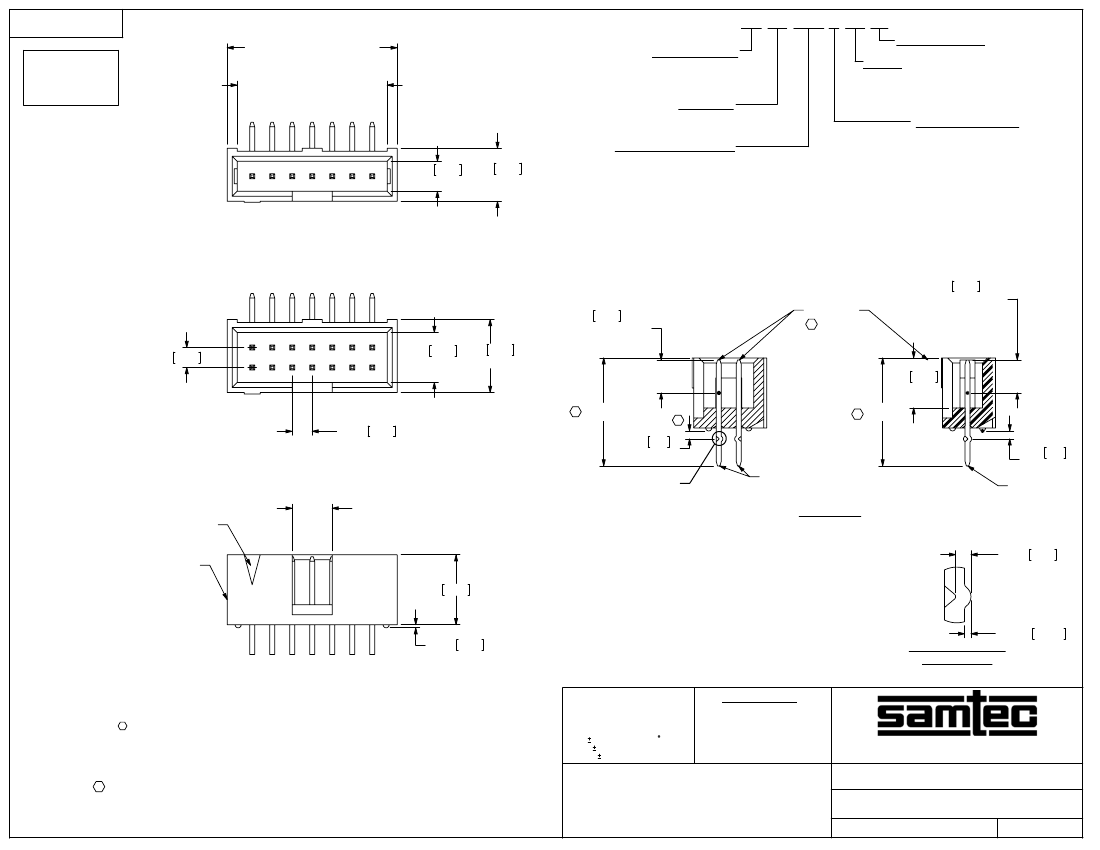

SLIM TOP SHROUD TERMINAL STRIP
7. AVAILABLE ON STRAIGHT LEAD STYLES -01, -02, -03 AND ON –RA LEAD STYLE
-04. MATES WITH SSW, SSQ, SSM, BCS, ESW & ESQ ONLY.
F:\DWG\MISC\MKTG\TSS-1XX-XX-XXX-X-XX-XX-MKT.SLDDRW
BY:
JORDAN
TSS-1XX-XX-XXX-X-XX-XX
01/23/1990
SHEET
1
OF
2
REVISION AE
C
SINGLE -LL/-LA
SEE NOTE 4
"B" REF
C
SEE NOTE 4
"B" REF
90°
C
90°
C
C
C
L
.035±.010 0.89±0.25
TERMINAL 2
(SEE TABLE 1)
.04 1.0 (TYP)
.100 2.54
.035±.010 0.89±0.25
TERMINAL 1
(SEE TABLE 1)
.04 1.0 (TYP)
EVEN POS
ODD POS
DOUBLE -LL/-LA
RIGHT ANGLE
(-LA IS SHOWN FOR DIMENSIONAL PURPOSES)
C
SEE NOTE 4
(2ND ROW ONLY)
C
L
.075 1.91 REF
.130 3.30 REF
ODD POS
EVEN POS
= CRIMP LOCATION
+.010
C
"D"
- .000
+.010
"C"
- .000
FIG 1
"C"
- .000
+.010
* PINS TO BE FLIPPED OPPOSITE OF SELECTIVE
PLATING BEFORE BEING INSERTED
TERMINAL 2
(SEE TABLE 1)
POST AREA
BANDOLIER REF
.150 3.81 REF
TERMINAL 1
(SEE TABLE 1)

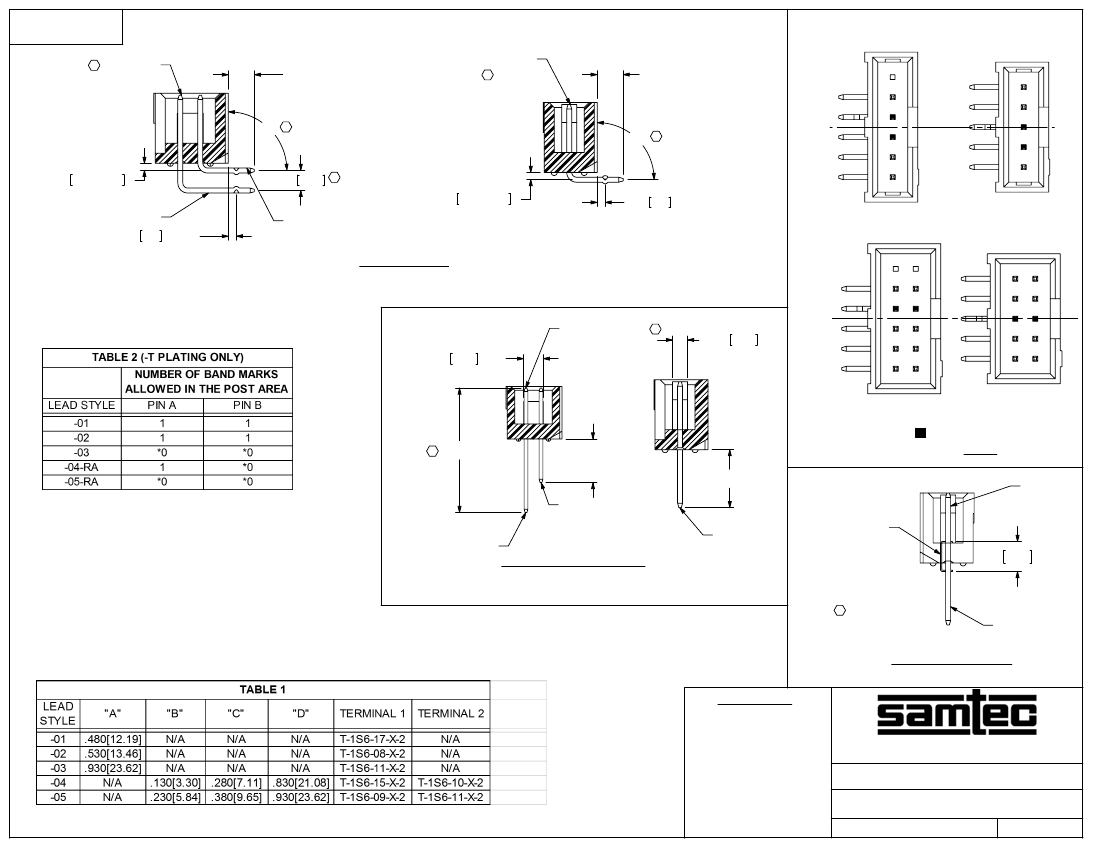

-RA IN-PROCESS VIEW
