MCV 0,5/ 3-G-2,5 THT
Order No.: 1963544

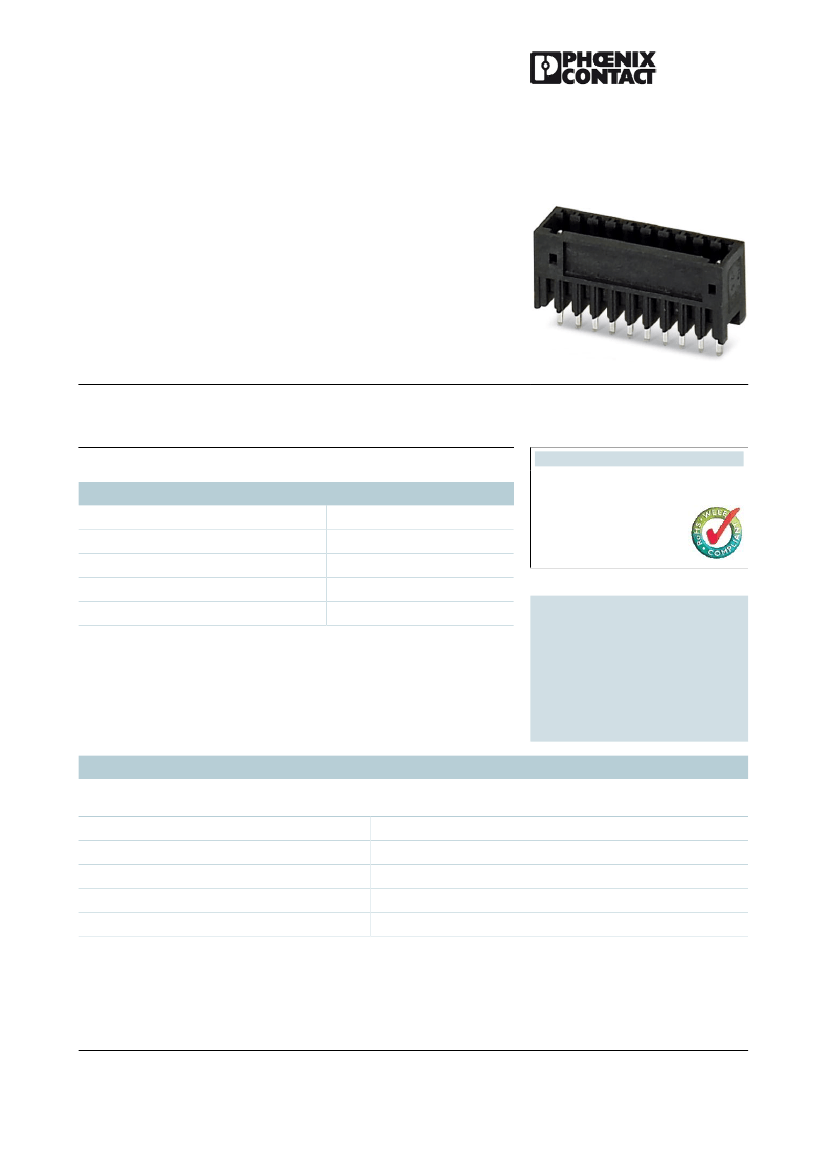

The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1963544
Header, Nominal current: 4 A, Nom. voltage: 32 V, Pitch: 2.5 mm,
Number of positions: 3, Color: black, Assembly: SMD/THT/THR
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918912352
50 pcs.
85366990
0.00219 KG
Page 139 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data
Dimensions / positions
Length
Height
Pitch
Dimension a
Number of positions
8.1 mm
10.1 mm
2.5 mm
5 mm
3
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 5
Feb 17, 2010
MCV 0,5/ 3-G-2,5 THT
Order No.: 1963544
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1963544
Pin dimensions
Pin spacing
Hole diameter
Technical data
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Certificates / Approvals
0,8 x 0,8 mm
2.5 mm
1.4 mm
IIIa
1.5 kV
2.5 kV
2.5 kV
160 V
160 V
EN-VDE
4A
32 V
4A
PA
V0
Certification
CUL
Nominal voltage U
N
Nominal current I
N
UL
Nominal voltage U
N
Nominal current I
N
CB, CUL, UL, VDE-PZI
125 V
4A
125 V
4A
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 5
Feb 17, 2010
MCV 0,5/ 3-G-2,5 THT
Order No.: 1963544
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1963544
Accessories
Item
Marking
0804853
SK 2,54/2,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 14 identical decades marked 1-10, 11-20 etc. up to 91-100,
sufficient for 140 terminal blocks
Designation
Description
Plug/Adapter
1881435
CP-MC 0,5
Keying profile, is inserted into the groove in the header, red
insulating material
Diagrams/Drawings

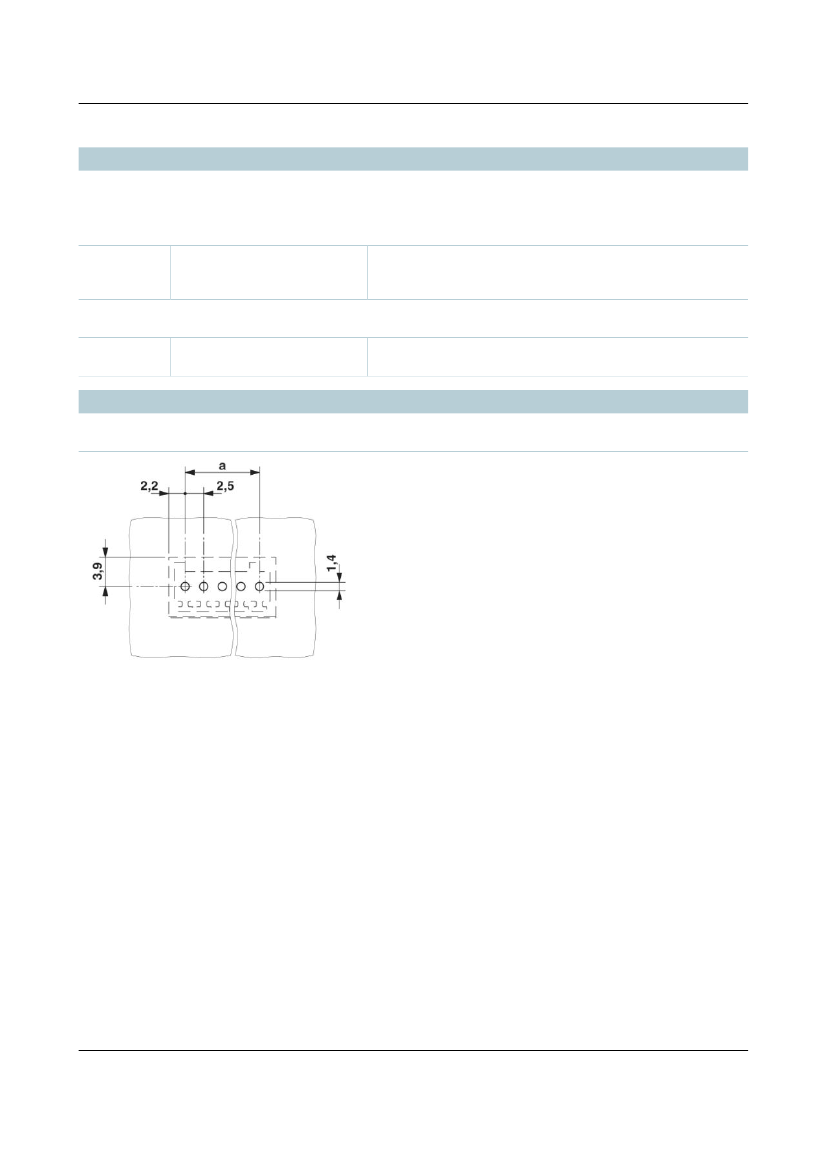

Drilling plan/solder pad geometry
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 5
Feb 17, 2010
MCV 0,5/ 3-G-2,5 THT
Order No.: 1963544
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1963544

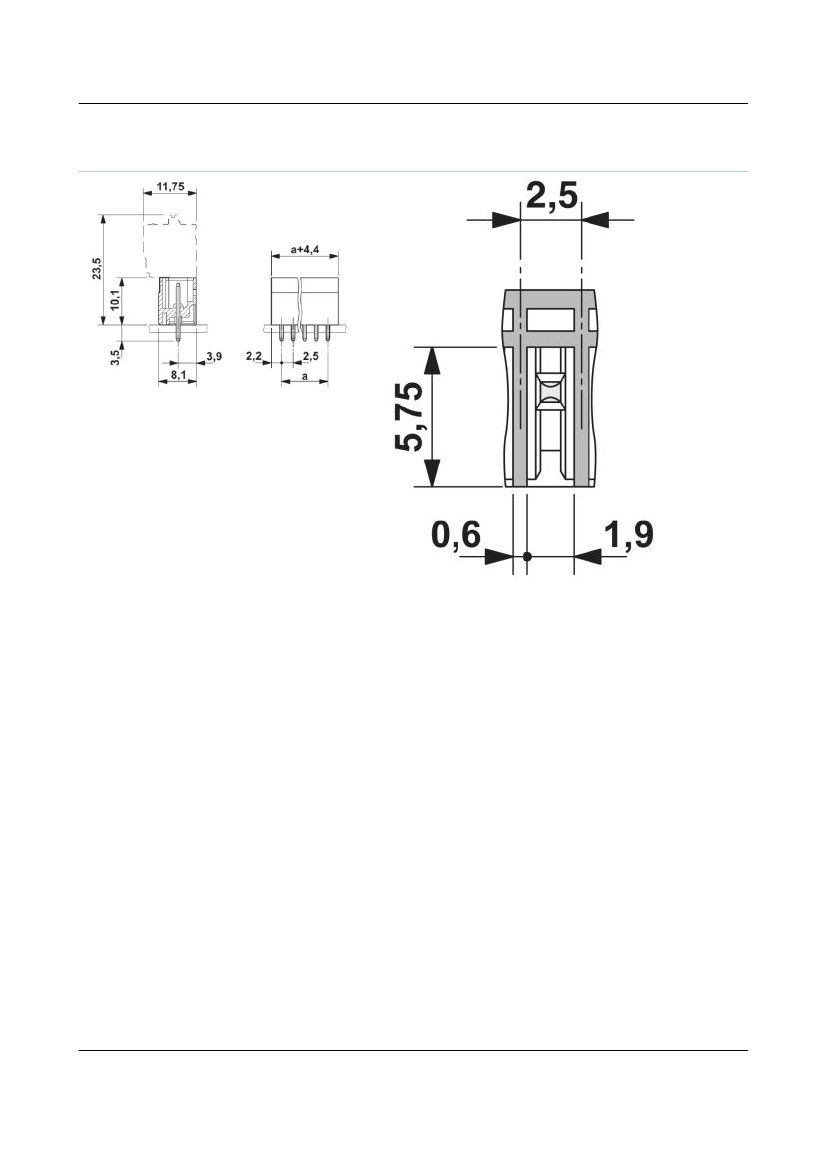

Dimensioned drawing
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 5
Feb 17, 2010
MCV 0,5/ 3-G-2,5 THT
Order No.: 1963544
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1963544
Address
PHOENIX CONTACT Inc., USA
586 Fulling Mill Road
Middletown, PA 17057,USA
Phone (800) 888-7388
Fax (717) 944-1625
http://www.phoenixcon.com
© 2010 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 5
Feb 17, 2010
