2198138-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2198138-2

2198138-2: DescriptionIMP85S,H,V6P16C,UG,DEW39,4.9; CategoryThe connector The connector; File Size432KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2198138-2 Overview

IMP85S,H,V6P16C,UG,DEW39,4.9

2198138-2 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Objectid	1478957811
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

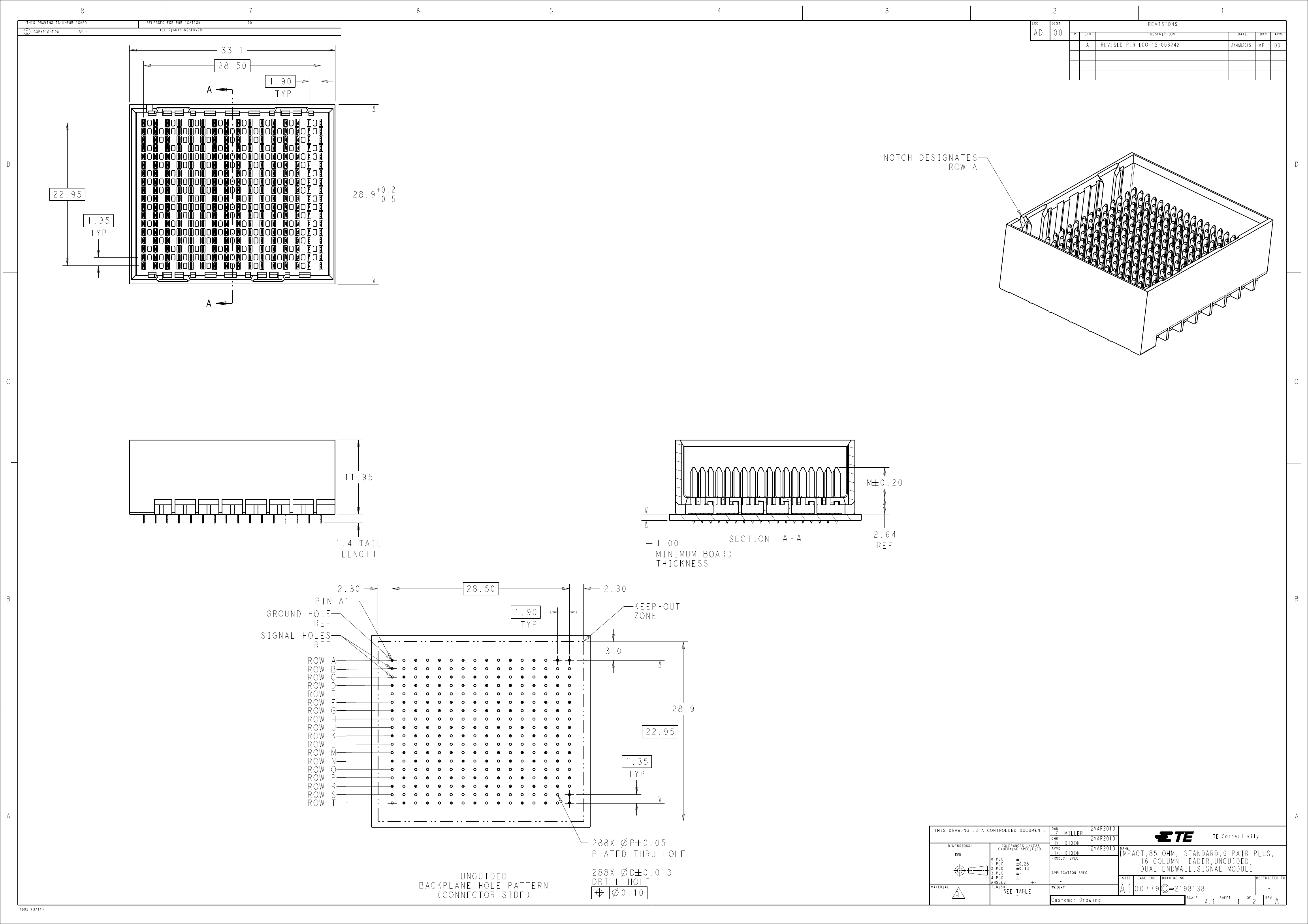

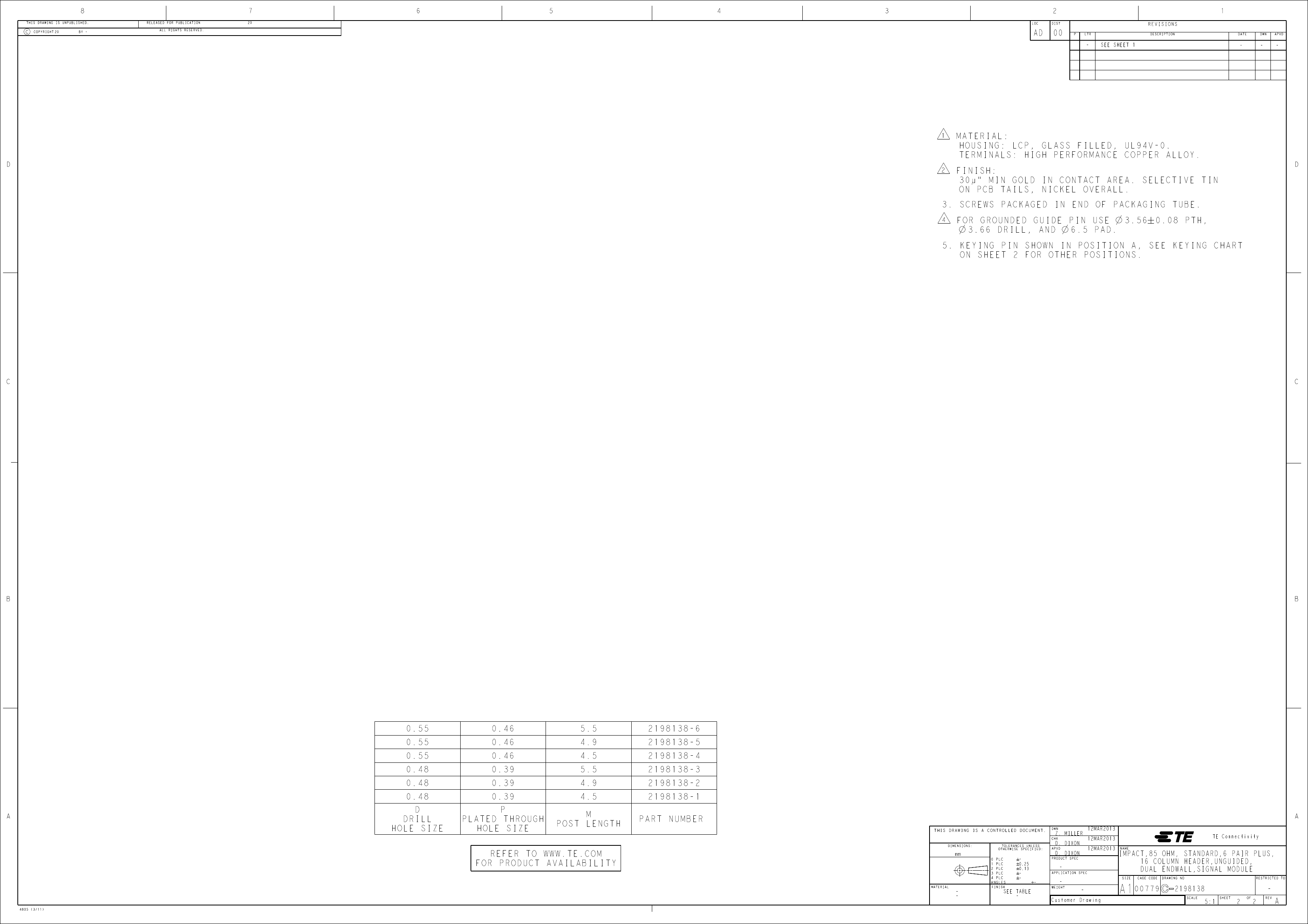

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

33.1

28.50

1.90

TYP

REVISED PER ECO-15-003242

24MAR2015

NOTCH DESIGNATES

ROW A

22.95

1.35

TYP

28.9

+0.2

-0.5

11.95

M # 0.20

1.4 TAIL

LENGTH

1.00

MINIMUM BOARD

THICKNESS

28.50

1.90

2.30

KEEP-OUT

ZONE

SECTION

A-A

2.64

REF

SIGNAL HOLES

REF

ROW

GROUND HOLE

REF

PIN A1

2.30

TYP

3.0

28.9

22.95

1.35

TYP

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

288X

PLATED THRU HOLE

UNGUIDED

BACKPLANE HOLE PATTERN

(CONNECTOR SIDE)

4805 (3/11)

Z. MILLER

D. DIXON

12MAR2013

NAME

TE Connectivity

APVD

288X

n D # 0.013

DRILL HOLE

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.25

0.13

PRODUCT SPEC

APPLICATION SPEC

IMPACT,85 OHM, STANDARD,6 PAIR PLUS,

16 COLUMN HEADER,UNGUIDED,

DUAL ENDWALL,SIGNAL MODULE

SEE TABLE

WEIGHT

Customer Drawing

00779

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

2198138

SCALE

4:1

SHEET

REV
