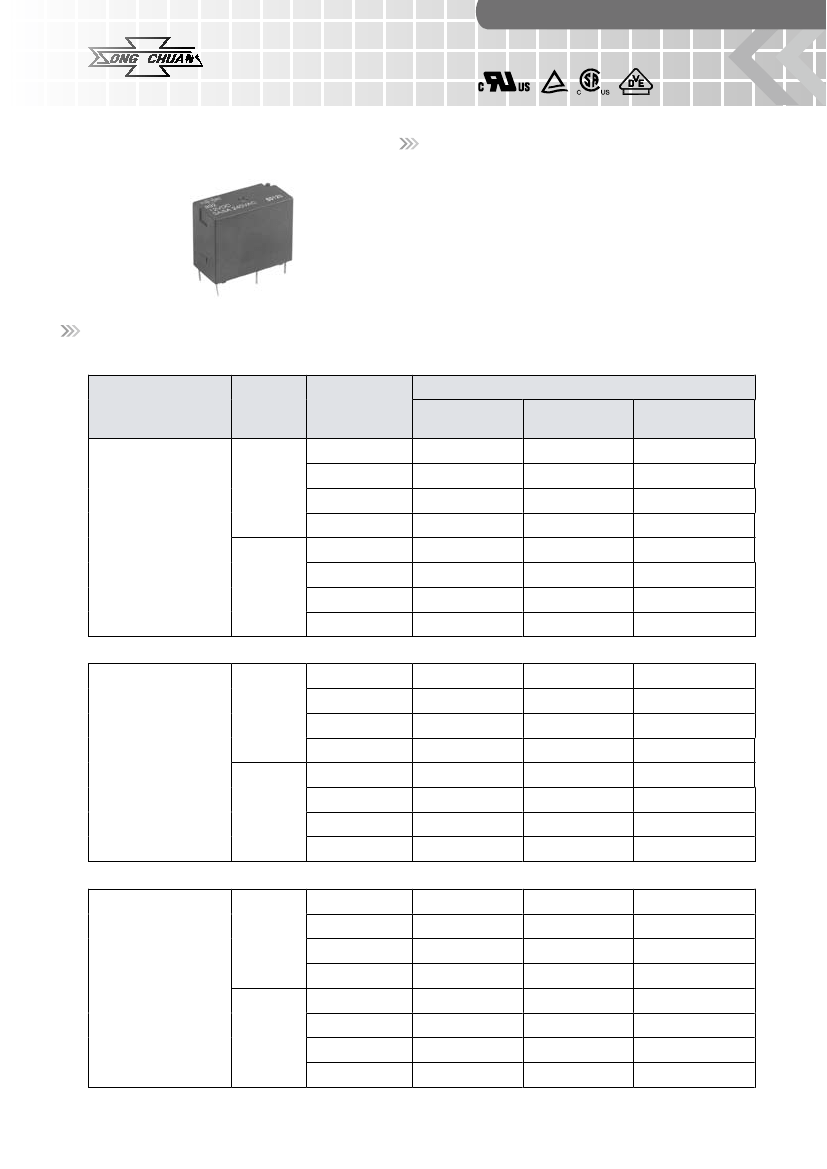

SONG CHUAN
892
Features
10mm slim miniature PCB Power Relay.
UL/CUL CSA/CUS TUV
VDE approved.
High CTI 250 material (VDE and E version).
High sensitivity 200 mW & 400mW.
High surge voltage 8,000 V between contacts and coil
(1.2×50μs).
Comply with RoHS-Directive 2011/65/EU.
Type List
Standard Type
Terminal
style
Contact
form
UL Insulation
system approval
----------
1A
(SPNO)
PCB terminal
1C
(SPDT)
F
----------
F
----------
F
----------
F
Flux tight
892-1AC-C
892-1AC-F-C
892-1AH-C
892-1AH-F-C
892-1CC-C
892-1CC-F-C
892-1CH-C
892-1CH-F-C
Designation (provided with)
Sealed type
892-1AC-V
892-1AC-F-V
892-1AH-V
892-1AH-F-V
892-1CC-V
892-1CC-F-V
892-1CH-V
892-1CH-F-V
Sealed type
washable
892-1AC-S
892-1AC-F-S
892-1AH-S
892-1AH-F-S
892-1CC-S
892-1CC-F-S
892-1CH-S
892-1CH-F-S
High Power Type
----------
1A
(SPNO)
PCB terminal
1C
(SPDT)
F
----------
F
----------
F
----------
F
892H-1AC-C
892H-1AC-F-C
892H-1AH-C
892H-1AH-F-C
892H-1CC-C
892H-1CC-F-C
892H-1CH-C
892H-1CH-F-C
892H-1AC-V
892H-1AC-F-V
892H-1AH-V
892H-1AH-F-V
892H-1CC-V
892H-1CC-F-V
892H-1CH-V
892H-1CH-F-V
892H-1AC-S
892H-1AC-F-S
892H-1AH-S
892H-1AH-F-S
892H-1CC-S
892H-1CC-F-S
892H-1CH-S
892H-1CH-F-S
High Sensitivity Type
----------
1A
(SPNO)
PCB terminal
1C
(SPDT)
F
----------
F
----------
F
----------
F
892N-1AC-C
892N-1AC-F-C
892N-1AH-C
892N-1AH-F-C
892N-1CC-C
892N-1CC-F-C
892N-1CH-C
892N-1CH-F-C
892N-1AC-V
892N-1AC-F-V
892N-1AH-V
892N-1AH-F-V
892N-1CC-V
892N-1CC-F-V
892N-1CH-V
892N-1CH-F-V
892N-1AC-S
892N-1AC-F-S
892N-1AH-S
892N-1AH-F-S
892N-1CC-S
892N-1CC-F-S
892N-1CH-S
892N-1CH-F-S
113
SONG CHUAN
892
Ordering Information
892
- 1AC
1
1. 892
-
5
-
C
6
7
1BH
1CH
2
3
4
8
-- Single pole normally closed
Contact material AgSnO
-- Single pole double throw
Contact material AgSnO
-- Standard type
-- Class F
-- Flux tight
-- Sealed type
-- Sealed type washable
-- Standard type
-- CTI 250V
-- Coil voltage (please refer to the
coil rating data for the availability)
-- Basic series designation
2. Blank -- Standard type
H
-- High power type
3. Blank -- Standard type
N
-- High sensitivity type
4. 1AC
1BC
1CC
1AH
-- Single pole normally open
material AgNi
Contact
5. Blank
F
6. C
V
S
7. Blank
E
8.
-- Single pole normally closed Contact
material AgNi
-- Single pole double throw Contact
material AgNi
-- Single pole normally open Contact
material AgSnO
Contact Rating
Type
Resistive load
Max. switching current
Max. switching voltage
Max. switching capacity
NO / NC
NO / NC
NO / NC
277VAC
NO / NC
1200VA/720VA
892
5A/3A 240VAC
7A/3A 120VAC
7A/3A
NO / NC
NO / NC
NO / NC
277VAC
NO / NC
1680VA/1200VA
892H
10A/5A 120VAC (50,000 ops.)
7A/5A 240VAC
10A/5A
Coil Rating (DC)
Standard Type
Rated
voltage
(V)
3
5
6
9
12
18
24
36
48
60
Rated current
10 % at 23°C
(mA)
133.3
80
66.7
44.4
33.3
22.2
16.7
11.1
8.3
6.7
Coil resistance Max. continuous
10 % at 23°C
( )
22.5
62.5
90
202.5
360
810
1440
3240
5760
9000
160 % of
rated
voltage
75 % of
rated
voltage
80 % of rated
voltage
(H type only)
5 % of
rated
voltage
approx. 0.4W
voltage
at 85°C
Pick up
voltage(Max.)
at 23°C
Drop out
voltage(Min.)
at 23°C
Power consumption
at rated
voltage
114
SONG CHUAN
892
High Sensitivity Type
Rated
voltage
(V)
3
5
6
9
12
18
24
36
Rated current
10 % at 23°C
(mA)
66.7
40.0
33.3
22.2
16.7
11.1
8.3
5.6
Coil resistance Max. continuous
10 % at 23°C
( )
45
125
180
405
720
1620
2880
6480
170 % of
rated
voltage
voltage
at 85°C
Pick up
voltage(Max.)
at 23°C
80 % of rated
voltage
(HN type or
1C type only)
75 % of
rated
voltage
Drop out
voltage(Min.)
at 23°C
Power consumption
at rated
voltage
5 % of
rated
voltage
approx. 0.2W
Specification
Contact material
Contact resistance
(1)
Operate time
Release time
(1)
(1)
AgNi / Ag SnO alloy
100m
Max. (1A/6VDC by 4 pipes m
meter)
10ms Max.
5ms Max.
1000M
Min. (DC 500V)
:
AC 1000V , 50/60Hz 1 min.
Insulation resistance
(1)
Dielectric strength
(1)
Between open contact
Between contact and coil
:
AC 4000V , 50/60Hz 1 min.
Vibration resistance
Operating extremes
Damage limit
Shock resistance
Operating extremes
Damage limits
Mechanical
Life expectancy
Electrical
Operating ambient temperature
Weight
Note (1) initial value
10
10
30G
100G
10,000,000 operations
(frequency 18,000 operations/hr)
100,000 operations
(frequency 900 operations/hr)
-40°C +85°C (no freezing)
Approx. 8g
55Hz , amplitude 1.5 mm
55Hz , amplitude 1.5 mm
Safety Approval
Certified
File No.
CSA / CUS
1245129
TUV
R 50006512
VDE
40006318
UL / CUL
E88991
115
SONG CHUAN
892
Safety Approval Rating
CSA / CUS
892
NO 7A 125VAC
5A 277VAC
NC 3A 125VAC
3A 277VAC
VDE
892
NO 5A 250VAC T85
NC 3A 250VAC T85
892H
NO 7A 250VAC T85
NC 5A 250VAC T85
892
NO 7A 125VAC
5A 277VAC
1/10HP 125VAC
1/6HP 277VAC
NC 3A 125VAC
3A 277VAC
892H
NO 10A 125VAC
7A 277VAC
TV-3
NC 5A 125VAC
5A 277VAC
UL /CUL
892H
NO 10A 125VAC
7A 277VAC
NC 5A 125VAC
5A 277VAC
NO/NC 4FLA/4LRA
120VAC
892
NO 7A 120VAC
5A 240VAC
NC 3A 120VAC
3A 240VAC
TUV
892H
NO 10A 120VAC
7A 240VAC
NC 5A 120VAC
5A 240VAC
Outline Dimensions
10.3
(0.406)
20
(0.787)
(0.614)
15.6
0.5-2
(0.020)
0.7-3
(0.028)
7.62
(0.300)
(0.016)
0.4
0.5-3
(0.020)
0.4-2
(0.016)
Wiring Diagram
BOTTOM VIEW
1C
1A
PC Board Layout
BOTTOM VIEW
10.16
(0.400)
7.62
(0.300)
1.3-5
(0.051)
(0.300)
2.54
(0.100)
116
7.62
(0.146)
3.7
SONG CHUAN
892
Engineering Data
Coil temperature rise
90
80
70
90
80
70
Coil temperature rise
)
)
Temperature rise (
60
50
40
30
20
10
5
60
50
40
30
20
10
5
Temperature rise (
10A
5A
7A
10A
5A
7A
60
80
100
120
140
160
180
60
80
100
120
140
160
180
% of Nominal Coil Voltage (at 23
)
% of Nominal Coil Voltage (at 85
)
Life expectancy(892H)
10
7
Life expectancy(892)
10
7
Number of operations
10
6
240VAC
Number of operations
10
6
240VAC
10
5
NC
NO
10
5
NC
NO
10
4
10
0
1
2
4
6
8
10
4
0
1
2
4
6
8
10
AC resistive load/Switching current(A)
AC resistive load/Switching current(A)
Operate time/Release time
20
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
70
Operate time
max
Time (ms)
min
avg
Release time
max
min
avg
80
90
100
110 120 130 140 150 160 170 180
% of Nominal coil voltage (at 23
)
————
All specifications subject to change.
Please contact Song Chuan for update.
————
117
