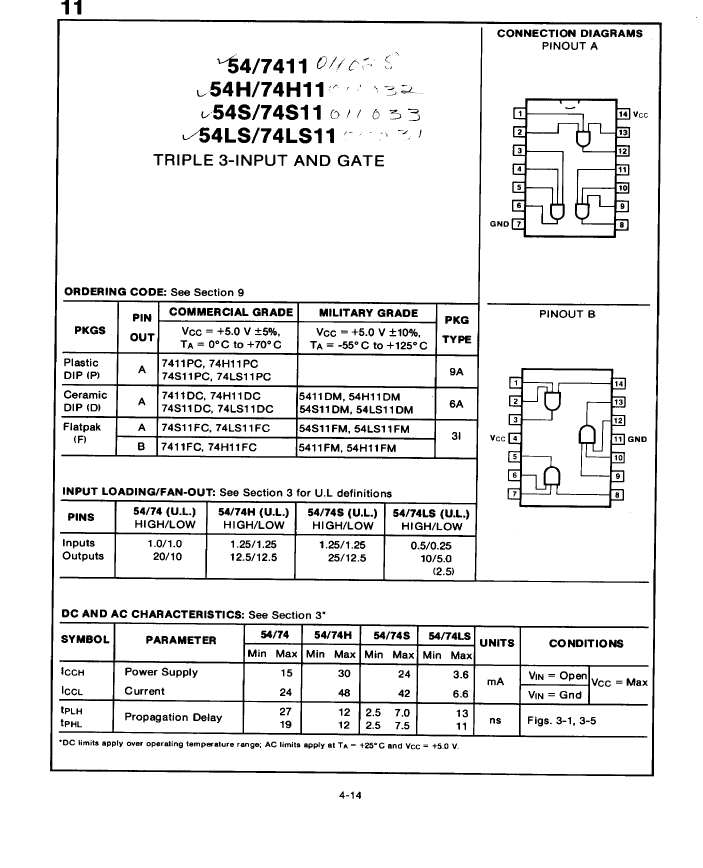

AND Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDFP14, DFP-14
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| package instruction | DFP-14 |
| Reach Compliance Code | unknown |
| series | TTL/H/L |
| JESD-30 code | R-PDFP-F14 |
| JESD-609 code | e0 |
| Logic integrated circuit type | AND GATE |
| MaximumI(ol) | 0.02 A |
| Humidity sensitivity level | 2A |
| Number of functions | 3 |
| Number of entries | 3 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL14,.3 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | 250 |
| Maximum supply current (ICC) | 48 mA |
| Prop。Delay @ Nom-Sup | 12 ns |
| propagation delay (tpd) | 12 ns |
| Certification status | Not Qualified |
| Schmitt trigger | NO |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| Base Number Matches | 1 |
