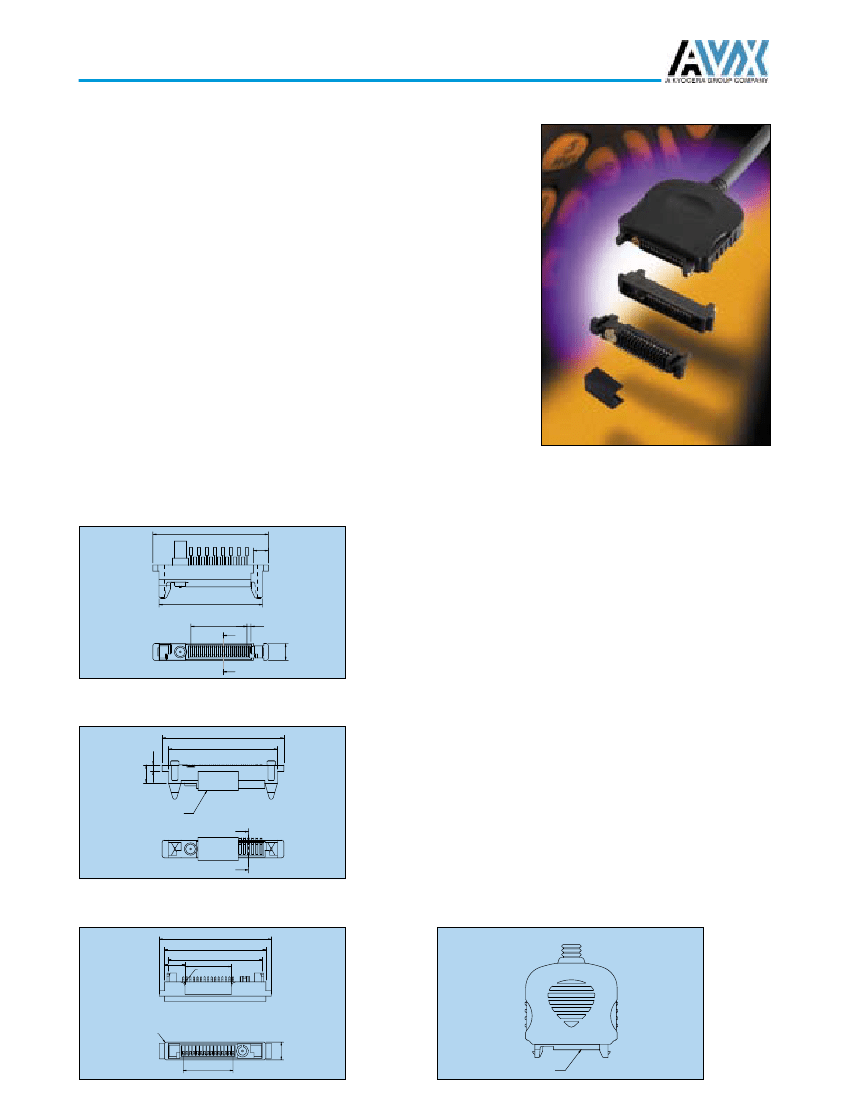

9157 MOBO

™

I/O Connector

GENERAL DESCRIPTION:

The 9157 series was specifically designed for portable

equipment.

AVX now offers this two-part system as a standard

product. The fixed SMT socket is designed to be housed

within the confined dimensional constraints of the portable

device.

The plug/cover connector has sprung contacts and is

designed for termination to accessory equipment. The

connector is designed to house fifteen signal contacts on a

1mm pitch rated at 1.5A. There is the option to include a

switching RF coax.

A cradle SMT plug connector for docking applications is

also available as standard and has the option of including a

SMT RF coax.

Whatever your requirements, the 9157 series can also be

customised to suit your application.

DRAWINGS

PLUG WIRE

28.80

3.72

KEY FEATURES AND BENEFITS

•

Patented 20° angled face on the socket gives

self-cleaning face when mated with plug.

• Metal Latching area integral to socket which saves

PCB real estate.

• Integral to socket is a mechanical 50Ω switching coax

for SMT termination.

• Single sprung plug contact design gives ten

thousand mating cycles and cleaning/wiping action.

• Customer has option to terminate own RF coax using

AVX custom tooling (see over).

• SMT plug has unique location pyramids that give positive

alignment to portable device, and assist blind mating.

25.80

14 PITCHES @ 1.00 = 14.00

1.00

SMT PLUG

28.80

25.80

1.50

4.20

APPLICATION

Suitable applications include:

• Mobile phones,

• PDA,

• Medical,

• Docking/Charging for any portable device.

4.25

SMT CAP SHOWN ON

2 VIEWS ONLY

SMT SOCKET

31.50

28.50

26.60

5.75

12.90/13.10

R1.20

2 POSN'S

COVER

R0.50

4 POSN'S

14 PITCHES @ 1.00 = 14.00

5.00

PLUG 10-9157-015-XXX-001
