I/O CONNECTORS
LATCH-N-LOK
™
Shielded, Latching I/O Connector System
User-friendly Plugging; Rugged Mechanical and Electrical Performance
DESCRIPTION
Latch-N-Lok
™
is a versatile cable-to-equipment connector
interface designed for end user convenience and durability.
The Latch-N-Lok
™
family includes PCB receptacles and
cable plug kits to connect signals or power. The
connection system provides integral shielding and
grounding for controlling EMI/ESD.
FEATURES & BENEFITS
Quick connect system provides positive latching with an
audible “click.”
Supports high speed, serial data transmission
High reliability design features “FCI Mini PV™” receptacle
contacts mating to phosphor bronze .025”sq pin contacts
in single and double row 0.100” pitch configurations.
Polarized housings prevent mis-mating; Keying options
prevent the mating of incorrect cables.
Choice of four popular colors: Off-white, Silver Gray, Pebble
Gray and Black.
Easy-to-assemble cable kits provide an over-molded look
without requiring an investment in custom mold tooling
Cable connectors accommodate a wide variety of cable
diameters and wires ranging from 20AWG to 32 AWG
Connector sizes range from 4 to 20 positions
Lead-free, RoHS compatible products satisfy environmental
regulations.
TARGET MARKETS / APPLICATIONS
POS Equipment
Medical Instrumentation
Test and Measurement
Inventory Equipment
USB Plus Power
Telecommunications
LATCH-N-LOK
™
SHIELDED, LATCHING I/O CONNECTOR SYSTEM

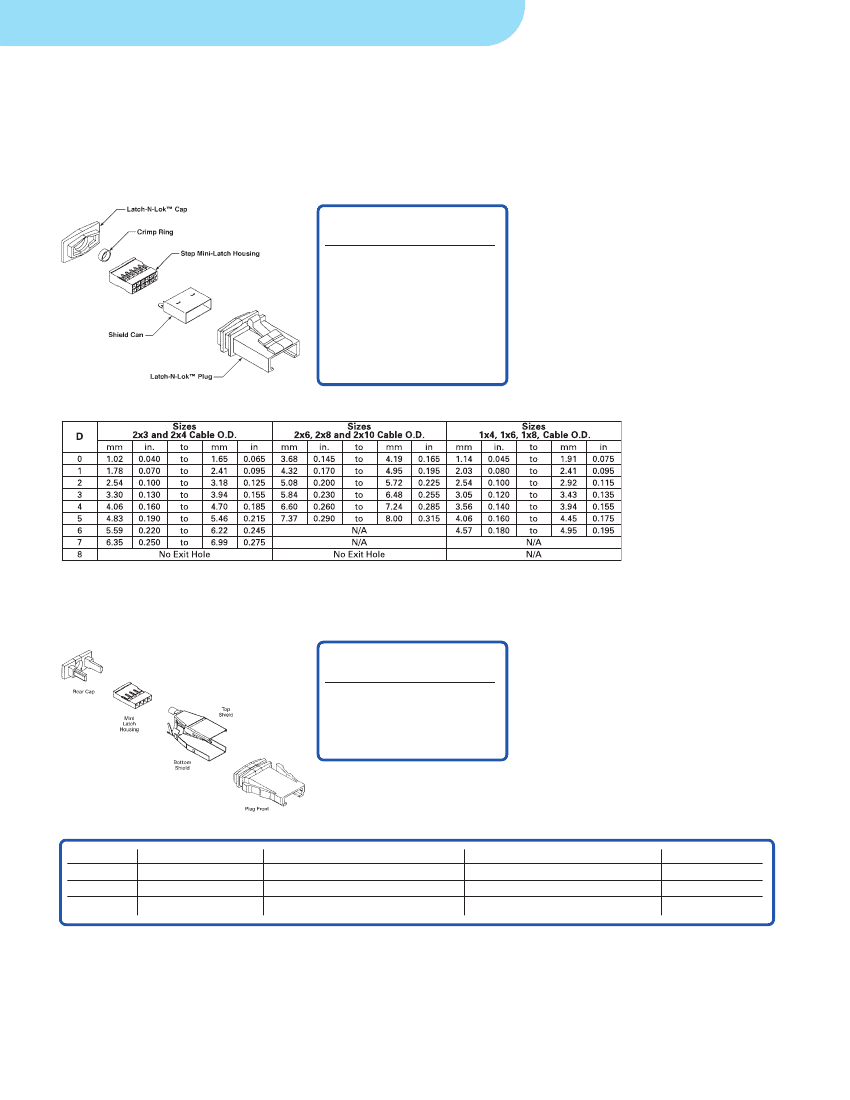

CABLE PLUG KITS, STANDARD SHIELDING
Contact
configuration
1x4
1x6
1x8
2x3
2x4
2x6
2x8
2x10
Base part
Number
91481
91482
91483
91485
91486
91487
91488
91489
PART NUMBER CONSTRUCTION
BBBBB-DCELF
B=5 digit base part number
D=Cable diameter (see table)
C=Color selection (see back page)
E=Cable Exit Style*; 1=Rear
LF=Indicates lead-free RoHS compatible
product
*Special right and left cable exit styles are
available for some double row configurations.
Consult print 91481
CABLE PLUG KITS, ENHANCED SHIELDING
Contact
configuration
1x4
1x8
2x3
2x4
Base part
Number
74901
74903
74902
98028
PART NUMBER CONSTRUCTION
BBBBB-DOCKLF
B=5 digit base part number
D=Cable diameter (see table)
C=Color selection (see back page)
K=Keying option (2x4, 98028 only, see print)
LF=Indicates lead-free RoHS compatible
product
D
6
7
8
1 x 4 Kit
5.08mm(0.200 in)
1 x 8 Kit
6.73mm(0.265 in)
2 x 3 Kit
6.35mm(0.250 in)
2 x 4 Kit
6.35mm(0.250 in)
7.11mm(0.280 in)
Additional information can be found at www.fciconnect.com/latchnlok

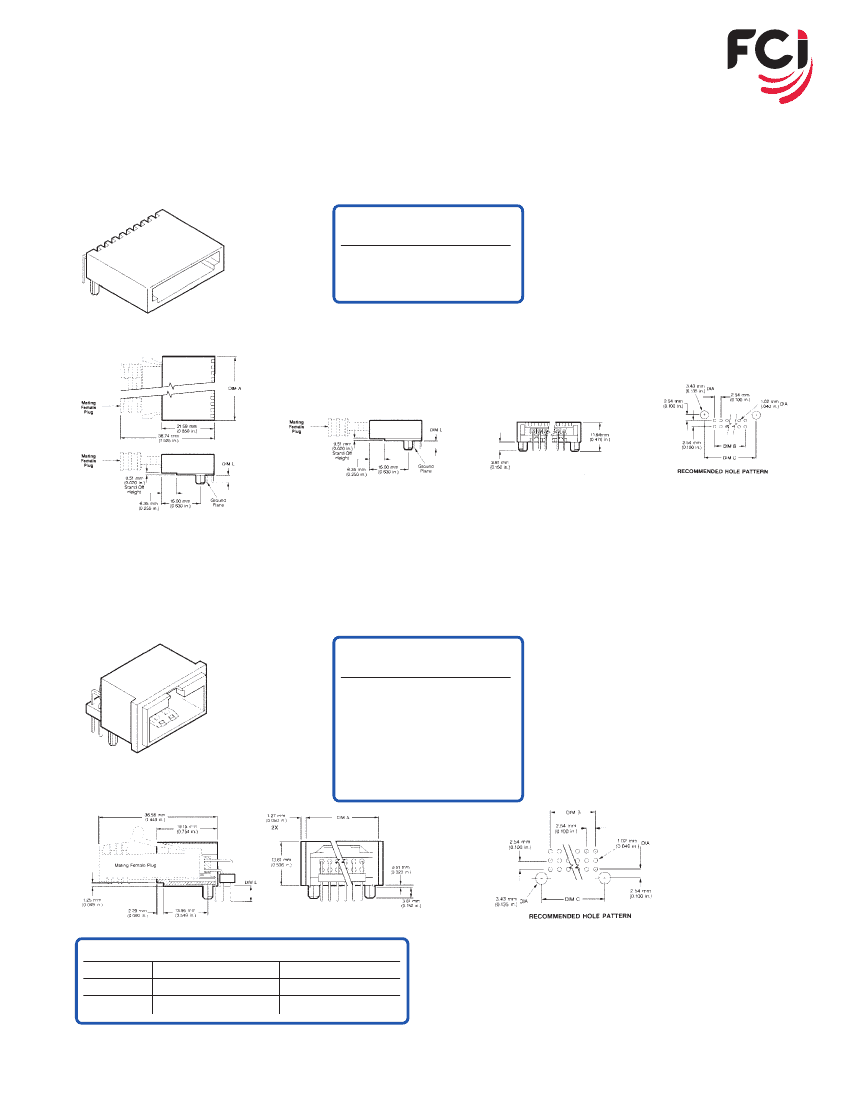

PCB RECEPTACLE RIGHT ANGLE SINGLE ROW
Contact
configuration
1x4
1x6
1x8
Base part
Number
69273
78304
69913
PART NUMBER CONSTRUCTION
BBBBB-SOCLF
B=5 digit base part number
S=Solder tail length (see chart below)
C=Color selection (see back page)
LF=Indicates lead-free RoHS compatible
product
PCB RECEPTACLE RIGHT ANGLE DOUBLE ROW
Contact
Base part
configuration
Number
2x3
78097
2x4
69958
2x4
74355*
78098
2x6
2x8
69901
2x10
79610
*External Shield version
PART NUMBER CONSTRUCTION
BBBBB-SOCKLF
B=5 digit base part number
S=Solder tail length (see chart below)
C=Color selection (see back page)
K=Keying designation (2x4, 74355 only,
see print)
LF=Indicates lead-free RoHS compatible
product
Solder Tail Length
S
Single Row
0
3.81mm(0.150 in)
1
2.79mm(0.110 in)
Double Row
5.08mm(0.200 in)
3.30mm(0.130 in)
Additional information can be found at www.fciconnect.com/latchnlok
LATCH-N-LOK
™
SHIELDED, LATCHING I/O CONNECTOR SYSTEM
MATERIALS - PCB RECEPTACLE
Main Housing: Polycarbonate UL 94 V-O
Contact Insulator: 20% min glass-filled nylon UL 94 V-O
Main Contacts: 0.64mm (0.025in) square posts;
3/4 hard phosphor bronze plated with 30u Gold/GXT
over 50u Nickel
Ground Contact base metal: 3/4 hard phosphor
bronze plated with 200u pure tin
Shield: 1/2 hard minimum brass C260 plated with
100u bright tin over 50u nickel
MECHANICAL PERFORMANCE
Mating force: 13 lbs max.
Unmating force: 3.5 lbs max.
Latch Retention: 20 lbs.
Latch Durability: 4000 cycles.
Retention force, Strain Relief Plug to cable:
15 lb. Minimum
Contact durability: 1000 mating cycles
MATERIALS - CABLE PLUG KITS
Plugs and End caps: Polycarbonate UL 94 V-O
Mini-latch contact housing: 20% min glass-filled nylon
UL 94 V-O, Black
Wire contacts: Not included; Use FCI Mini-PV
CuNi/BeCu gold or GXT plated receptacle contacts
Shield Can: 3/4 hard brass C260 plated with 100u
bright tin over 50u nickel
TECHNICAL DOCUMENTS
Product Specification: GS-12-003
Instruction Sheet: TA-924
ELECTRICAL PERFORMANCE
Contact resistance (LLCR) main contacts: 35 m max.
Ground terminal/Shield contact resistance: 14 m max.
Current Rating: 3.0 amp continuous per contact
Cable Assembly Shielding: 20 db minimum from 30 to
500 Mhz
PACKAGING
PCB Receptacles - Trays in boxes
Cable Plug kits - Bags in bulk
HOUSING COLOR OPTIONS
2=Off-white
4=Black
7=Silver gray
9=Pebble gray
Additional information can be found at www.fciconnect.com/latchnlok
FCI - Americas : 1 (800) 237 2374 - Europe : 33 1 39 49 21 83 - Asia/Pacific : 65 6549 6666
www.fciconnect.com
950503-001
CDC-LATNLOK-08/06-E
Printed on recyclable paper
