852-40-044-30-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 852-40-044-30-001000

852-40-044-30-001000: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size409KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

852-40-044-30-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	852-40-044-30-001000	-	-	View	Buy Now

852-40-044-30-001000 Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

852-40-044-30-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	852
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	44
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

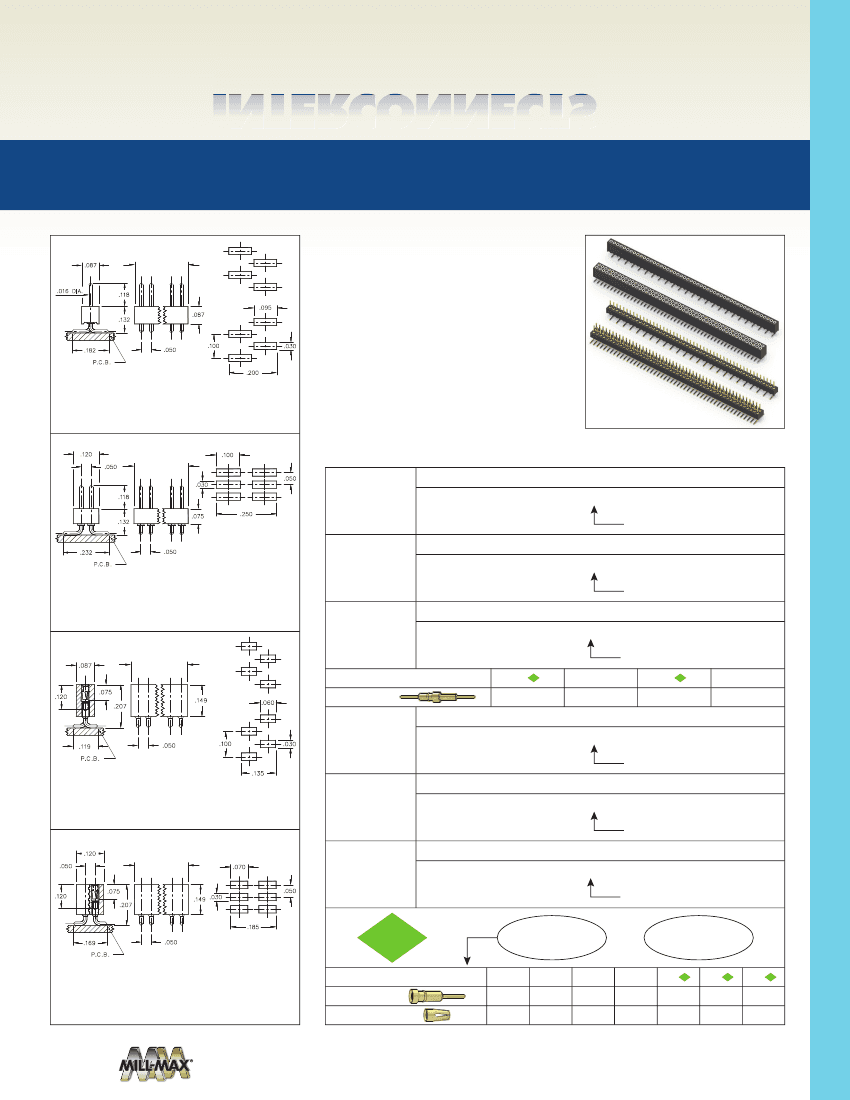

SERIES 850, 851, 852, 853 • 050” GRID SURFACE MOUNT

HEADERS AND SOCKETS • SINGLE AND DOUBLE ROW STRIPS

Left Hand

Footprint

•

Single row interconnects having an even

•

.087

(Number of Pins

X .050”) + .015”

.016 DIA.

.118

.132

Right Hand

Footprint

.087

.095

•

.030

.182

P.C.B.

.050

.100

.200

•

Coplanarity .005”. For pin counts >20 positions, consult

Technical Support.

FIG. 1

.120

.050

.100

number of pins are now available with a left

or right hand footprints

Headers (850 and 852) use MM #4006 pins.

See page 208 for details

Sockets (851 and 853) use MM #4890-0

receptacles and accept pin diameters from

.015”-.021”. See page 160 for details

Receptacles use Hi-Rel, 3- nger BeCu #11

contact rated at 3 amps. See page 251 for

details

Insulators are high temperature thermoplastic,

suitable for all soldering operations

(Number of Pins

X .050”/2) + .015”

.030

.118

.075

.250

.050

ORDERING INFORMATION

FIG. 1L

FIG. 1R

FIG. 2

SPECIFY PLATING CODE XX=

Pin Plating

Single Row Header, Left Hand Footprint, Odd or Even # of Pins

850 XX 0_ _ 30 001000

Specify number of pins

02-50

.132

Footprint

.050

.232

P.C.B.

Single Row Header, Right Hand Footprint, Even # of Pins

850 XX 0_ _ 30 002000

Specify number of pins

02-50

Coplanarity .005”. For pin counts >40 positions, consult

Technical Support.

FIG. 2

Left Hand

Footprint

.087

Double Row Header, Even # of Pins

852 XX _ _ _ 30 001000

Specify number of pins

µ”

(Number of Pins

X .050”) + .015”

.075

.207

.149

004-100

200

µ”

Sn/Pb

200

µ”

.120

Right Hand

Footprint

.060

.119

P.C.B.

.050

.100

.030

FIG. 3L

FIG. 3R

FIG. 4

Single Row Socket, Left Hand Footprint, Odd or Even # of Pins

851 XX 0_ _ 30 001000

Specify number of pins

.135

Coplanarity .005”. For pin counts >20 positions, consult

Technical Support.

FIG. 3

.120

.050

Single Row Socket, Right Hand Footprint, Even # of Pins

851 XX 0_ _ 30 002000

Specify number of pins

02-50

(Number of Pins

X .050”/2) + .015”

.075

.207

.070

.120

.149 .030

.050

Specify number of pins

RoHS - 2

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.185

.169

P.C.B.

.050

Footprint

2011/65/EU

XX=Plating Code

See Below

µ”

Coplanarity .005”. For pin counts >40 positions, consult

Technical Support.

FIG. 4

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200

µ”

200

µ”

100

µ”

200

µ”

Sn/Pb 200

µ”

Sn/Pb 200

µ”

Sn/Pb

200

µ”

100

µ”

Sn/Pb

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

44 Plating Non-Standard

PAGE 37 | INTERCONNECTS

Double Row Socket, Even # of Pins

853 XX _ _ _ 30 001000
