88146-2641-WT datasheet, PDF - EEWORLD Datasheet

88146-2641-WT: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size165KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

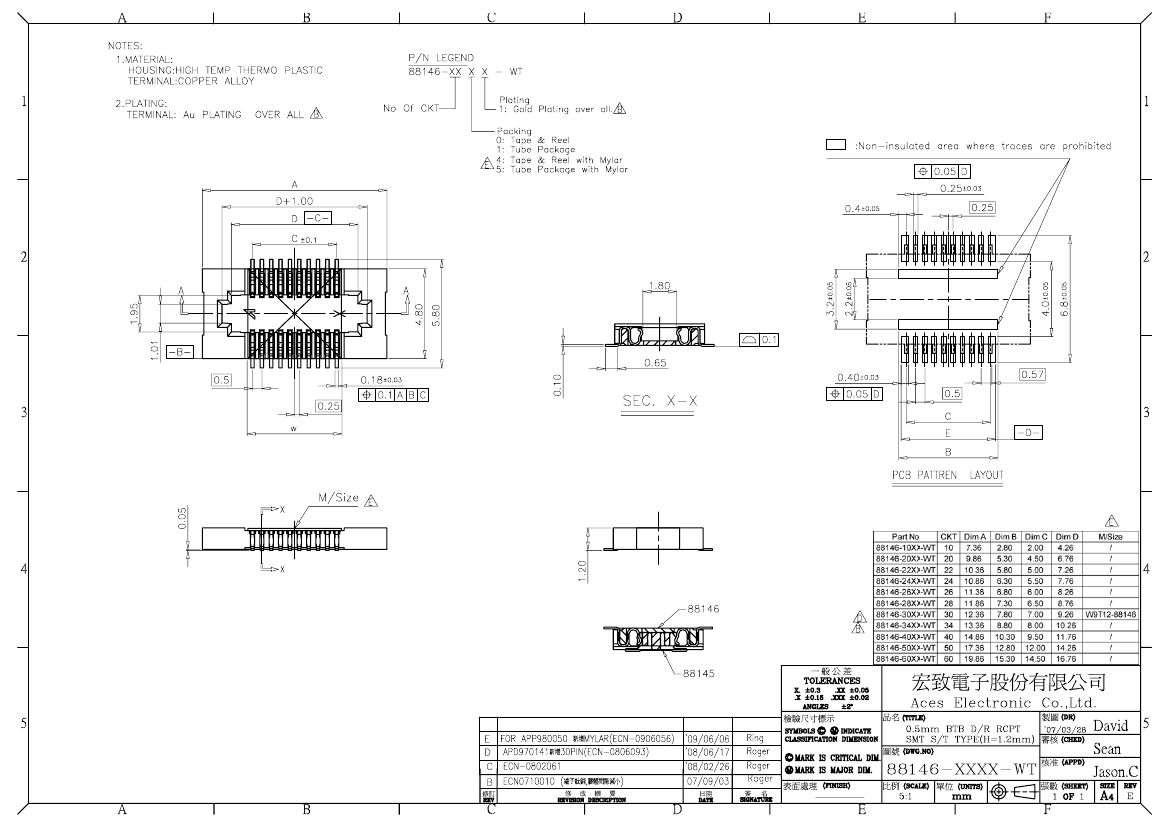

88146-2641-WT Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.189 inch
subject depth	0.047 inch
body length	0.447 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	70 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	88146
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.4102 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
Base Number Matches	1
