NOTES:
REFERENCE STANDARD IEC60169-11
I.
ELECTRICAL PERFORMANCE -
NOMINAL IMPEDANCE
FREQUENCY RANGE
VSWR
PIM
INSERTION LOSS
INSULATION RESISTANCE
D.W.V
CONDUCTOR RESISTANCE
II.
MECHANICAL PERFORMANCE -
(NUT) TORQUE
(NUT) WHORL PULL
TENSILE FORCE(CABLE-CONNECTOR)
TORSION(CABLE-CONNECTOR)
III. MATERIAL AND PLATING -
INNER CONDUCTOR
OUTER CONDUCTOR
NUT
GASKET
INSULATOR
IV.
ENVIRONMENTAL -
TEMP. RANGE
WEATHER STANDARD
THERMAL SHOCK
VIBRATION
SHOCK
WATERPROOFING STANDARD
V.
VI.
:
:
:
:
:
:
-40°C TO +85°C
IEC 60068 40/ 085/ 21
IEC 60068-2-14-NA
IEC 60068-2-6-FC
IEC 60068-2-27
IP68
4.1/9.5
MALE
INTERFACE
+0"
-0.039"
+0
[10.00
]
-1.00
0.394
:
:
:
:
:
SPRING COPPER ALLOY, PLATING = Ag (5µm MIN.)
BRASS, PLATING = COPPER-TIN-ZINC (2µm MIN.)
BRASS, PLATING = NI (5µm MIN. )
SILICONE RUBBER
TPX
:
:
:
:
10-12 N.m
500 N
500 N
5 N-m
:
:
:
:
:
:
:
:
50
DC-3.0 GHz
1.100 MAX.
-160dBc MAX.(2x43dBm)
0.010 dB MAX.
5000 M
MIN.
3000 VRMS
OUTER CONDUCTOR 0.5 m
INNER CONDUCTOR 1.0 m
332120
REVISIONS
REV
DRAWING NO.
THIRD ANGLE PROJ.
A
RELEASE TO MFG.
DESCRIPTION
13-Dec-13
DATE
ECO
--
AAP/BG
APPR
SCALE
MAX.
MAX.
1.000
2.071
[52.60]
ASSEMBLY : INNER AND OUTER CONDUCTOR INSTALLED
ROHS COMPLIANT
+0.039"
-0"
+1.00
[20.00
]
-0
0.787
0.866 ON HEX
[22.00]
0.020" [0.50]
x 45 $
0.944
[24.00]
0.866 ON FLATS
[22.00]
0.744 ON FLATS
[18.90]
RECOMMENDED CABLE
STRIPPING DIMENSIONS
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015 (0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
SEE NOTES
REFERENCE
A ARUN PRABU
A ARUN PRABU
B.C. GLEISSNER
04-Oct-13
04-Oct-13
13-Dec-13
DATE
DATE
DATE
TITLE
ENGINEER
APPROVED
CAD FILE

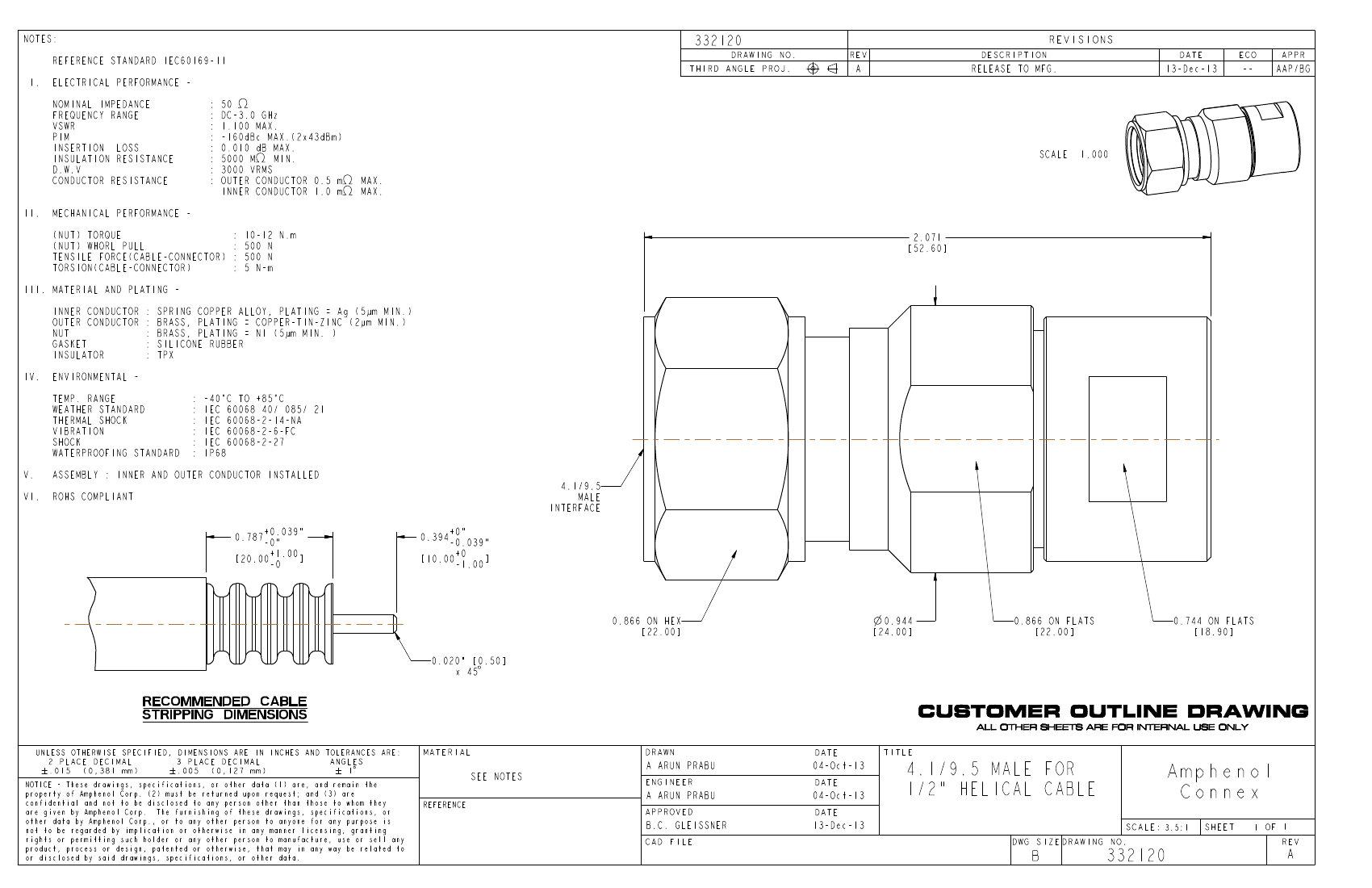

4.1/9.5 MALE FOR
1/2" HELICAL CABLE
DWG SIZE DRAWING NO.
Amphenol
Connex
SCALE: 3.5:1
SHEET
1 OF 1
REV
B
332120
A
