NOTES:
1. MATERIALS AND FINISHES:
BODY - ZINC DIE CAST, NICKEL PLATING
CONTACT - PHOSPHOR BRONZE, GOLD PLATING (.000003 THICK)
@ CONTACT AREA ONLY, TIN PLATING AT TAIL, NICKEL PLATED OVERALL
INSULATOR - POLYPROPYLENE
FORK PIN - BRASS, TIN PLATING
GROUNDNG TERMINAL - STEEL, TIN PLATING
2. ELECTRICAL:
A. IMPEDANCE: 50 OHM
B. FREQUENCY RANGE: DC - 1 GHz
C. DIELECTRIC WITHSTANDING VOLTAGE: 1500 VRMS, MIN.
3. MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -55 $C TO 85 $C
4. PACKAGING:
A. PACKAGED IN PACKING TRAYS
B. QUANTITY PER TRAY: 40
BNC INTERFACE
THIRD ANGLE PROJ.
REV
REVISIONS
A
B
RELEASE TO MFG.
DESCRIPTION
DOC ERROR 8.9 WAS 8.6,7.25 WAS 7.55,14.7 WAS 14.3
1/24/14
DATE
3/17/14
49931
49863
ECO
APPR
EW
EW
SCALE
1.000
34.9 REF
1/2"-28UNEF-THREAD
0.5
14.7 #
0.3
13.1 #
0.3
6.3
11.7
0.5
4 #
0.3
4.1 #
0.3
12.83
0.51 REF
12 #
0.3
8.9 #
0.3
7.25 #
0.3
5.08 #
0.3
0.72 REF
0.76 REF
PANEL CUTOUT
10.16
2
TYP(2)
5.08
GROUND
0.9
TYP(2)
2.54
SIGNAL
GROUND
SIGNAL
5.08
RECOMMENDED PCB LAYOUT
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
6 - 30mm
30 - 120mm
ANGLES
# 0.05mm
#
0.1mm
# 0.3mm
#
0.2mm
# $
1
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon requiest; and (3) arre
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the funishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implicatioin or otherwise in any manner licensing,
granting
rights to permitting such holder or any other sperson to manufacture, use or
sell any
product, process or design, patented or otherwsie, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
MATERIAL
-
-
REFERENCE
CONFIGURATION LEVEL:
DRAWN
ERIC WANKOFF
ENGINEER
ERIC WANKOFF
APPROVED
K. CAPOZZI
DATE
8-Jan-14
DATE
8-Jan-14
DATE
1/24/14

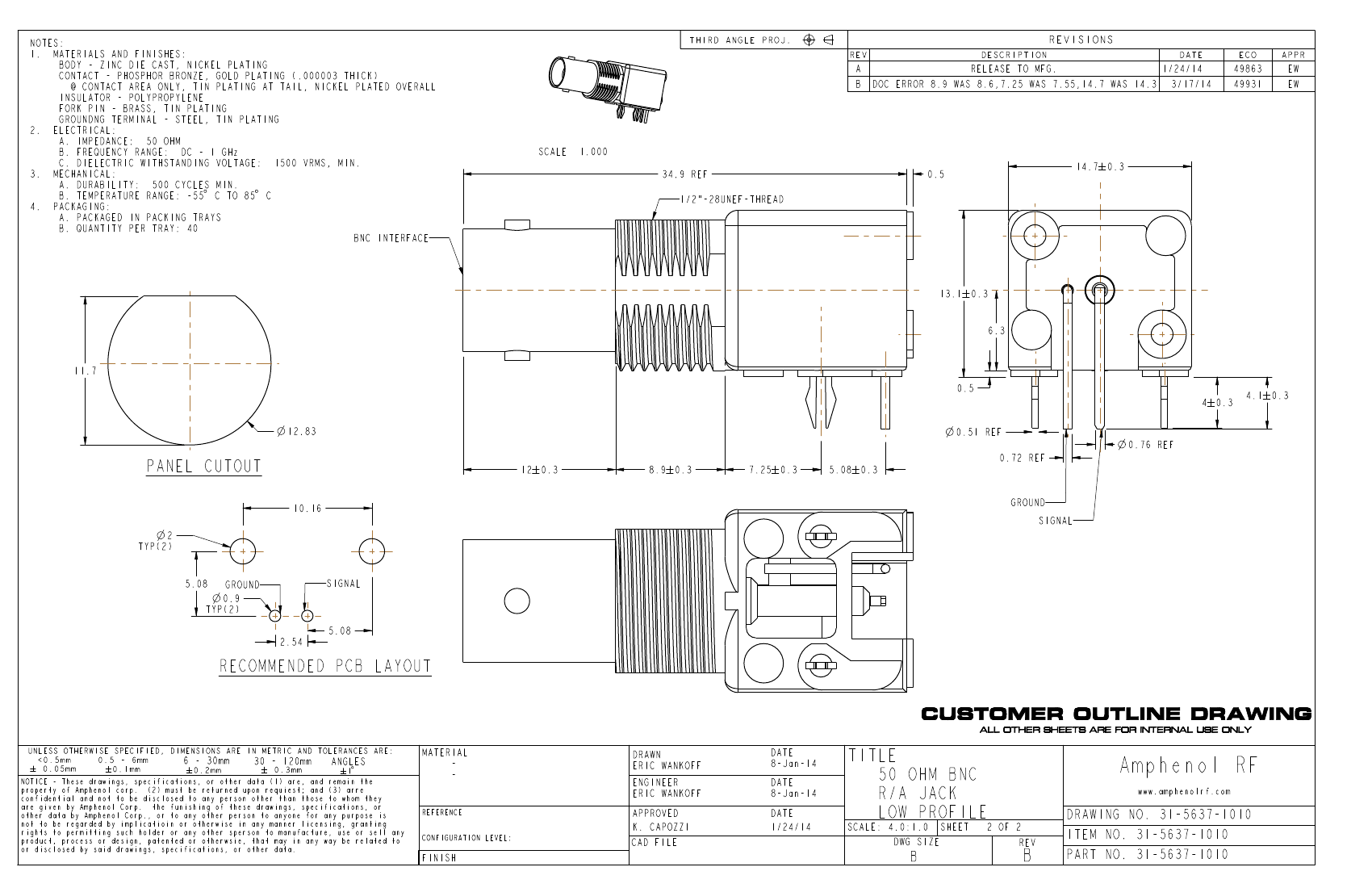

TITLE
50 OHM BNC
R/A JACK
LOW PROFILE
SCALE: 4.0:1.0
DWG SIZE
SHEET
Amphenol RF
www.amphenolrf.com
FINISH
CAD FILE
2 OF 2
DRAWING NO. 31-5637-1010
B
REV
B
ITEM NO. 31-5637-1010
PART NO. 31-5637-1010
