TT5090S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TT5090S

TT5090S: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size152KB，2 Pages; ManufacturerEMC Technology RF Labs

Download Datasheet Parametric View All

TT5090S Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max

TT5090S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	EMC Technology RF Labs
Reach Compliance Code	compliant
Other features	I/P POWER-MAX(PEAK)=1W
Nominal attenuation	9 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	20 dBm
JESD-609 code	e0
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

TITLE:

SPECIFICATION CONTROL DRAWING

(0) = .0 DB AND (5) = .5 DB

WHOLE DB VALUE (00 THRU 20)

PART IDENTIFIER:

TT5XXXS

DESCRIPTION:

CHIP ATTENUATOR

ASSEMBLY DWG:

1900854

1.0

SPECIFICATIONS

1.1

ELECTRICAL

1.1.1

IMPEDANCE: 50 OHMS NOMINAL.

1.1.2

FREQUENCY RANGE: DC-18GHZ

1.1.3

ATTENUATION VALUES AVAILABLE: 0-20DB IN 0.5DB INCREMENTS.

1.1.4

ATTENUATION ACCURACY: SEE TABLE.

ATTENUATION ACCURACY

DC - 4 GHZ

4 - 8 GHZ

8 - 12.4 GHZ

-0,+.3

-0,+.5

±0.3

±0.5

±0.4

±0.5

±0.75

+0.5,-3.0

+0.5,-3.5

±1.0

+0.5,-4.0

+1.0,-6.0

1 -3

4-6

7 - 10

11 - 15

16 - 20

1.1.5

1.1.6

12.4 - 18 GHZ

-0,+.5

±0.5

±0.75

±1.0

---

1.2

1.3

VSWR: 1.30 MAX.

INPUT POWER: 100 MILLIWATTS CW.

1.1.6.1 FULL RATED POWER TO 125°C, DERATED LINEARLY TO 0 WATTS AT 150°C.

1.1.6.2 PEAK POWER, 1 WATT FOR 10US PULSE WIDTH @ 1% DUTY CYCLE.

MECHANICAL:

1.2.1

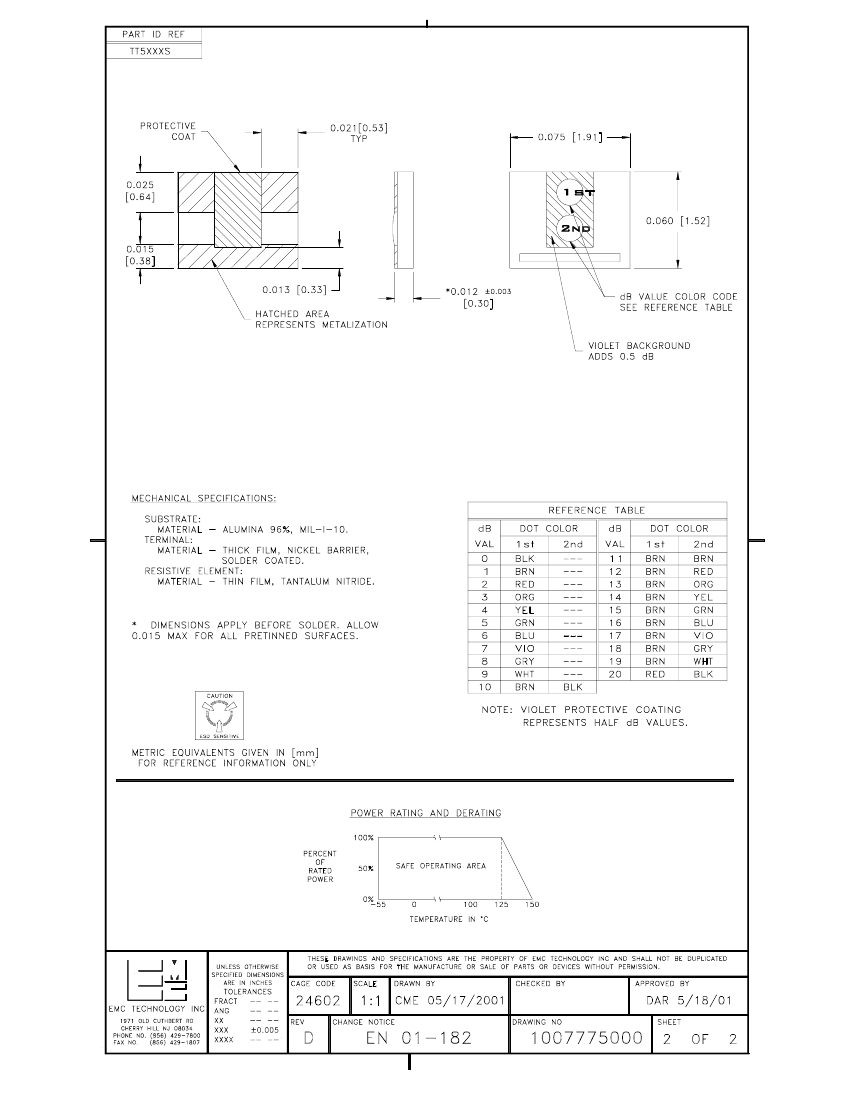

OUTLINE DWG: SEE SHEET 2.

1.2.2

WORKMANSHIP: PER MIL-PRF-55342.

ENVIRONMENTAL:

1.3.1

ALTITUDE:

1.3.1.1 NON-OPERATING: SEA LEVEL TO 50,000 FEET.

1.3.1.2 OPERATING: SEA LEVEL TO 50,000 FEET.

1.3.2

TEMPERATURE RANGE:

1.3.2.1 NON-OPERATING: -55 C TO +150 C.

1.3.2.2 OPERATING: -55°C TO +150°C.

1.3.3

VIBRATION: PER MIL-STD-202, METHOD 204, COND. D.

1.3.4

SHOCK: PER MIL-STD-202, METHOD 213, COND. I.

1.3.5

MOISTURE RESISTANCE: PER MIL-STD-202, METHOD 106 EXCEPT SUBCYCLE STEPS 7A AND 7B AND POLARIZATION

NOT APPLICABLE.

MARKED WITH COLOR DOT(S), VIOLET BACKGROUND ADD 0.5DB.

LEGIBILITY AND PERMANENCY PER MIL-STD-130.

2.0

UNIT MARKING:

3.0

QUALITY ASSURANCE:

3.1

SAMPLE INSPECT PER ANSI/ASQC Z1.4 GENERAL INSPECTION, LEVEL II, AQL = 1.0.

3.1.1 VISUAL AND MECHANICAL EXAMINATION FOR CONFORMANCE TO OUTLINE DRAWING REQUIREMENTS.

3.1.2 MEASURE AND RECORD DCA AND IMPEDANCE.

3.1.3 ACCEPTANCE LIMITS:

3.1.3.1 IMPEDANCE: 50_ ±5%.

3.1.3.2 ATTENUATION: SEE ELECTRICAL 1.1.4.

TEST DATA REQUIREMENTS:

3.2.1

NO TEST DATA REQUIRED FOR CUSTOMER.

3.2.2

DATA RETENTION – 24 M0NTHS

STANDARD PACKING PER MC0023.

3.2

4.0

PACKAGING:

ENG

PUR

MFG

PLAN

EMC TECHNOLOGY, INC

1971 OLD CUTHBERT ROAD

CHERRY HILL, NJ 08034

CAGE CODE # 24602

CHANGE NOTICE

EN 01-182

DWG #

REV LVL

SHEET

1007775000
