W052-0801-200-Z: DescriptionBoard Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size241KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

W052-0801-200-Z Overview

Board Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

W052-0801-200-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.445 inch
subject depth	0.786 inch
body length	0.717 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P8
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	W0
Mixed contacts	YES
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

ELECTRICAL:

VOLTAGE RATING: 250VAC RMS

CURRENT: 8A

CONTACT RESISTANCE: 20m

Ω

Max.

INSULATOR RESISTANCE: 1000M

Ω

Min.

DIELECTRIC WITHSTANDING VOLTAGE: 1500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -25° C TO +85° C

MATERIAL:

INSULATOR: Glass Re-enforced Thermoplastic

CONTACT: Copper Alloy

PLATING: Tin Plated 120µ" Min. Over 30 ~ 50µ" Nickel Overall

MECHANICAL:

RETENTION FORCE: 1.5 Kgf Min. Per Contact

CONTACTS

2

4

6

8

10

12

A

--

4.2

8.4

12.6

16.8

21.0

B

5.6

9.8

14.0

18.2

22.4

26.6

CONTACTS

14

16

18

20

22

24

A

25.2

29.4

33.6

37.8

42.0

46.2

B

30.8

35.0

39.2

43.4

47.6

51.8

HOW TO ORDER:

W

0

5

SERIES:

2

-

X

0

X

-

2

0

X

-

Z

TYPE NUMBER:

PLATING OVERALL:

1 - FULL TIN OVER NICKEL

2 - FULL Au FLASH

NUMBER OF CONTACTS:

SELECTIVE PLATING:

02 Thru 24

0 - Au FLASH CONTACT AREA/TIN TAIL

VARIATIONS:

3 - 15u" Au CONTACT AREA/TIN TAIL

1 - UL94V-2

4 - 30u" Au CONTACT AREA/TIN TAIL

2 - UL94V-0

MOUNTING OPTION:

1 - W/ PEG

RoHS COMPLIANT

2 - W/OUT PEG

Rev

0

Issued

Apv.

GT

Date

12/06/05

SMP TECHNOLOGY, INC.

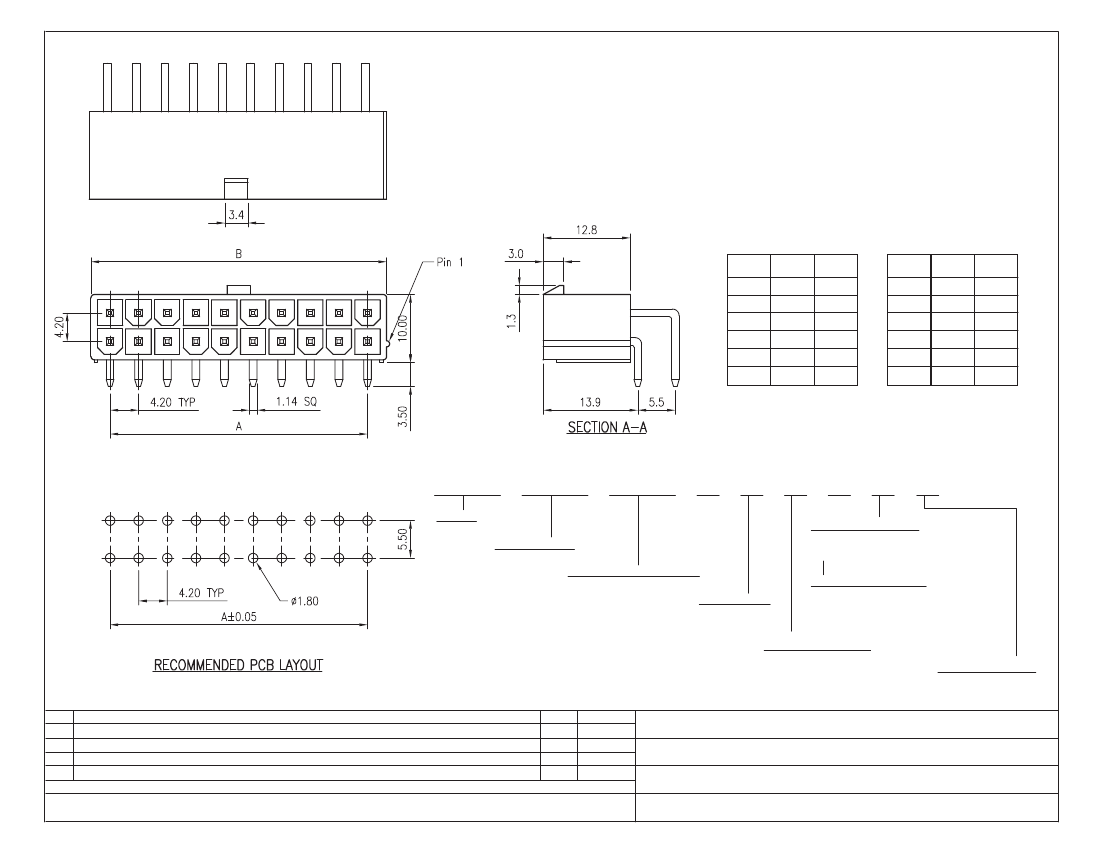

Power Connector; 4.2mm Pitch; Right Angle; Without Mounting Peg

SCALE

TOL. DEC.

.X +/- 0.35

MAT'L

.XX +/- 0.25

.XXX +/-

FINISH

ANGLE +/-

UNIT: mm / in

SERIES: W 052-XX0X-20X-Z

Pg: 1
