336209-12-0200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 336209-12-0200

336209-12-0200: DescriptionRF cable assemblies tnc jack-amc RA plug 113mm cable, 200mm; CategoryThe connector; File Size129KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

336209-12-0200 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336209-12-0200	-	-	View	Buy Now

336209-12-0200 Overview

RF cable assemblies tnc jack-amc RA plug 113mm cable, 200mm

336209-12-0200 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Cable Assemblies
RoHS	Yes
Cable Type	1.13 mm Coax
Impedance	50 Ohms
Length	200 mm
Connector A Body Style	Bulkhead
Connector A Series	TNC
Connector B Body Style	Right Angle
Connector B Series	AMC
Connector A Gende	Jack (Female)
Connector A Polarity	Normal
Connector B Gende	Plug (Male)
Connector B Polarity	Normal

Preview

Download Datasheet

View All

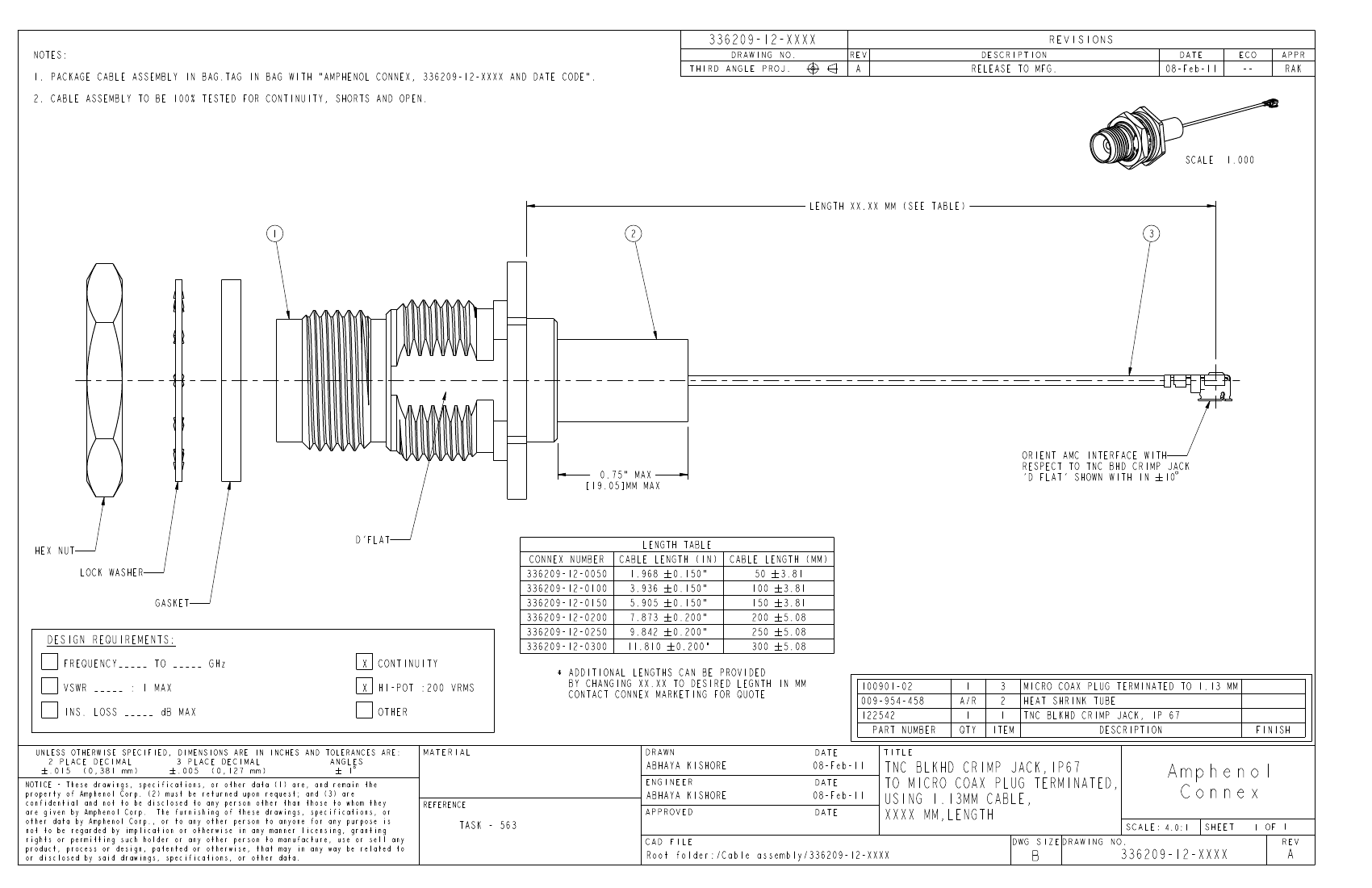

NOTES:

1. PACKAGE CABLE ASSEMBLY IN BAG.TAG IN BAG WITH "AMPHENOL CONNEX,

2. CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY, SHORTS AND OPEN.

336209-12-XXXX AND DATE CODE".

336209-12-XXXX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

RELEASE TO MFG.

DESCRIPTION

08-Feb-11

DATE

ECO

APPR

RAK

SCALE

1.000

LENGTH XX.XX MM (SEE TABLE)

0.75" MAX

[19.05]MM MAX

ORIENT AMC INTERFACE WITH

RESPECT TO TNC BHD CRIMP JACK

'D FLAT' SHOWN WITH IN

10 $

HEX NUT

LOCK WASHER

GASKET

D'FLAT

336209-12-0050

336209-12-0100

336209-12-0200

336209-12-0150

CONNEX NUMBER

CABLE LENGTH (IN)

1.968

3.936

7.873

9.842

5.905

#0.150"

LENGTH TABLE

CABLE LENGTH (MM)

100

200

250

300

150

#3.81

#5.08

#0.150"

#0.200"

DESIGN REQUIREMENTS:

FREQUENCY_____ TO _____ GHz

VSWR _____ : 1 MAX

INS. LOSS _____ dB MAX

336209-12-0250

336209-12-0300

11.810

#0.200"

CONTINUITY

HI-POT :200 VRMS

OTHER

* ADDITIONAL LENGTHS CAN BE PROVIDED

BY CHANGING XX.XX TO DESIRED LEGNTH IN MM

CONTACT CONNEX MARKETING FOR QUOTE

100901-02

122542

009-954-458

PART NUMBER

TITLE

A/R

QTY

ITEM

MICRO COAX PLUG TERMINATED TO 1.13 MM

HEAT SHRINK TUBE

TNC BLKHD CRIMP JACK, IP 67

DESCRIPTION

FINISH

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015

(0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

ABHAYA KISHORE

08-Feb-11

DATE

ENGINEER

REFERENCE

APPROVED

CAD FILE

ABHAYA KISHORE

TASK - 563

TNC BLKHD CRIMP JACK,IP67

TO MICRO COAX PLUG TERMINATED,

USING 1.13MM CABLE,

XXXX MM,LENGTH

Amphenol

Connex

SCALE: 4.0:1

SHEET

1 OF 1

REV

Root folder:/Cable assembly/336209-12-XXXX

DWG SIZE DRAWING NO.

336209-12-XXXX

336209-12-0200 Related Products

	336209-12-0200	336209-12-0100	336209-12-0150	336209-12-0050	336209-12-0300	336209-12-0250
Description	RF cable assemblies tnc jack-amc RA plug 113mm cable, 200mm	RF cable assemblies tnc BH JK ip67-amc plg 1.13 cbl 100 mm	RF cable assemblies tnc jack-amc RA plug 113mm cable, 150mm	RF cable assemblies tnc jack-amc RA plug 113mm cable, 50mm	RF cable assemblies tnc jack-amc RA plug 113mm cable, 300mm	RF cable assemblies tnc jack-amc RA plug 113mm cable, 250mm
Manufacture	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Yes	Yes	Yes	Yes	Yes	Yes
Cable Type	1.13 mm Coax	1.13 mm Coax	1.13 mm Coax	1.13 mm Coax	1.13 mm Coax	1.13 mm Coax
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Length	200 mm	100 mm	150 mm	50 mm	300 mm	250 mm
Connector A Body Style	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead
Connector A Series	TNC	TNC	TNC	TNC	TNC	TNC
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Connector B Series	AMC	AMC	AMC	AMC	AMC	AMC
Connector A Gende	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)
Connector A Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Connector B Gende	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B Polarity	Normal	Normal	Normal	Normal	Normal	Normal
