10/100Mbps SMD Transformer
& Choke 000-7086-37R
1.005
MAX
.080 TYP
Midcom
part #
(date code)
7X.100
.700

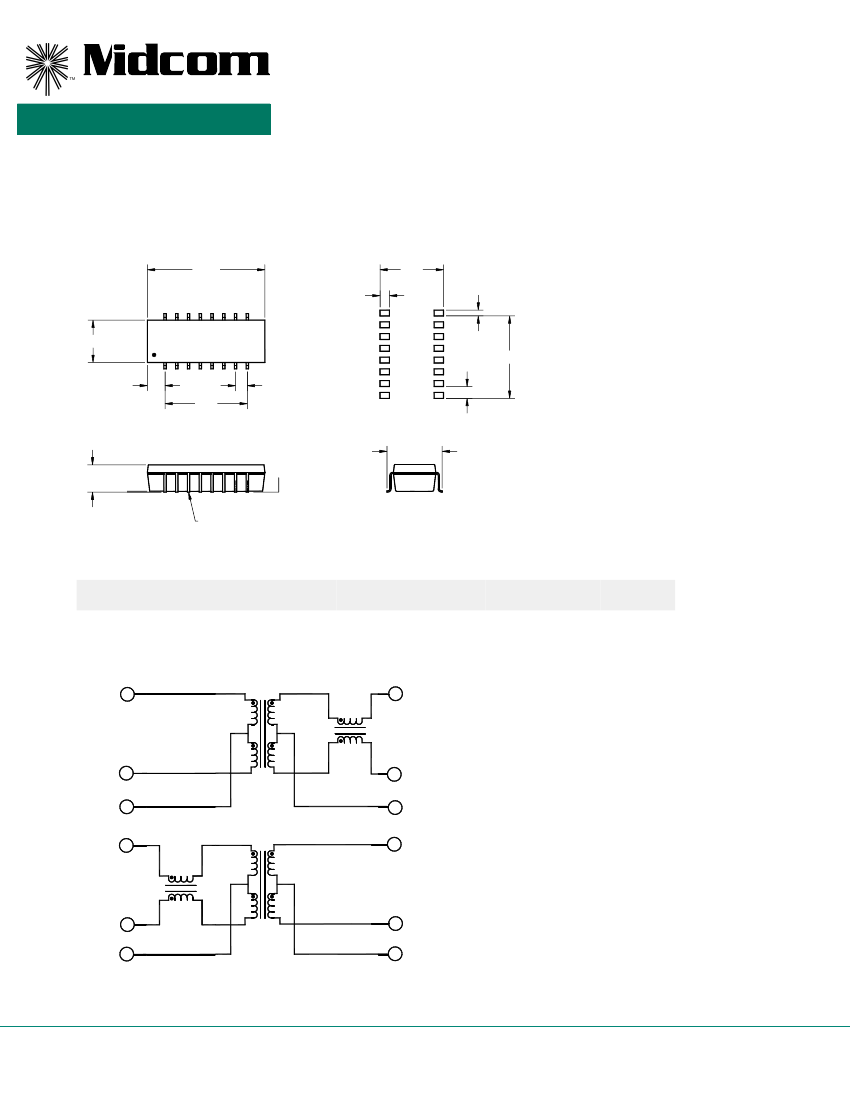

SUGGESTED PCB LAYOUT
0.500 MAX
.235 MAX
.020x.010(16)
CO-PLANARITY
±.002
.540
REF
.050 TYP
Features
• Meets IEEE 802.3 standard
• Transfer-molded package withstands
aggressive reflow soldering process
• Supports UTP-5 cable
• Low-profile package and low unit weight
improves efficiency of pick and place
operation
• Low-profile packageDesigned for
155Mbps ATM, 100Base-TX and TP-PMD
networks
• ISO 9002 Certified manufacturing
facilities
.370 REF
.100
.700
Unit Weight
• Weightt .......................... 2.6 grams
.153
Standard Packaging
• Tape & Ree ...................... 375/reel
Insertion Loss
dB max
100KHz
100MHz
TX/RX
-1.1
Return Loss dB min
500KHz 30MHz 45MHz 60MHz
29MHz 44MHz 59MHz 79MHz
-16
-14
-12
-10
CMDR
100KHz 50MHz
49MHz 100MHz
-40
-30
CMRR
100KHz 60MHz
60MHz 100MHz
-40
-35
Crosstalk
dB min
1MHz
100MHz
-30
OCL mH min
8mA DC
0°-70°C
350
Isolation Vrms
1 minute
@60Hz
1500
1CT:1.4CT
16
10
15
14
11
12
7
1
2
6
1CT:1CT
3
5
01/12/04
