8575: DescriptionRF connectors / coaxial connectors R/A plug; CategoryThe connector; File Size61KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

8575 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8575	-	-	View	Buy Now

8575 Overview

RF connectors / coaxial connectors R/A plug

8575 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	Connectors
RF Series	BNC
Gende	Plug
Polarity	Standard
Impedance	50 Ohms
Maximum Frequency	4 GHz
Body Material	Brass
Body Style	Right Angle
Body Finish	Nickel
Contact Material	Brass
Contact Plating	Silve
Contact Terminati	Solde
Mounting Type	-
Termination Style	Cable - Clam
Coupling Mechanism	Bayone
Orientati	Right Angle
Cable Type	RG-59, RG-62, RG-140, RG-210, Belden 8241, Belden 8263, Belden 8279, Belden 9209
Mating Cycles	500
Operating Temperature Range	- 55 C to + 85 C

Preview

Download Datasheet

View All

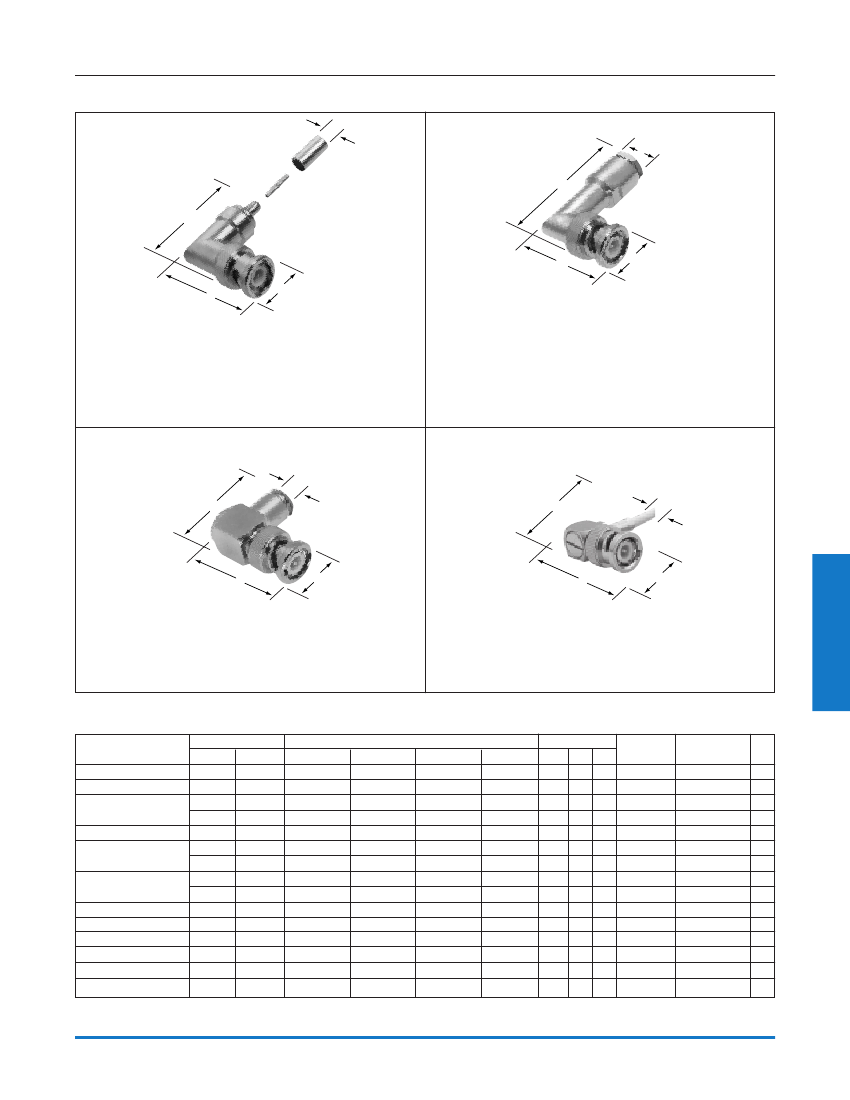

BNC 50 ohm

Angle Cable Plugs

Fig. 1

c•

Amphenol

®

Fig. 2

c•

BNC

a

miter body

a

I

d

b

BNC Crimp Angle Plugs

31-316, 31-316-RFX

31-335, 31-335-RFX

31-336, 31-336-RFX

31-334

Fig. 3

Fig. 4

BNC Clamp Angle Plug

31-204

c•

a

cubic body

a

c•

BNC

d

b

d

b

BNC Clamp Angle Plugs

8525

8575

33275

31-850

BNC Crimp-Crimp Cube

31-5911-RFX

31-5914-RFX

31-5991-RFX

BNC ANGLE CABLE PLUGS

Cable

RG-/U

55, 58, 141, 142, 223, 400

55, 142, 223, 400

58, 141

58, 141, 142, 400

59, 62, 71, 140, 210

59, 62, 140, 210

174, 179, 187, 188

174, 188, 316

58, 141

59

316

316 Die Cast

I

includes outer ferrule

Cable Attachment

Outer

Inner

Clamp

Crimp

Clamp

Crimp

Clamp

Crimp

Solder

Crimp

Solder

Crimp

Solder

Crimp

Solder

a

1.68(42.7)I

1.59(30.2)

I

1.59(40.5)I

1.66(42.2)I

1.00(25.4)I

1.00(25.4)

1.25(31.6)

1.59(40.5)I

1.66(42.2)I

1.25(31.6)

1.19(30.2)I

.862(21.9)

Dimensions, inches (millimeters)

b

c•

.562(14.3)

.571(14.5)

.562(14.3)

.571(14.5)

.562(14.3)

.571(14.5)

.214(5.5)

.220(5.6)

.206(5.2)

.210(5.3)

.212(5.4)

.259(6.6)

.260(6.6)

.115(2.9)

.214(5.5)

.259(6.6)

.115(2.9)

d

Notes

CAI Plt. Ins.

C25

P1

D1

C26a P15 D1

C26a P7

C25

P1

D23

D1

D6

D23

D1

Military

Number

UG-913/U

—

(Cubic Body)

—

(Cubic Body)

—

Amphenol

Number

31-204*

31-334*

31-335*

31-335-RFX

8525*

8575*

31-850*

31-336

31-336-RFX

33275*

31-316*

31-5911-RFX

31-5914-RFX

31-5991-RFX

31-316-RFX

Fig.

2

1

3

1

3

1

4

1

L

1.09(27.8)

1.19(40.5)

1.19(30.2)

1.07(27.2)

1.25(31.8)

1.03(26.2)

1.19(30.2)

1.07(27.2)

1.00(25.4)

1.59(40.5)

1.07(27.2)

1.09(27.8)

1.07(27.2)

C26a P15 D1

C26a P7

C25

P1

C26a P15 D1

C26a P7

D23 (Cubic Body)

L

distributor stocked

• accommodates cable diameter * recognized under the component program of U.L., Inc.

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

111

8575 Related Products

	8575	31-5911-RFX	8525	31-5991-RFX	31-5914-RFX
Description	RF connectors / coaxial connectors R/A plug	RF connectors / coaxial connectors R/A plug for RG 58	RF connectors / coaxial connectors bnc angle plug	RF connectors / coaxial connectors right angle crimp plug RG 316	RF connectors / coaxial connectors right angle plug RG-59
Manufacture	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors
RoHS	Yes	Yes	Yes	Yes	Yes
Produc	Connectors	Connectors	Connectors	Connectors	Connectors
RF Series	BNC	BNC	BNC	BNC	BNC
Gende	Plug	Plug	Plug	Plug	Plug
Polarity	Standard	Standard	Standard	Standard	Standard
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Maximum Frequency	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz
Body Material	Brass	Brass	Brass	Brass	Brass
Body Finish	Nickel	Nickel	Nickel	Nickel	Nickel
Contact Material	Brass	Brass	Brass	Phosphor Bronze	Brass
Contact Plating	Silve	Gold	Silve	Gold	Gold
Contact Terminati	Solde	Crim	Solde	Crim	Solde
Termination Style	Cable - Clam	Cable - Crim	Cable - Clam	Cable - Crim	Cable - Crim
Coupling Mechanism	Bayone	Bayone	Bayone	Bayone	Bayone
Orientati	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Mating Cycles	500	500	500	500	500
Operating Temperature Range	- 55 C to + 85 C	- 65 C to + 165 C	- 65 C to + 165 C	- 65 C to + 165 C	- 65 C to + 165 C
Cable Type	RG-59, RG-62, RG-140, RG-210, Belden 8241, Belden 8263, Belden 8279, Belden 9209	RG-58, RG-141	RG-58, RG-58A, RG-58C, RG-141, RG-303, Belden 7806A, LMR195	-	-
