31-4758 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 31-4758

31-4758: DescriptionRF connectors / coaxial connectors 50 ohm vertICAL vert pcb jack; CategoryThe connector; File Size68KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

31-4758 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-4758	-	-	View	Buy Now

31-4758 Overview

RF connectors / coaxial connectors 50 ohm vertICAL vert pcb jack

31-4758 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	PCB Connectors
RF Series	BNC
Gende	Jack
Polarity	Standard
Impedance	50 Ohms
Maximum Frequency	4 GHz
Body Material	Brass
Body Finish	Nickel
Contact Material	Brass
Contact Plating	Silve
Contact Terminati	Solde
Mounting Type	-
Termination Style	PCB - Through Hole
Coupling Mechanism	Bayone
Orientati	Straigh
Mating Cycles	500
Operating Temperature Range	- 65 C to + 165 C

Preview

Download Datasheet

View All

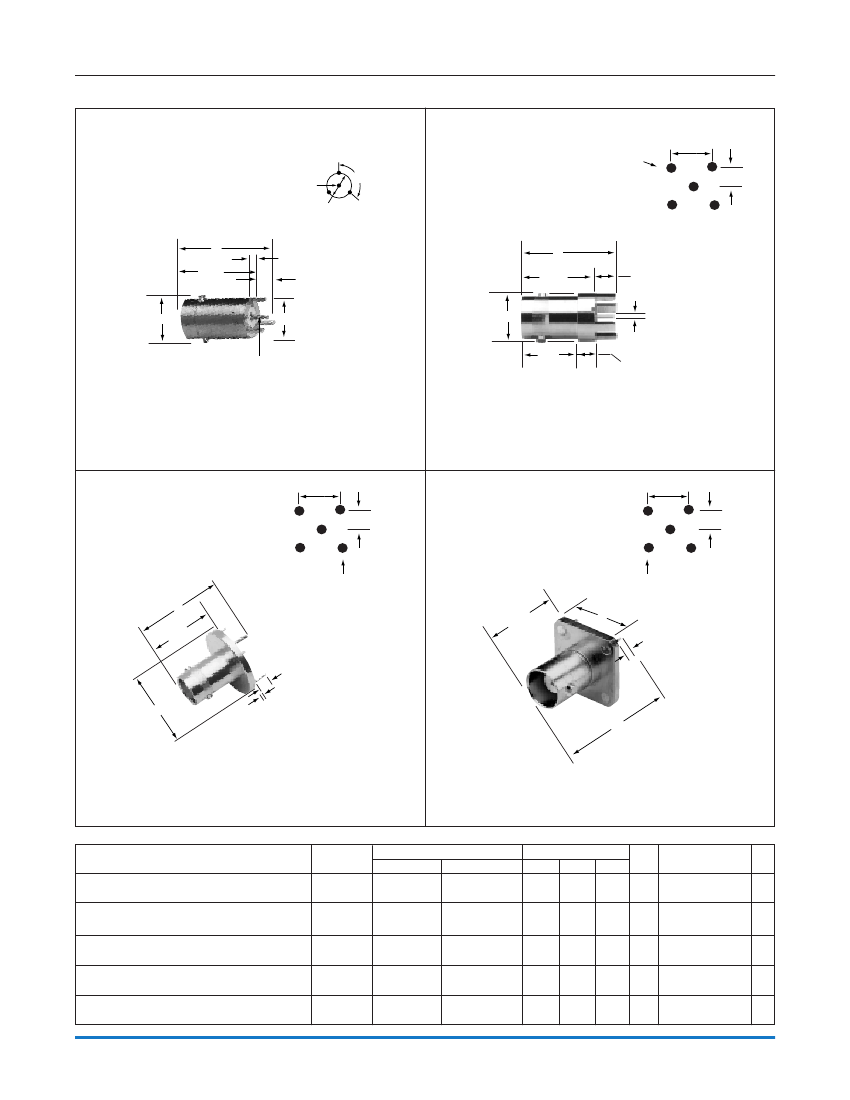

BNC 50 ohm

PCB Receptacles

Fig. 1

.062(1.6) dia.

3 holes

120°

.047(1.2)

dia.

.340(8.6)

dia.

.669

(17.0)

.025(0.6)

stand-off pads

.125

(3.2)

.380(9.6) dia.

.655

(16.6)

Amphenol

Fig. 2

.094(2.4)dia.

(4 places)

.272(6.9)

.050 (1.3) dia.

.135(3.4)

.176

(4.5)

.037(0.9) dia.

.040 dia.

(1.01)

.500

(12.7)

.155(3.9)

BNC PCB Receptacle (Jack)

Post Terminal, 3 Legs

.380" (9.6mm) Dia. Base

31-5329

Fig. 3

.500(12.7)

BNC PCB Receptacle (Jack)

Post Terminal, 4 Legs

.433" (11.0mm) Dia. Base

31-5329-51RFX

31-5329-52RFX

Fig. 4

.250(6.4)

.500(12.7)

.250(6.4)

.067(1.7) dia.

(5 places)

.047(1.2) dia.

(5 places)

.664

(16.9)

.641

(16.3)

.125(3.2)

.155(3.9)

.020(0.5)

Stand-Off Pads

BNC PCB Receptacle (Jack)

Post Terminal, 4 Legs

31-4758

BNC PCB Receptacle (Jack)

Post Terminal, 4 Legs

18225

Dimensions, inches (mm)

.794(20.2)

.831(21.1)

.819(20.8)

.766(19.4)

.434(11.0)

.433(11.0) dia

.812(20.6) dia

.688(17.5) dia

Notes

Ins.

D25

Mtg.

Hole

Amphenol

Number

31-5329

31-5329-51RFX

31-5329-52RFX

31-4758

18225

PRINTED CIRCUIT BOARD RECEPTACLES

Description

PCB Receptacle, 3 Legs .125(3.2) Long/Post Terminal

.040(1.0) Dia. x .125(3.2) Long/.025(0.6) Stand-off Pads

PCB Receptacle, 4 Legs .176(4.5)

Long/Post terminal .037(0.9) Dia.

Silver Contact

PCB Receptacle, 4 Legs .176(4.5)

Long/Post terminal .037(0.9) Dia.

Gold Contact

PCB Receptacle, 4 Legs .155(3.9) Long/ .020(0.5)

Stand-off Pads/Post terminal .040(1.0) Dia.

PCB Receptacle, 4 Legs and Post Terminal

.040(1.0) Dia. x .125(3.2) Long

distributor stocked

Terminal

Type

Blunt Post

Plt.

P17

Imp.

50Ω

Fig.

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

118
