SP7800AKP datasheet, PDF - EEWORLD Datasheet

SP7800AKP: DescriptionADC, Successive Approximation, 12-Bit, 1 Func, Parallel, 4 Bits Access, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24; CategoryAnalog mixed-signal IC converter; File Size459KB，10 Pages; ManufacturerSpectrum Microwave; Related ProductsFound11parts with similar functions to SP7800AKP

Download Datasheet Parametric View All

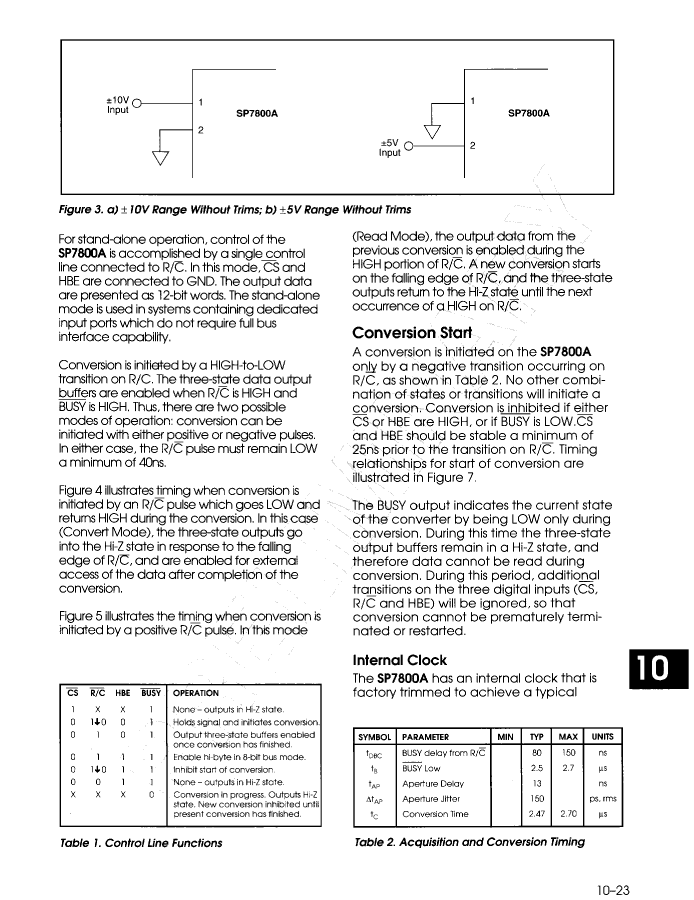

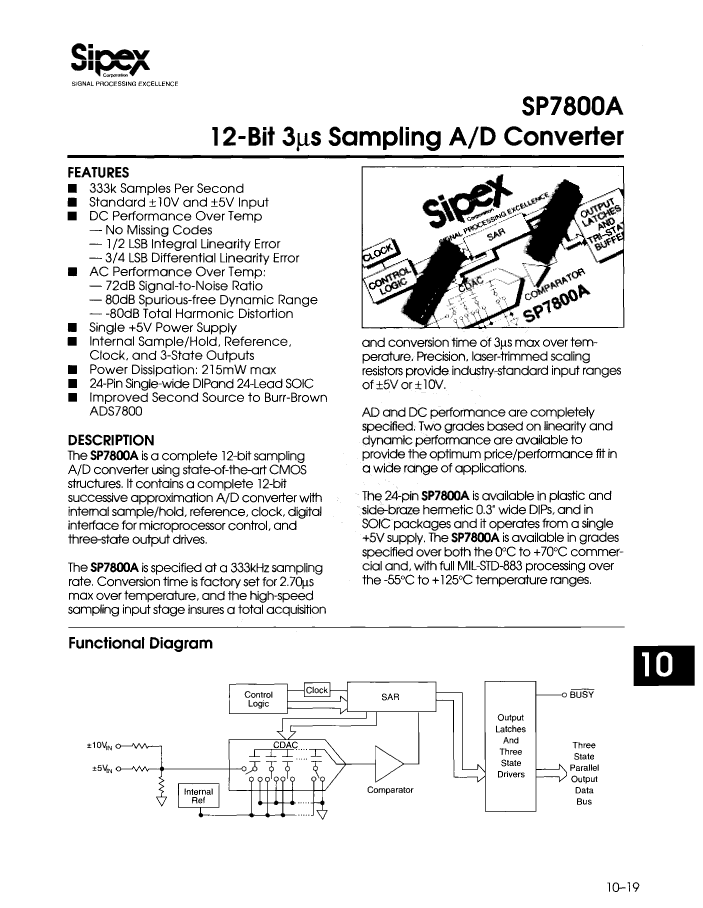

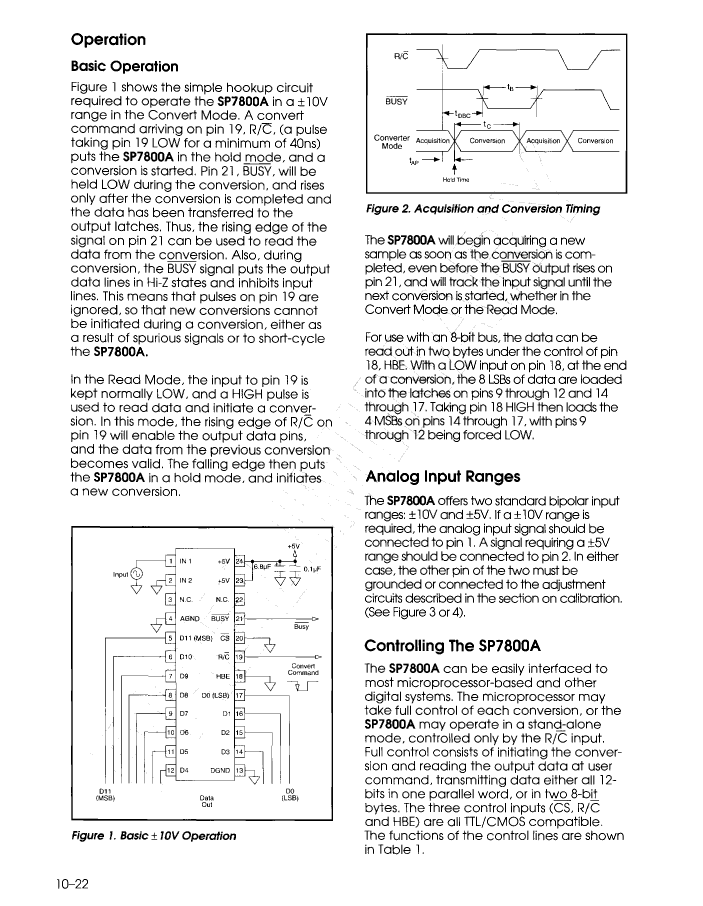

SP7800AKP Overview

ADC, Successive Approximation, 12-Bit, 1 Func, Parallel, 4 Bits Access, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24

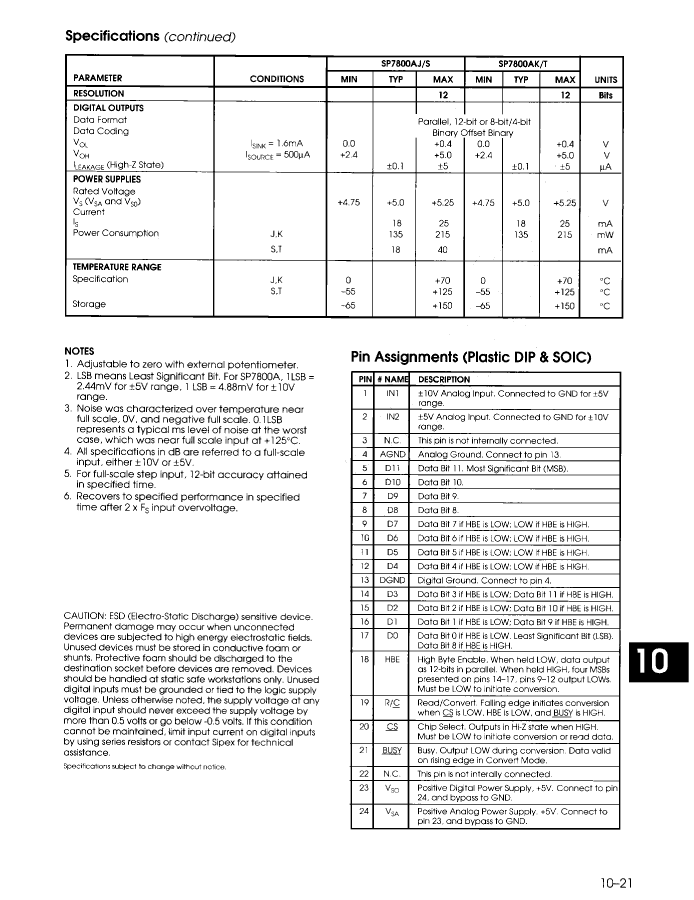

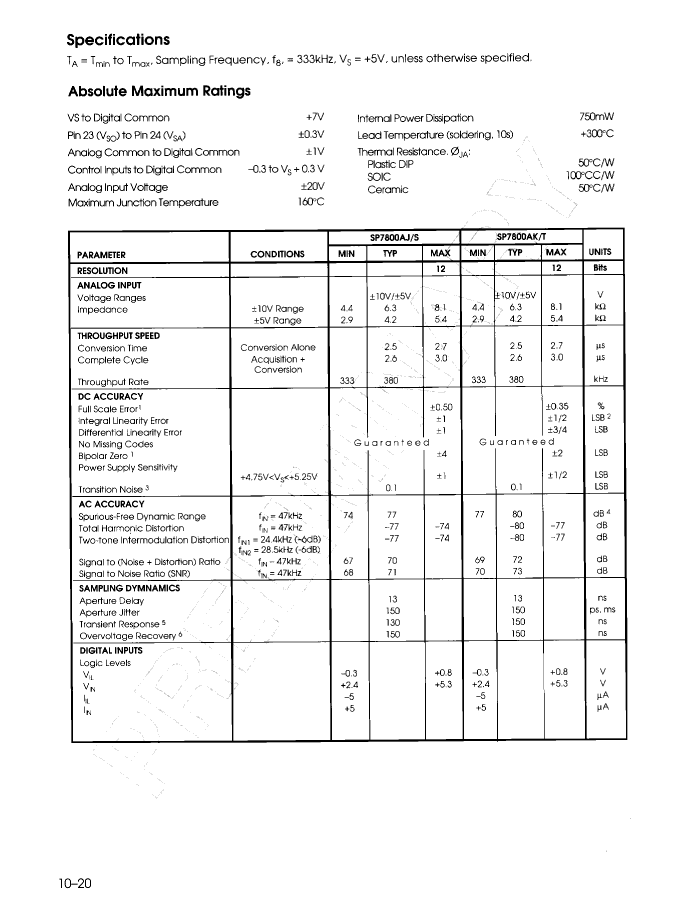

Parameter Name	Attribute value
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Maximum analog input voltage	20 V
Minimum analog input voltage	-20 V
Maximum conversion time	2.7 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T24
length	30.92 mm
Maximum linear error (EL)	0.012%
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	OFFSET BINARY
Output format	PARALLEL, 4 BITS
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Sampling rate	0.333 MHz
Sample and hold/Track and hold	SAMPLE
Maximum seat height	5.334 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1
