ZMY20M
MAGNETIC FIELD SENSOR WITH INTERNAL MAGNET
DESCRIPTION
The ZMY20M is an extremely sensitive magnetic sensor
employing the magneto-resistive effect of thin film permalloy.
It allows the measurement of magnetic fields or the detection
of magnetic parts. The highly sensitive and small size
magnetoresistive sensors consist of chip covered with thin film
permalloy stripes. These stripes form a Wheatstone bridge,
whose output voltage is proportional to the magnetic field
component Hy. The required perpendicular field Hx which is
necessary to stabilize sensor operation, is created by an
internal permanent magnet.
FEATURES
•
Package: SOT223
•
Supply voltage 12V
•
Internal magnet for creation of auxiliary field Hx
•
Available on 12mm tape
APPLICATIONS
•
Linear position measurement
•
Angular position measurement
•
Navigation (electronic compass)
•
Revolution measurement
ORDERING INFORMATION
DEVICE
REEL
SIZE
7”
13”
TAPE WIDTH
12mm
12mm
QUANTITY PER
REEL
1,000
4,000
ZMY20MTA
ZMY20MTC
DEVICE MARKING
•
ZMY20M
ISSUE 2 - JANUARY 2004
1
SEMICONDUCTORS
ZMY20M
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Supply voltage
Total power dissipation
Operating temperature range
Storage temperature range
SYMBOL
V
B
P
TOT
T
amb
T
stg
LIMIT
12
120
-25 to +125
-25 to +125
UNIT
V
mW
°C
°C
ELECTRICAL CHARACTERISTICS
(at T
amb
= 25°C unless otherwise stated)
PARAMETER
Bridge resistance
Output voltage range
Auxiliary field
Disturbing field
Open circuit sensitivity
SYMBOL
R
br
V
O
/V
B
Hx
Hd
S
MIN.
1.2
12
-
-
3.0
TYP.
1.7
18
2
-
5.5
MAX.
2.2
24
-
30
7.0
UNIT
k
mV/V
kA/m
kA/m
(mV/V)/ No disturbing field
(kA/m) H
d
allowed
V
B
= const.
V/V
mV/V
MHz
( V/V)/K T amb = -25 to +125°C
%/K
%/K
T amb = -25 to +125°C
T amb = -25 to +125°C
Hy
2kA/m
CONDITIONS
Hysteresis of output voltage
Offset voltage
Operating frequency
Temperature coefficient of
offset voltages
Temperature coefficient of
bridge resistance
Temperature coefficient of
open circuit sensitivity
V
B
= 5V
Temperature coefficient of
open circuit sensitivity
I
B
= 3mA
V
OH
/V
B
V
off
/V
B
f
max
TCV
off
TCR
br
TCS
V
-
-1.5
0
-3
0.25
-0.25
-
-
-
-
0.3
-0.3
50
+1.5
1
+3
0.35
-0.35
TCS
I
-
0.05
-
%/K
T amb = -25 to +125°C
ISSUE 2 - JANUARY 2004
SEMICONDUCTORS
2

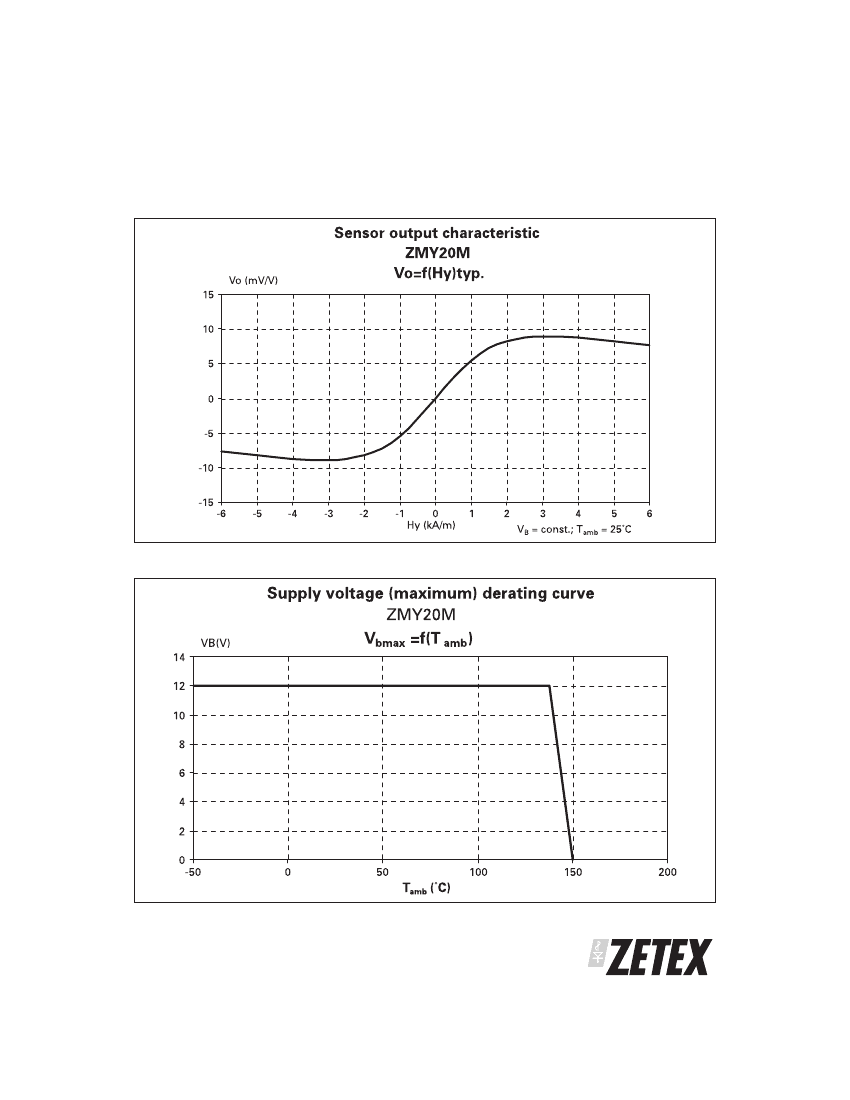

ZMY20M
ISSUE 2 - JANUARY 2004
3
SEMICONDUCTORS
ZMY20M
PACKAGE OUTLINE
Controlling dimensions are in millimeters. Approximate conversions are given in inches
PACKAGE DIMENSIONS
Millimeters
DIM
Min
A
A1
b
b2
C
D
-
0.02
0.66
2.90
0.23
6.30
Max
1.80
0.10
0.84
3.10
0.33
6.70
Min
-
0.0008
0.026
0.114
0.009
0.248
Max
0.071
0.004
0.033
0.122
0.013
0.264
e
e1
E
E1
L
-
Inches
DIM
Min
Max
Min
Max
2.30 BSC
4.60 BSC
6.70
3.30
0.90
-
7.30
3.70
-
-
0.0905 BSC
0.181 BSC
0.264
0.130
0.355
-
0.287
0.146
-
-
Millimeters
Inches
