8-166084-5 datasheet, PDF - EEWORLD Datasheet

8-166084-5: DescriptionEDGE CONNECTOR,PCB MNT,RECEPT,85 CONTACTS,0.1 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size135KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

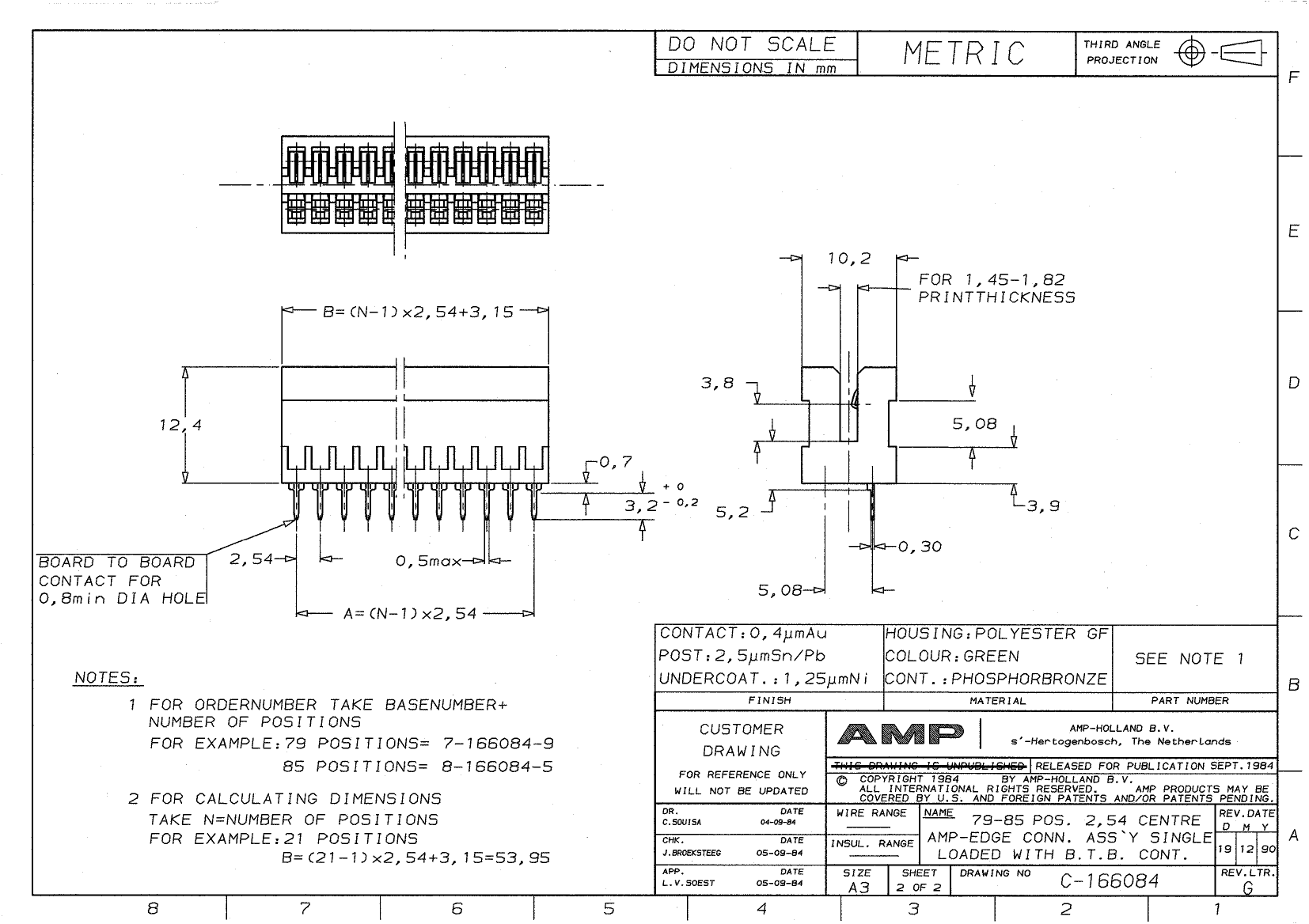

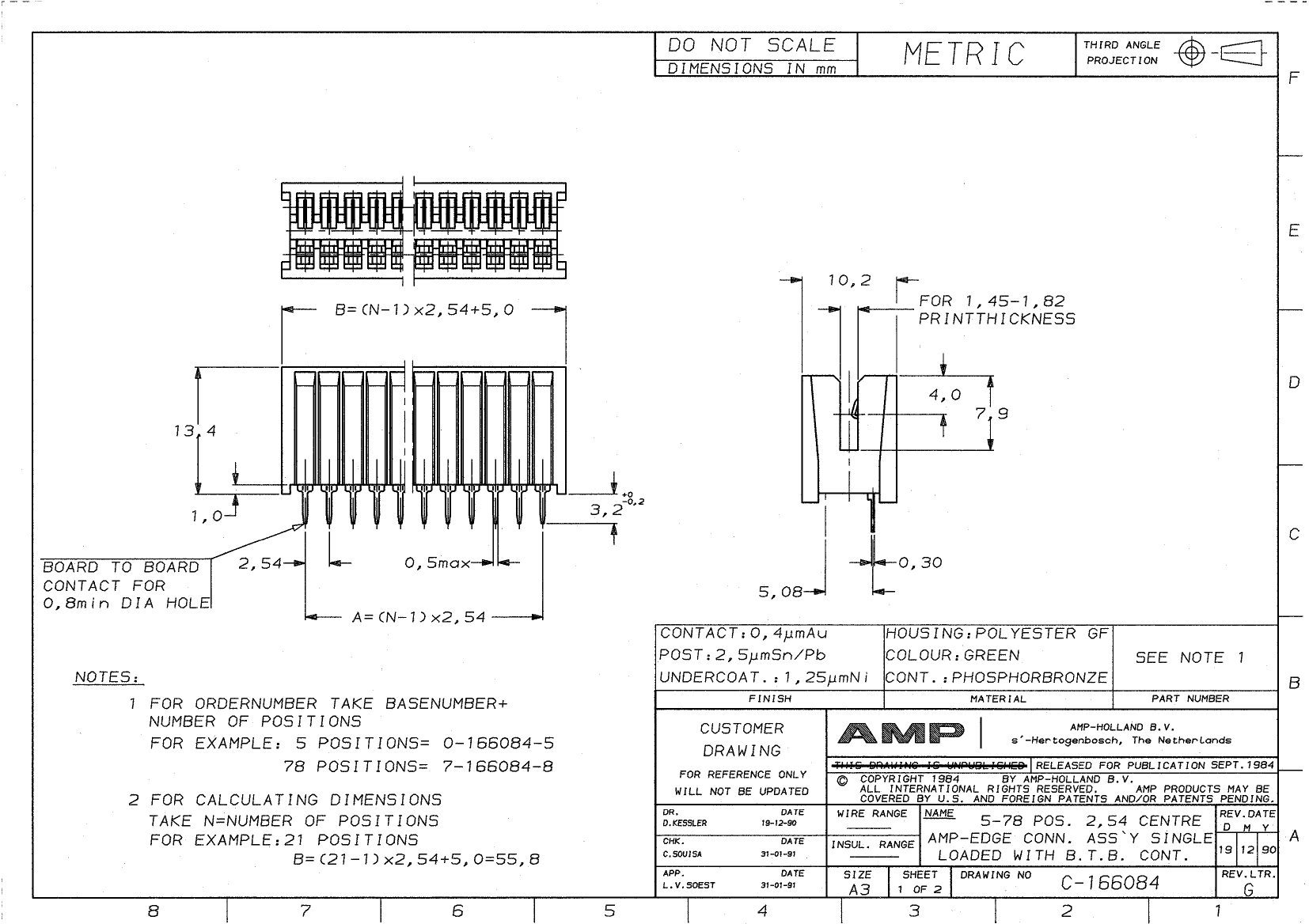

8-166084-5 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,85 CONTACTS,0.1 PITCH,PC TAIL TERMINAL

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Is Samacsys	N
Other features	BOARD TO BOARD CONTACT
body width	0.402 inch
subject depth	0.516 inch
body length	8.524 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Insulator color	GREEN
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	166084
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Plating thickness	16u inch
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	85
Base Number Matches	1
