This document was generated on 09/02/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
39510-0705
Active
3.81mm Pitch Eurostyle™ Horizontal Plug, with Reverse Imprinting, Gold (Au) Plated, 5
Circuits
Documents:
Drawing (PDF)
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Component Type
Product Name
Type
UPC
Terminal Blocks
39510
N/A
with Reverse Imprinting
Plug
ESE, Eurostyle™Pluggable
Euro Block
822350687591
Series

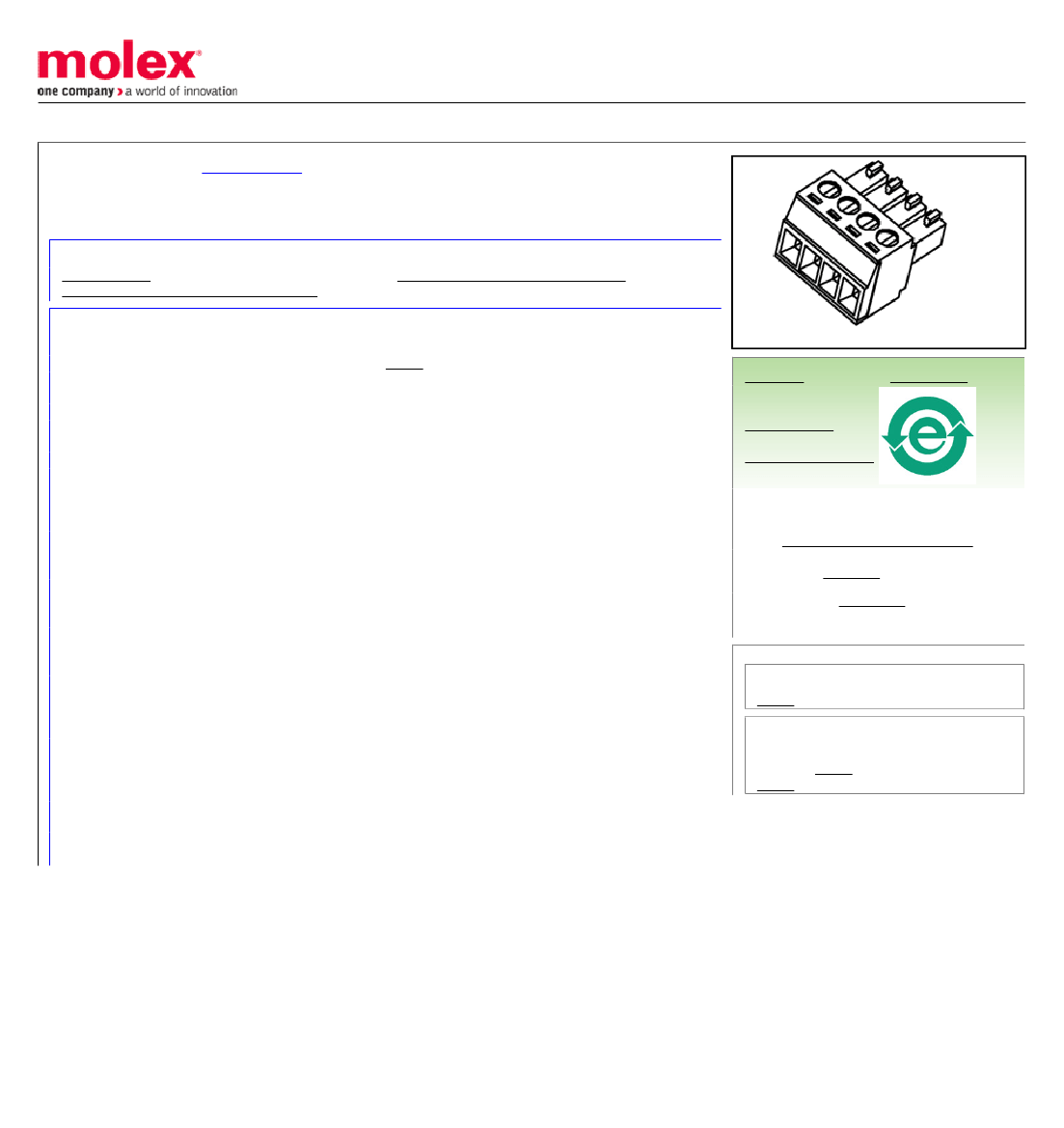

image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
5
Vertical
None
1
Horizontal
No
3.81mm
3.81mm
Yes
No
-40°C to +105°C
16, 18, 20, 22, 24
0.20 - 1.31
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39510Series
Mates With
Most 3.81mm Pitch Industry Standard PCB
Headers, 39511 Vertical PCB Header,
39512 Horizontal PCB Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
8A
300V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-39500-001
SD-39510-001
This document was generated on 09/02/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
