General Purpose Terminal Boards
DIN Rail Screw Terminal Boards

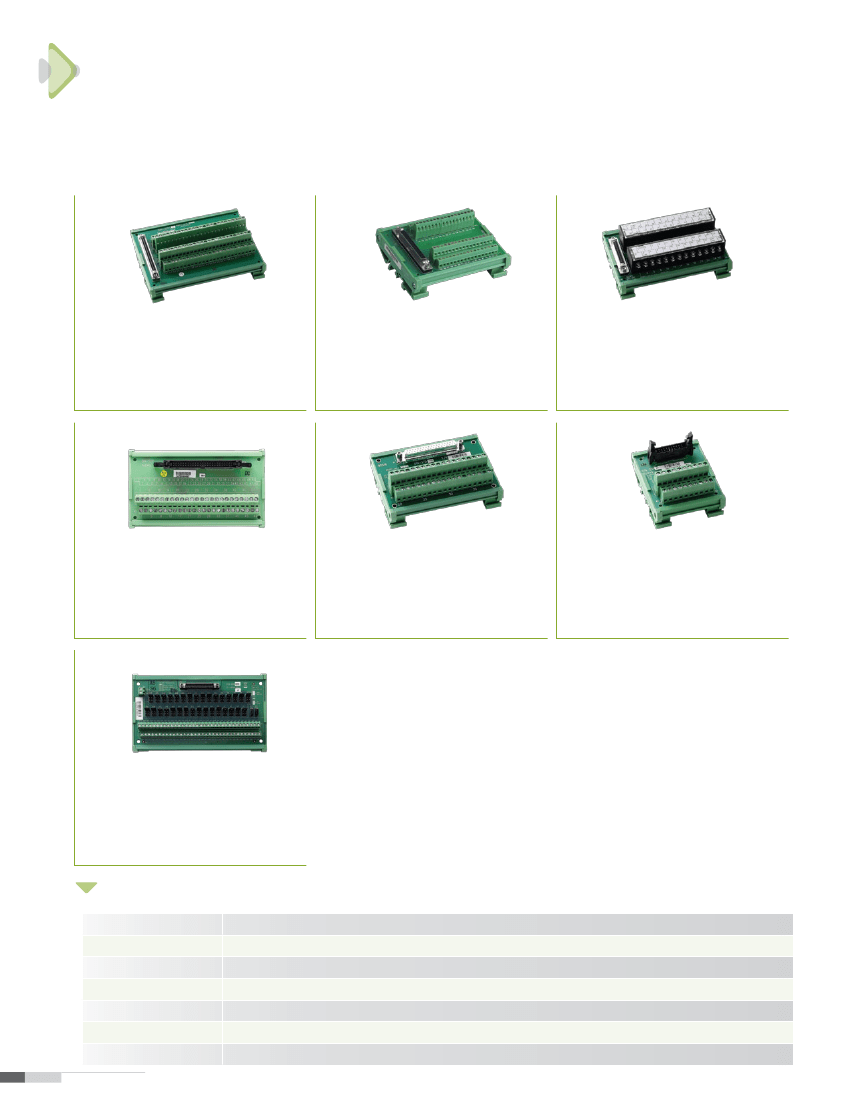

• Universal screw terminal boards for easy wiring
• DIN socket for easy mounting in DIN-rail
DIN-100S-01
DIN-68S-01
DIN-50S-01
Terminal Board with One 100-pin SCSI-II
Connector and DIN-rail Mounting
• On-board Connector Type: 100-pin SCSI-II female
• Dimensions: 158 mm x 120 mm x 52 mm (W x L x H)
• Mating Cable:
♦
ACL-102100-1: 100-pin SCSI-II cable, 1 M
Terminal Board with One 68-pin SCSI-II
Connector and DIN-rail Mounting
• On-board Connector Type: 68-pin SCSI-II female
• Dimensions: 103 mm x 85 mm x 46.2 mm (W x L x H)
• Mating Cables:
♦
ACL-10568-1: 68-pin SCSI-VHDCI cable, 1 M
♦
ACL-10569-1:
Terminal Board with One 50-pin SCSI-II
Connector and DIN-rail Mounting
• On-board Connector Type: 50-pin SCSI-II female
• Plastic cover for protection of wiring
• Dimensions: 125 mm x 85 mm x 50 mm (W x L x H)
• Mating Cable:
♦
ACL-10250-1: 50-pin SCSI-II cable, 1 M
68-pin SCSI-II cable, 1 M
DIN-50P-01
DIN-37D-01
DIN-20P-01
Terminal Board with One 50-pin Header and
DIN-rail mounting
• On-board Connector Type: 50-pin header
• Dimensions: 103 mm x 85 mm x 43 mm (W x L x H)
• Mating Cable:
♦
ACL-10150: 50-pin flat cable
Terminal Board with One 37-pin D-sub
Connector and DIN-rail Mounting
• On-board Connector Type: 37-pin D-sub female
• Dimensions: 113 mm x 85 mm x 52 mm (W x L x H)
• Mating Cable:
♦
ACL-10137-1MM: 37-pin D-sub male/male cable, 1 M
Terminal Board with One 20-pin Header and
DIN-rail Mounting
• On-board Connector Type: 20-pin header
• Dimensions: 68 mm x 85 mm x 55 mm (W x L x H)
• Mating Cable:
♦
ACL-10120-1: 20-pin flat cable, 1 M
DIN-68H-01
Terminal Board with One 68-pin SCSI-VHDCI
Connector and 0 or 50 Ω Jumper Selectable
Impedance
• On-board Connector Type: 68-pin SCSI-VHDCI
• Dimensions: 103 mm x 85 mm x 43 mm (W x L x H)
• Mating Cable:
♦
ACL-10279: 68-pin SCSI-VHDCI cable with 50 Ω
impedance
Ordering Information
■
DIN-100S-01
■
DIN-68S-01
■
DIN-50S-01
■
DIN-50P-01
■
DIN-37D-01
■
DIN-20P-01
■
DIN-68H-01
2-63 www.adlinktech.com
Terminal board with one 100-pin SCSI-II connector and DIN-rail mounting
Terminal board with one 68-pin SCSI-II connector and DIN-rail mounting
Terminal board with one 50-pin SCSI-II connector and DIN-rail mounting
Terminal board with one 50-pin header and DIN-rail mounting
Terminal board with one 37-pin D-sub connector and DIN-rail mounting
Terminal board with one 20-pin header and DIN-rail mounting
Terminal board with one 68-pin SCSI-VHDCI connector and 0 or 50 Ω jumper selectable impedance
Terminal Boards
ACLD Screw Terminal Boards
• Low-cost universal screw terminal boards
• Blank pads accommodate applications such as break detection, low-pass filter, current shunt and voltage attenuator on ACLD-9881-01,
ACLD-9188-01, and ACLD-9138-01
• Table-top mounting using nylon standoffs
ACLD-9881-01
ACLD-9188-01
ACLD-9138-01

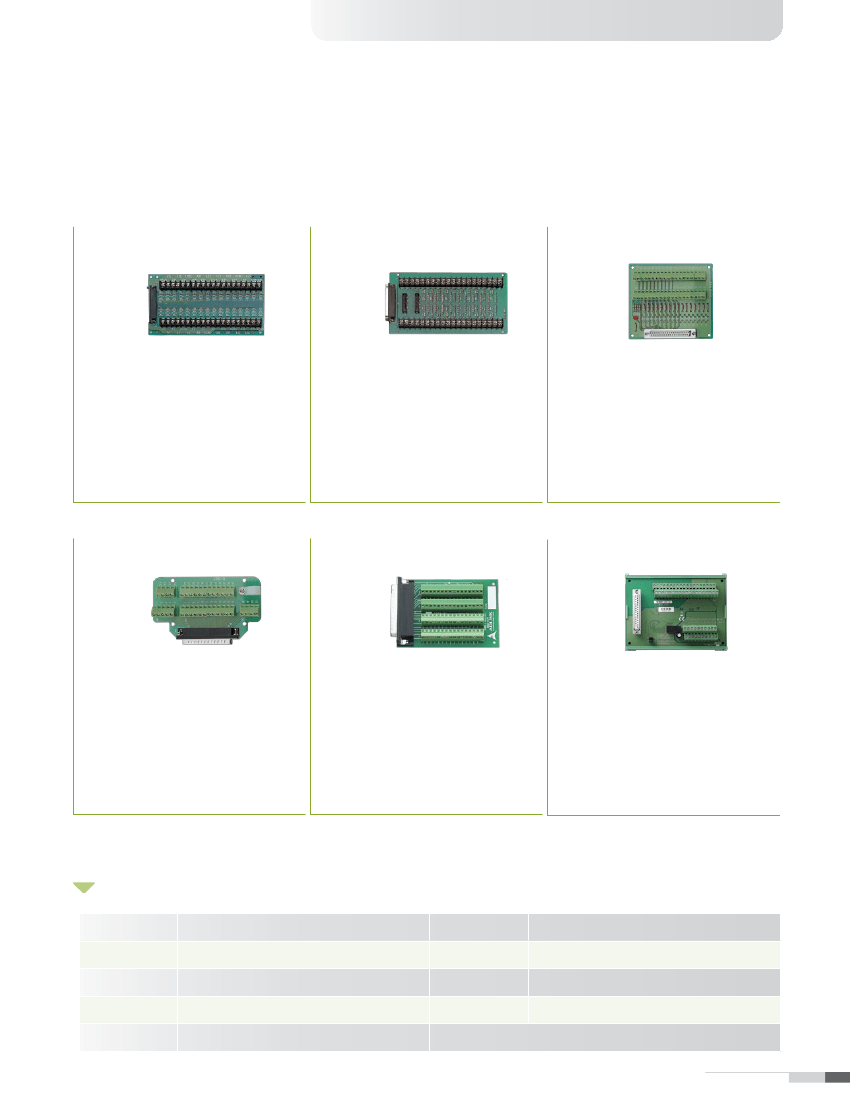

General Purpose Terminal Board with One 37-
pin D-sub Connector for PCI-9113A and ACL-
8113A
• For use with PCI-9113A and ACL-8113
• On-board Connector Type: 37-pin D-sub female
• Reliable screw clamp termination blocks
• Dimensions: 222 mm x 105 mm
• Mating Cable:
♦
ACL-10137-1MM: 37-pin D-sub male/male cable, 1 M
General Purpose Terminal Board with Two
Connector Options: Two 20-pin Headers or One
37-pin D-sub Connector
• On-board Connector Options: Two 20-pin male
headers or one
37-pin D-sub female
• Reliable screw clamp terminal blocks
• Dimensions: 222 mm x 114 mm
• Mating Cables:
♦
ACL-10120-1: 20-pin flat cable, 1 M
♦
ACL-10220-1:
General Purpose Terminal Board with One 37-pin
D-sub Connector
• On-board Connector Type: 37-pin D-sub female
• Blank RC circuits for analog input boards
• Reliable screw clamp terminal blocks
• Dimensions: 103 mm x 114 mm
• Mating Cables:
♦
ACL-10237-1: 37-pin D-sub male/male flat cable, 1 M
♦
ACL-10137-1MM:
20-pin shielded & grounded cable, 1 M
37-pin D-sub male/male cable, 1 M
ACLD-9137-01 / ACLD-9137F-01
TB-6201-01 / TB-6221-01 /
TB-6231-01
TB-9221
General Purpose Terminal Board with One 37-pin
D-sub Connector
• ACLD-9137F-01: on-board 37-pin D-sub female
connector
• Dimensions: 124 mm x 72 mm
• Mating Cables:
♦
ACL-10137-1MM: 37-pin D-sub male/male cable,
1 M (for ACLD-9137F-01)
♦
General Purpose/Multiplexer/Matrix Switch
Terminal Board with One 62-pin D-sub
• ACLD-9137-01: on-board 37-pin D-sub male connector
Connector
• For use with PXI-7901, PXI-7921, and PXI-7931
• On-board Connector Type: 62-pin D-sub female
• Dimensions: 105.81 mm x 230 mm
• Mating Cable:
♦
ACL-10262: 62-pin D-sub male/male cable, 1 M
General Purpose Terminal Board with One 37-
pin D-sub Connector. Support Differential to
Singleended Encoder Signal Conversion for
PCI-9221
• For use with PCI-9221
• On-board Connector Type: 37-pin D-sub female
• Dimensions: 155 mm x 106 mm
• Mating Cable:
♦
ACL-10137-1MM: 37-pin D-sub male/male cable, 1 M
ACL-10137-1MF: 37-pin D-sub male/female cable,
1 M (for ACLD-9137-01)
Ordering Information
■
ACLD-9881-01
■
ACLD-9188-01
■
ACLD-9138-01
■
ACLD-9137-01
■
ACLD-9137F-01
General purpose terminal board with one 37-pin D-sub connector
for PCI-9113A and ACL-8113A
■
TB-6201-01
General purpose switch terminal board with one 62-pin D-sub female
connector for PXI-7901, PXI-7921, and PXI-7931
Multiplexer switch terminal board with one 62-pin D-sub female
connector for PXI-7901, PXI-7921, and PXI-7931
Matrix switch terminal board with one 62-pin D-Sub female connector
for PXI-7901, PXI-7921, and PXI-7931
General purpose terminal board with one 37-pin D-sub connector supports
differential to single-ended encoder signal conversion for PCI-9221
General purpose terminal board with two 20-pin headers and
■
TB-6221-01
one 37-pin D-sub connector
General purpose termination board with one 37-pin D-sub
connector
General purpose terminal board with one 37-pin D-sub male
connector
General purpose terminal board with one 37-pin D-sub female
connector
■
TB-6231-01
■
TB-9221
