006007030450012

Description
Card Edge Connector, 30 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal, Hole .125-.137
CategoryThe connector    The connector
File Size132KB,1 Pages
ManufacturerKyocera

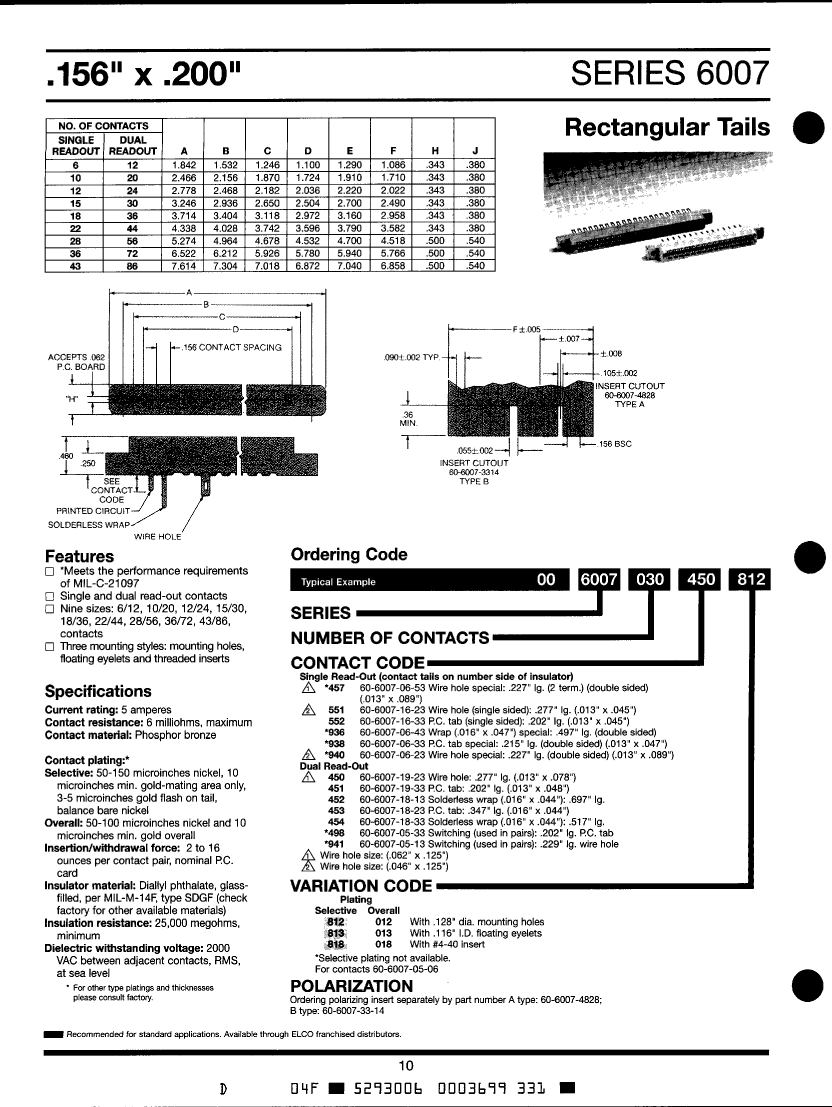

Download Datasheet Parametric View All

006007030450012 Overview

Card Edge Connector, 30 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal, Hole .125-.137

006007030450012 Parametric

Parameter NameAttribute value
MakerKyocera
Reach Compliance Codeunknown
Is SamacsysN
Other featuresNONE
body width0.343 inch
subject depth0.46 inch
body length3.246 inch
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU ON NI
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance6 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage2000VAC V
maximum insertion force4.448 N
Insulation resistance25000000000 Ω
insulator materialGLASS FILLED DIALLYL PHTHALATE
Manufacturer's serial number6007
Plug contact pitch0.156 inch
Match contact row spacing0.2 inch
Installation option 1HOLE .125-.137
Installation typePANEL
Number of rows loaded2
Plating thickness10u inch
Rated current (signal)5 A
reliabilityCOMMERCIAL
Terminal length0.277 inch
Termination typeSOLDER LUG
Total number of contacts30
Evacuation force-minimum value.556 N
Base Number Matches1
