006338040000042: DescriptionCard Edge Connector, 40 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Locking Mech, Gray Insulator; CategoryThe connector The connector; File Size109KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

006338040000042 Overview

Card Edge Connector, 40 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Locking Mech, Gray Insulator

006338040000042 Parametric

Parameter Name	Attribute value
Objectid	1884194676
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	0.394 inch
subject depth	0.85 inch
body length	3.22 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	350VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	6338
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	40
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

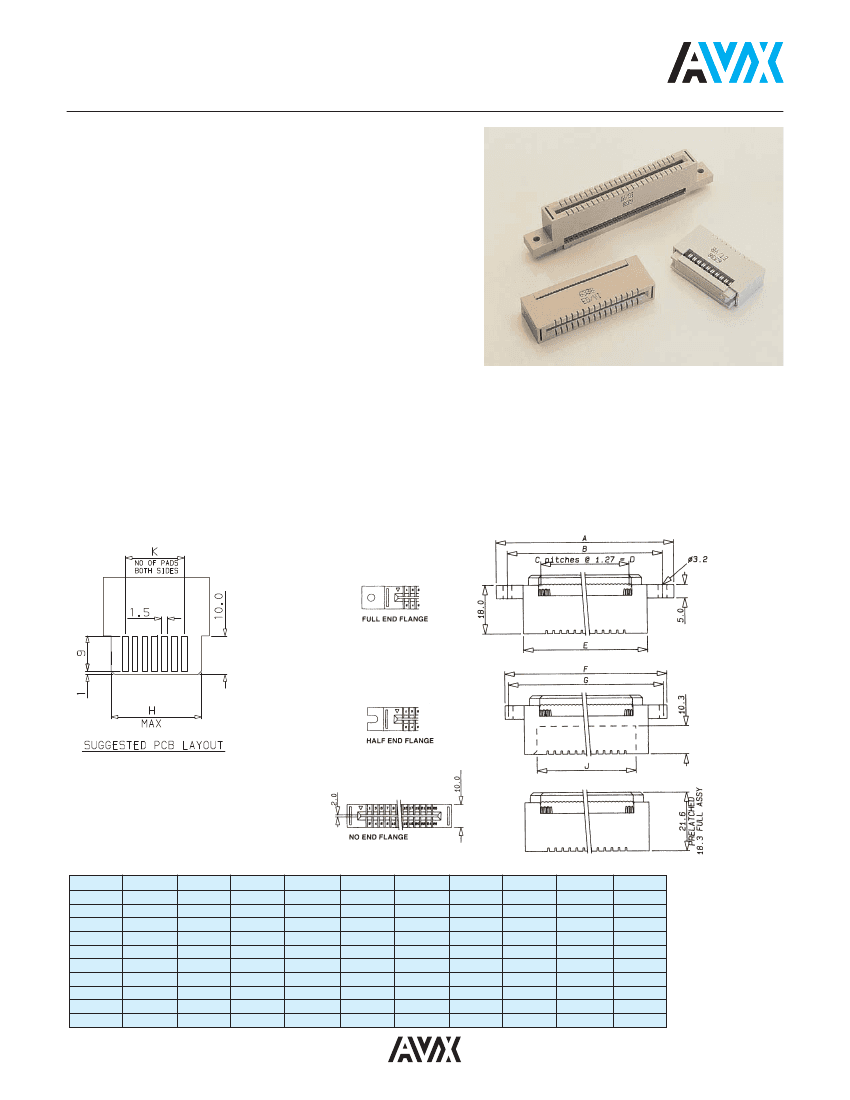

Card Edge Connector

Series 6338

UL Approved File No. E90732.

CSA Approved File No. 1255749.

10, 16, 20, 26, 34, 40, 44, 50 & 60 positions.

Copper alloy contacts.

Accepts printed circuit boards of 1.6mm thickness.

Compatible with other leading manufacturers.

TECHNICAL SPECIFICATION

Material:

Molding - UL94VO rated glass filled grey

polyester

Contact - Phosphor bronze

Contact Plating:

Contacts are selective gold-plated over

nickel, pure tin on IDC section

Current Rating:

1 ampere at 70ºC maximum ambient

Working Voltage:

350V DC or AC peak

Insulation Resistance:

>1000 megohms

Voltage Proof:

1050 DC or AC peak

Operating Temperature:

-55ºC to +105ºC

Wire Gauge:

26 AWG Solid & Stranded

28 AWG Solid & Stranded

DIMENSIONS:

millimeters (inches)

No. of Positions

010

016

020

026

030

034

040

044

050

060

A

43.69 (1.72)

51.31 (2.02)

56.39 (2.22)

64.01 (2.52)

69.09 (2.72)

74.17 (2.92)

81.79 (3.22)

86.87 (3.42)

94.49 (3.72)

107.19 (4.22)

B

35.56 (1.40)

43.18 (1.70)

48.26 (1.90)

55.88 (2.20)

60.96 (2.40)

66.04 (2.60)

73.66 (2.90)

78.74 (3.10)

86.36 (3.40)

99.06 (3.90)

C

9

15

19

25

29

33

39

43

49

59

D

11.43 (0.450)

19.05 (0.750)

24.13 (0.950)

31.75 (1.25)

36.83 (1.45)

41.91 (1.65)

49.53 (1.95)

54.61 (2.15)

62.23 (2.45)

74.93 (2.95)

E

24.36 (0.959)

31.98 (1.26)

37.06 (1.46)

44.68 (1.76)

49.76 (1.96)

54.84 (2.16)

62.46 (2.46)

67.54 (2.66)

75.16 (2.96)

87.86 (3.46)

F

38.10 (1.50)

45.72 (1.80)

50.80 (2.00)

58.42 (2.30)

63.50 (2.50)

68.58 (2.70)

76.20 (3.00)

81.28 (3.20)

88.90 (3.50 )

101.60 (4.00)

G

33.02 (1.30)

40.64 (1.60)

45.72 (1.80)

53.34 (2.10)

58.42 (2.30)

63.50 (2.50)

71.12 (2.80)

76.20 (3.00)

83.82 (3.30)

96.52 (3.80)

H

15.11 (0.595)

22.73 (0.895)

27.81 (1.09)

35.43 (1.39)

40.51 (1.59)

45.59 (1.79)

53.21 (2.09)

58.29 (2.29)

65.91 (2.59)

78.61 (3.09)

J

15.34 (0.604)

22.96 (0.904)

28.04 (1.10)

35.66 (1.40)

40.74 (1.60)

45.82 (1.80)

53.44 (2.10)

58.52 (2.30)

66.14 (2.60)

78.84 (3.10)

K

5

8

10

13

15

17

202

22

25

30

6
