024969: DescriptionD Subminiature Connector, 50 Contact(s), Male, Press Fit Terminal,; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

024969 Overview

D Subminiature Connector, 50 Contact(s), Male, Press Fit Terminal,

024969 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARDS: MIL-C-24308; DIN 41652; IEC 807-3
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	PRESS FIT
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

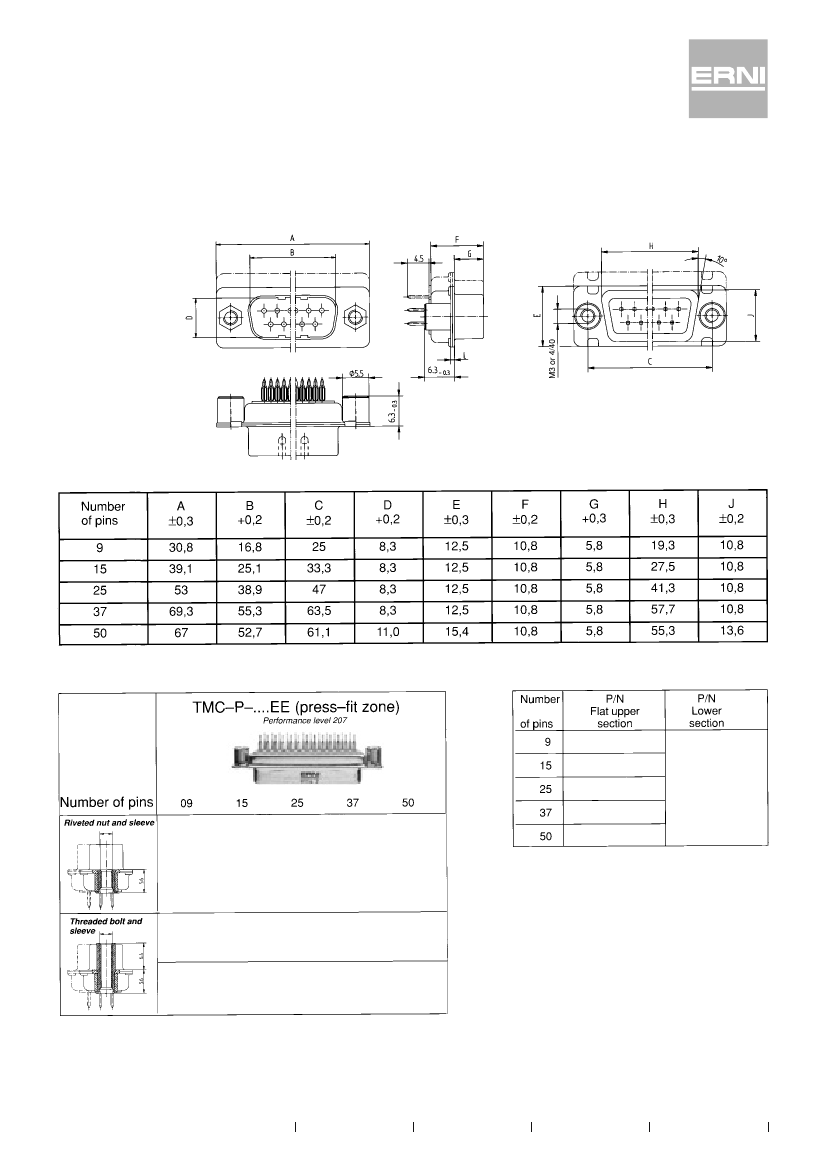

Pin connectors TMC-P with press-fit zone EE

Dimensional drawings

Pin connector

Dimension tables

Pin connectors (P)

Ordering details pin connectors TMC-P

Ordering details for press-fit tools

for pin connectors series TMC-P

471931

471932

471933

Version with riveted nut and sleeve M3 as accessories

473258

471934

471732

024965

024966

024967

024968

024969

Version with threaded bolt #4/40 and sleeve M3 as accessories

033531

033532

033533

033534

033535

The standard connectors have a termination

lenght of 4.5 mm and fixing bolts with a height

of 6.3 mm.

Version with threaded bolt M3 and sleeve M3 as accessories

033536

033537

033538

033539

033540

552

Catalog E 074484

04/06

Edition 7

www.erni.com
