0391701014

Description
Barrier Strip Terminal Block, 15A, 2 Row(s), 2 Deck(s)
CategoryThe connector    terminals
File Size24KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

0391701014 Overview

Barrier Strip Terminal Block, 15A, 2 Row(s), 2 Deck(s)

0391701014 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresPOLARIZED, SHROUDED
Fastening methodSCREW
Manufacturer's serial number39170
Installation typeBOARD
Number of layers2
Rows2
Number of channels14
Rated current15 A
Rated voltage300 V
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Wire gauge12 AWG
Base Number Matches1
This document was generated on 12/11/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0391701014
Planned for Obsolescence
Interface Module, Ribbon Cable Connector to Eurostyle™ Fixed, 14 Circuits, with DIN
Rail Adapter Unit
Documents:
3D Model
Drawing (PDF)
General
Product Family
Series
Application
Comments
Component Type
Product Name
Product Name
Type
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
Wire Size AWG
Wire Size AWG
Wire Size AWG
Wire Size AWG
Wire Size AWG
Wire Size AWG
Wire Size AWG
Electrical
Current - Maximum
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Sales Drawing
RoHS Certificate of Compliance (PDF)
Terminal Blocks
39170
Wire-to-Wire
Ribbon Cable connector
One Piece
Eurostyle™Fixed Mount
Ribbon
Interface Module
14
180° Angle
None
2
Vertical
None
No
0.200 In
5.08 mm
0.200 In
5.08 mm
Yes
Fully
No
No
110°C
12
14
16
18
20
22
24
26
15A
300V

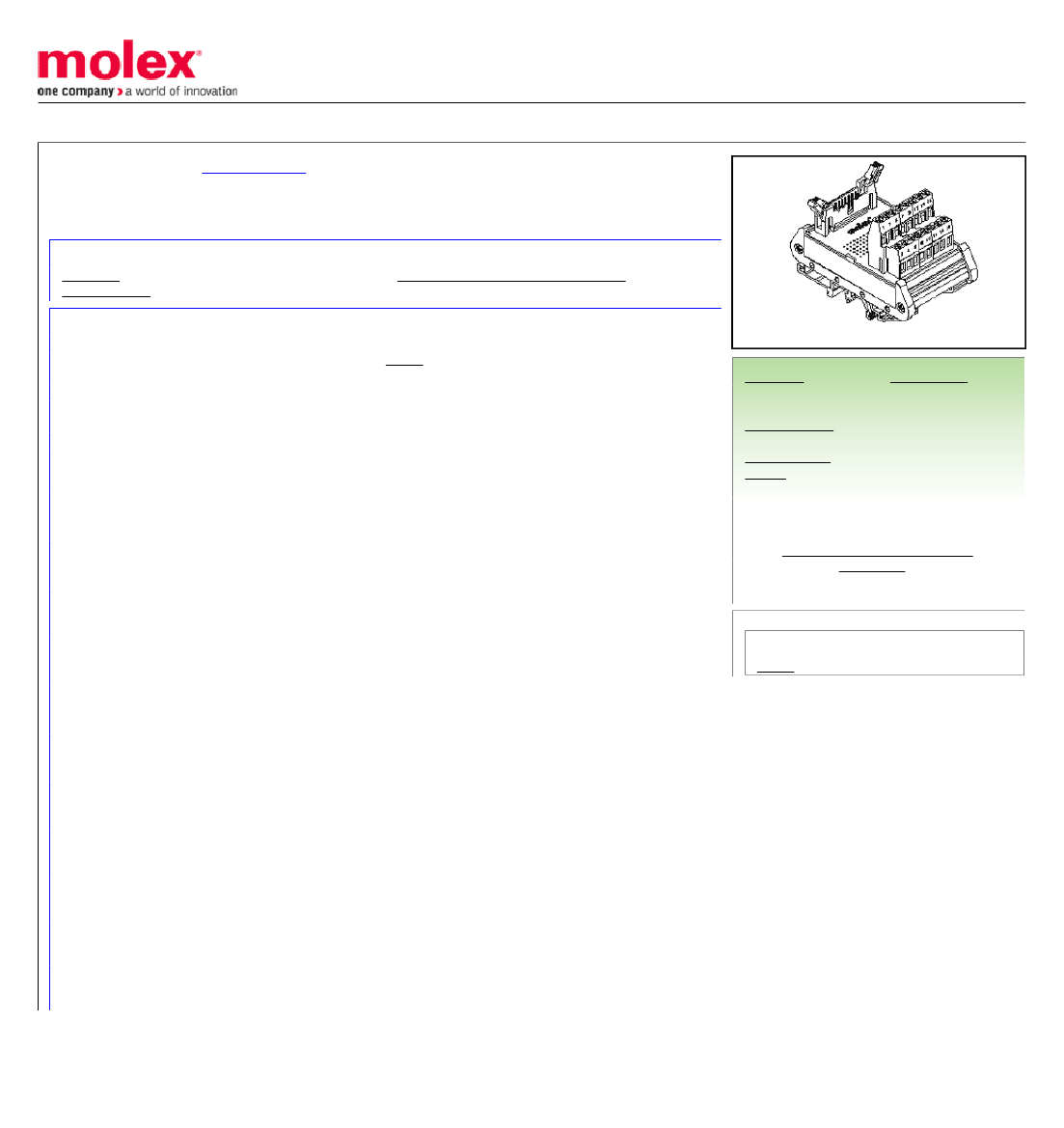

Series image - Reference only
EU RoHS
China RoHS
RoHS Compliance
Not Required
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39170 Series
SD-39170-005
This document was generated on 12/11/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
