03HPKO-TD-F(LF)(SN) datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 03HPKO-TD-F(LF)(SN)

Preview

03HPKO-TD-F(LF)(SN): DescriptionRectangular Power Connector, Female, Solder Terminal, ROHS COMPLAINT; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

03HPKO-TD-F(LF)(SN) Overview

Rectangular Power Connector, Female, Solder Terminal, ROHS COMPLAINT

03HPKO-TD-F(LF)(SN) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLAINT
Reach Compliance Code	unknown
Is Samacsys	N
Other features	TOP ENTRY
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLDER
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

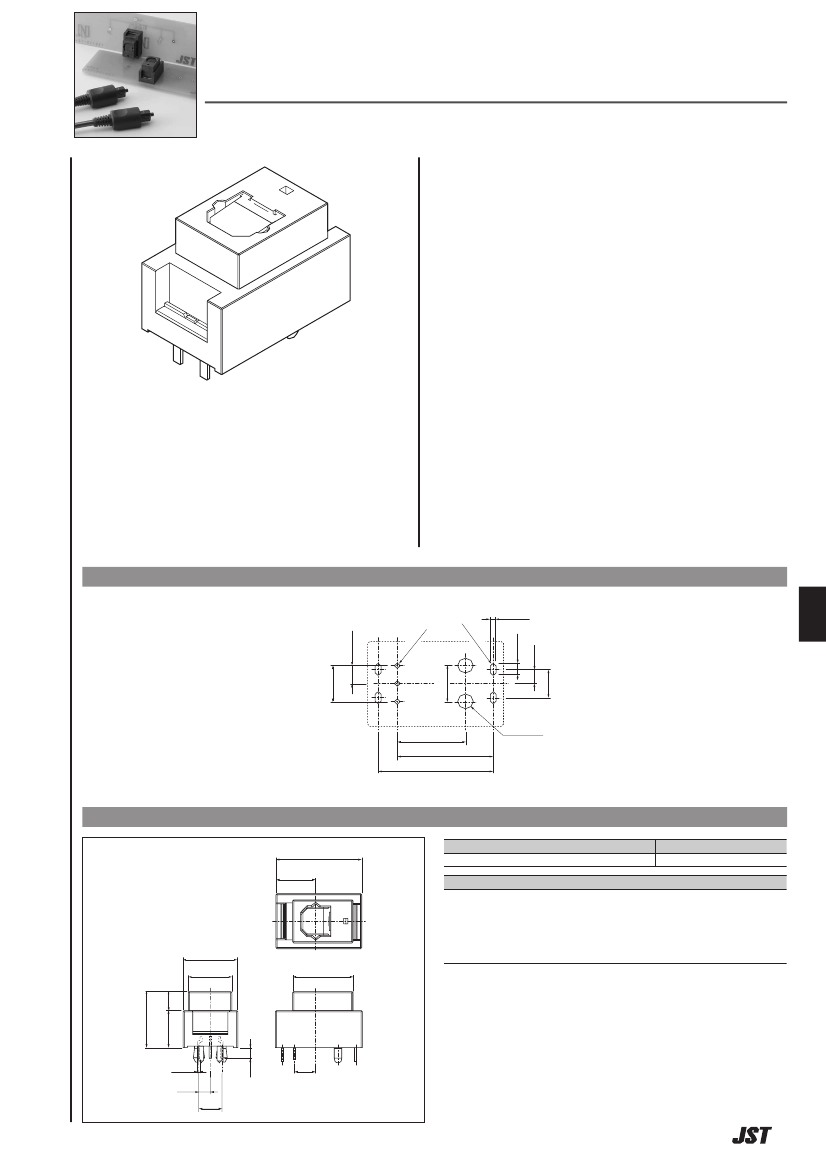

Optical Rectangular Connector

HPKO

CONNECTOR

This connector corresponds to the optical

rectangular connector.

Signal can be transmitted in 0.1 to 25Mbps

as transmission rate.

Prying strength of connector in the lateral

direction is strengthened by solder tab.

This connector has dustproof cover.

This is a top entry type connector in which

the cable is mated perpendicularly on the

PC board.

Specifications

–––––––––––––––––––

• Consumption current: 7 to 15mA

• Power supply voltage: -0.5 to 7V

• Temperature range: -20˚C to +70˚C

(including temperature rise in applying

electrical current)

• Applicable PC board thickness: 1.2 to 1.6mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

PC board layout (viewed from component side)

0.8

±

0.03

.4

R0

2-

2.54

±

0.03

+

0

.

0 1

1.6

±

0.03

f

0

.8

5.08

±

0.05

5

±

0.05

2

±

0.03

4

±

0.05

3-

9.7

±

0.05

13.6

±

0.05

16.3

±

0.05

2-f2.1

+

0

Connector

19.3

8.9

Model No.

03HPKO-TD-F

Material and Finish

Q’ty / box

1,400

12

9.5

(4.5)

13.4

Socket housing: Heat resisting resin, UL94V-0

Housing cover: Heat resisting resin, UL94V-0

Solder tab: Copper alloy, copper-undercoated, tin-plated

Spring: Stainless

Optical fiber: –

RoHS compliance

This product displays (LF)(SN) on a label.

13

8.5

(2.6)

3 -0.5

2.54

5.08

4.7

1
