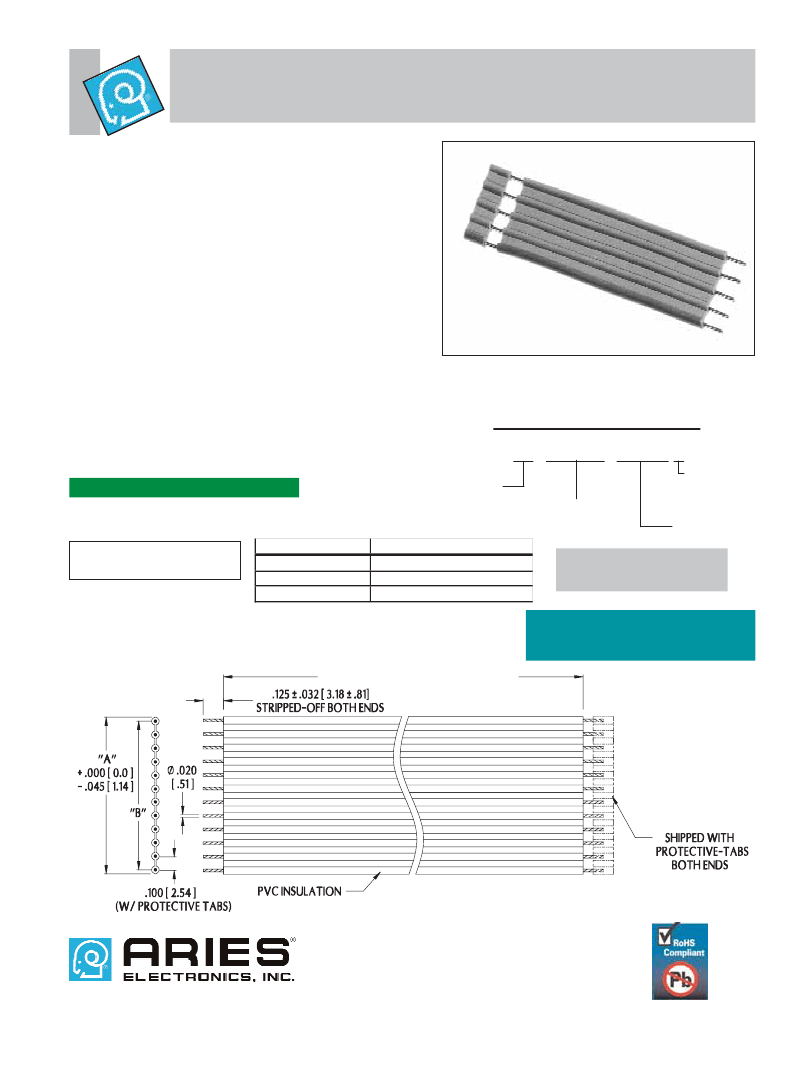

Series 152FB
Fusion Bonded Cable Jumpers
FEATURES:
• Aries Series 152FB Fusion Bonded Cable Jumpers are
flexible...plug them directly into PC boards or sockets.
• Stranded wire conductors are fusion bonded with an
overcoat of tin for easy soldering or socketing.
• Each jumper is shipped with protective tabs on both
ends for maintaining proper conductor spacing.
SPECIFICATIONS:
• Insulation is UL VW-1, Style 2651 Polyvinyl Chloride
(PVC) with optional polarization stripe on one side.
• Nominal insulation thickness is .009 [.23].
• Conductors are 26 gauge, 7-strand Copper Alloy with a
fusion bonded overcoat of Tin.
• Operating temperature=-4°F to 221°F [-20°C to 105°C].
• Voltage rating=300 Vrms.
• Dielectric withstanding voltage=1500 Vrms.
• Insulation resistance=10,000 MOhms per 10 feet
[3.05 meters].
• Resistance=40.3 Ohms per 1000 feet [304.8 meters].
• Propagation delay=1.3
ηs/foot.
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.033 ± .002 [.84 ± .05] dia.
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
Consult factory for sizes not shown
All tolerances ± .005 [.13]
unless otherwise specified
No of Conductors
4 thru 8
9 and 10
11 thru 22
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
X X - X X X X X - 1 5 2 F B X
Optional suf-
No. of
conductors
(4 thru 22)
Insulation length in
inches (see table)
fix:
P=Polarization
stripe along
one edge of
cable**
Jumper series
Minimum Insulation Length
1.000 [25.40]
1 250 [31 75]
1.500 [38.10]
**Aries reserves the right to ship
with or without polarization stripe
unless specified by customer.
“A”=NO. OF CONDUCTORS X .100 [2.54]
“B”=(NO. OF CONDUCTORS -1) X .100 [2.54]
INSULATION LENGTH “L” ± .125
ALL CABLES SHIP WITH LEAD FREE
MATERIAL UNLESS SPECIFIED BY
CUSTOMER WHEN ORDERING
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL:(908) 996-6841
FAX:(908) 996-3891
abc
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033
europe@arieselec.com
11001
REV.E
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
