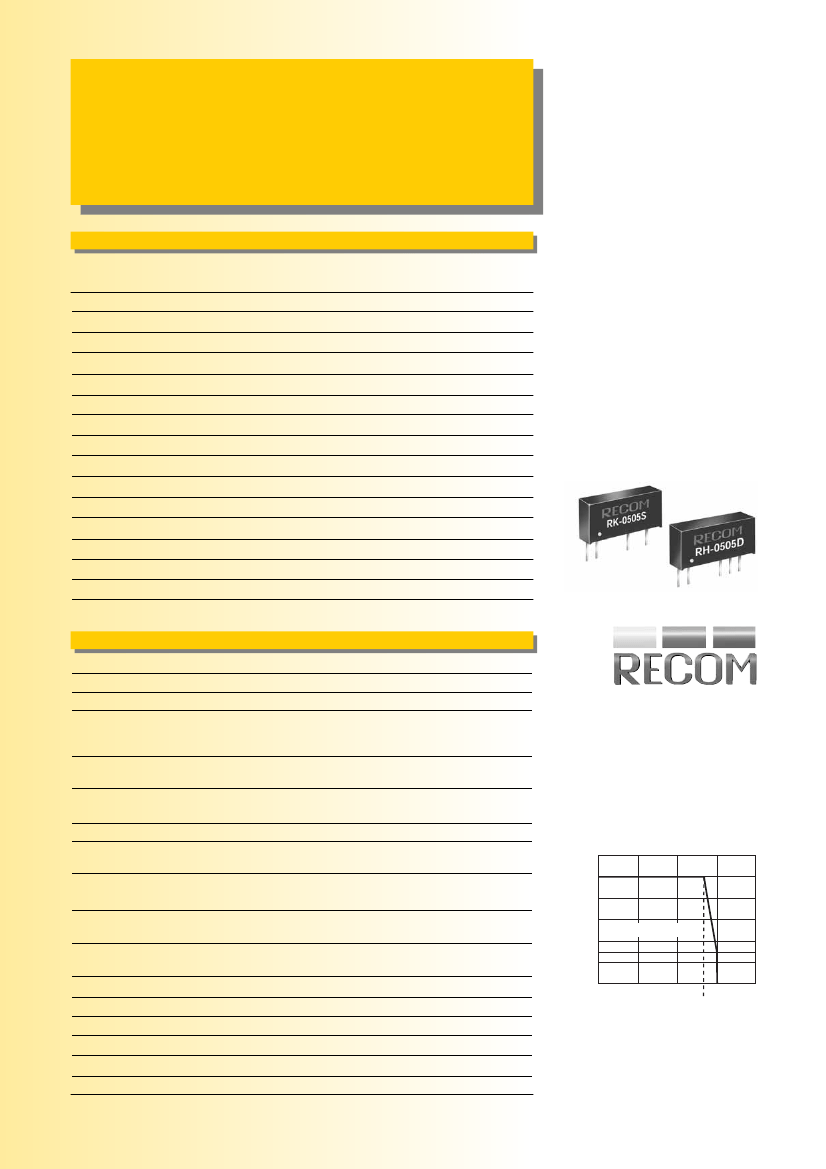

Features
Unregulated
Converters
●
●
●
●
●
●
Safety standards and approval:
EN 60950 certified, rated for 250VAC
(LVD test report)
Power Sharing on Dual Output
3kVDC & 4kVDC Isolation
Custom Solutions Available
UL94V-0 Package Material
Efficiency to 84%
ECONOLINE
DC/DC-Converter
RK
&
RH
Series
Selection Guide
Part
Number
SIP 7
RK-xx1.8S
RK-xx3.3S
RK-xx05S
RK-xx09S
RK-xx12S
RK-xx15S
RK-xx24S
RH-xx1.8D
RH-xx3.3D
RH-xx05D
RH-xx09D
RH-xx12D
RH-xx15D
(4kV)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
Input
Voltage
(VDC)
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
Output
Voltage
(VDC)
1.8
3.3
5
9
12
15
24
±1.8
±3.3
±5
±9
±12
±15
±24
Output
Current
(mA)
555
303
200
111
84
66
42
±278
±152
±100
±56
±42
±33
±21
Efficiency
(%)
70
75
70-78
76-79
78-79
80-82
74-83
70
70
74-78
76-79
80-82
80-84
80-84
1 Watt
SIP7
Single
&
Dual Output
RH-xx24D
(H)
xx = Input Voltage
Specifications
(Core Operating Area)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% full load)
Output Ripple and Noise (20MHz limited)
Operating Frequency
Efficiency at Full Load
No Load Power Consumption
Isolation Voltage
Rated Working Voltage
Isolation Voltage
Rated Working Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
Operating Temperature Range (free air convection)
Storage Temperature Range
Relative Humidity
MSL Level 1
H-Suffix
H-Suffix
±10%
±5%
1.2%/1% of Vin max.
1.8V, 3.3V output types
20% max.
5V output type
15% max.
9V, 12V, 15V, 24V output types
10% max.
Single output types
100mVp-p max.
Dual output types
±75mVp-p max.
RK types
50kHz min. / 100kHz typ. / 105kHz max.
RH types
57kHz min. / 100kHz typ. / 105kHz max.
RK types
RH types
70% min. / 80% typ.
101mW min. / 126mW typ. / 171mW max.
87mW min. / 130mW typ. / 190mW max.
3.000VDC min.
see Application Notes
Output Power (%)
100
80
60
40
30
20
0
Derating-Graph
(Ambient Temperature)
(tested for 1 second)
(long term isolation)
(tested for 1 second)
(long term isolation)
RK types
RH types
4.000VDC min.
see Application Notes.
20pF min. / 75pF max.
20pF min. / 65pF max.
15 GΩ min.
1 Second
-40°C to +85°C (see Graph)
-55°C to +125°C
95% RH
continued on next page
Safe Operating Area
85
Operating Temperature °C
-40
0
50
100
150
38
April-2005
www.recom-international.com
