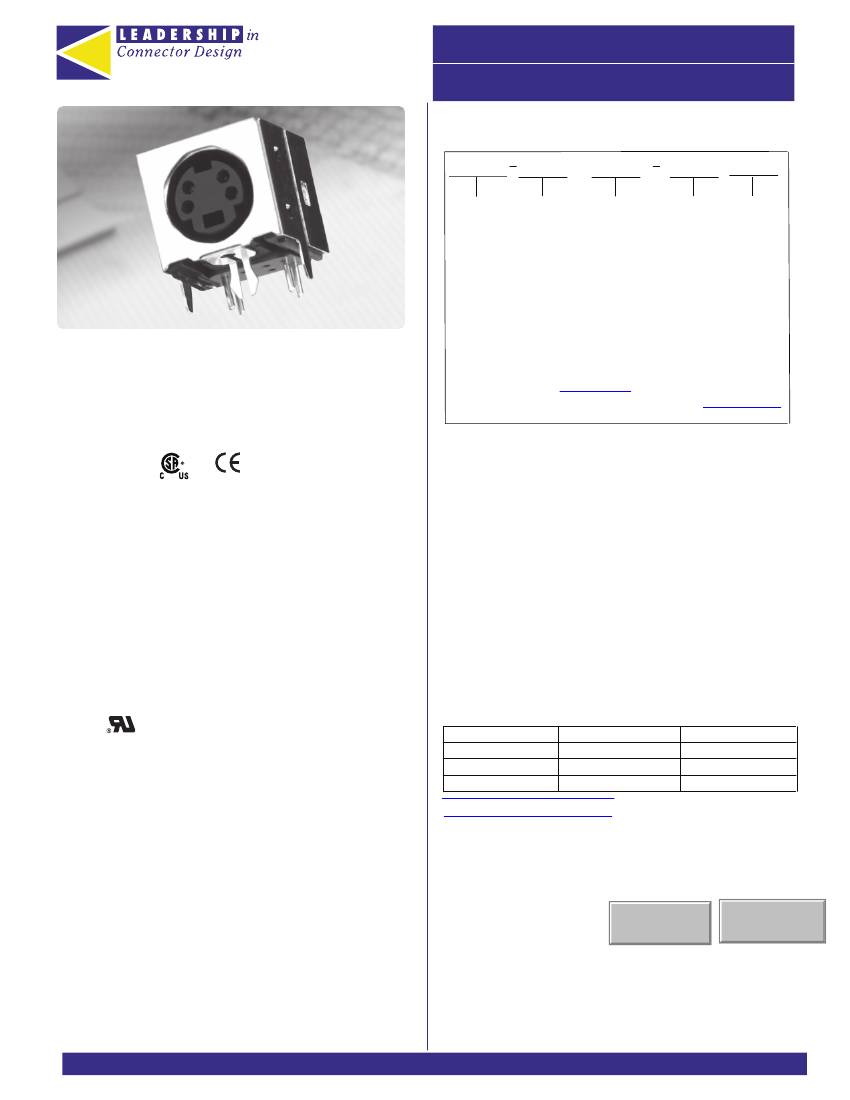

MINI-DINs / CIRCULAR DINs
KYCON
RoHS
KFMDGX Series
Ordering Information
KFMDGX
Series
6
Number of
Contacts
S
Contact
Type
BS
Shielding
Options
Plating
Options
Series
KFMDGX - Right Angle PCB Mount Mini-DIN with Ferrite
Number of Contacts
3, 4, 5, 6, 7, 8
KFMDGX Series
Right Angle Mini-DIN
with Ferrite
Features
• Audio, Video, Computer and Digital Equipment Applications
• Shielded Options Available for Good Conductivity, Grounding
and EMI/RFI Protection
• Mates with Standard and Snap and Lock Plugs
• Visual and Mechanical Polarization for Plug Insertion
• Gold Plated Contacts
• CSA/NRTL Certi ed File No. LR78160
• Ferrite Block for High Frequency Noise Filtering
LR78160
Contact Type
S - Receptacle
Shielding Options
BS - Fully Shielded
KFMDGX-XS-BS
BSC- Fully Shielded with Crimped Side Tabs
KFMDGX-XS-BSC
Electrical Characteristics
Contact Current Rating
2 Amp at 12V DC
Insulation Resistance
500 Megohms Min
Contact Resistance
Before Durability Test
Plug to Shield: 50 Milliohms Max.
Plug to Terminals: 30 Milliohms Max
After Durability Test
Plug to Shield: 100 Milliohms Max
Plug to Terminals: 60 Milliohms Max.
Dielectric Withstanding Voltage
500V AC for 1 Minute
Operating Temperature
-55˚C to +85˚C
Performance Speci cations
Body
PBT Thermoplastic, Black Color, UL94V-0 Rated
Contacts
Phosphor Bronze
Shield
Brass, Nickle Plated
Ferrite Speci cations
Impendance
Z (Ohm)
Z (Ohm)
Z (Ohm)
Value
13-15 Min
15-18 Min
20-22 Min
Test Frequency
30 MHz
50 MHz
100 MHz
Mechanical Characteristics
Insertion Force
4.5 kg Max
Extraction Force
0.9 kg - 3.0 kg
Durability
500 Cycles Minimum
Plating Option
Standard: Gold ash over nickel on contacts. Tin over nickel on soldertails
30: 30
µ
" gold over nickel on mating end of contacts. Tin over nickel on soldertails.
Click here for PCB Layout
Click here for Dimention
Engineering Drawing
Check Stock
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
