Product catalogue | Terminals | Screwing technology | SAK-series modular terminals | TS 32 | Polyamide PA 6.6 |
Modular terminals with electronic components | Diode terminals
General ordering data
Order No.
Part designation
Version
EAN
Qty.
Product notes
Note, technical data
Function
Additional technical data
Colour of insulating material
Connection direction
End plate required
Explosion-tested version "Ex e"
Installation advice
Insulating material
Levels cross-connected internally
No. of identical terminals
No. of levels
No. of terminal strips per level
Open sides
Operating temperature range
Product family
Type of connection
Type of mounting
UL 94 flammability rating of insulation material
Version
CSA rating data
Voltage (CSA)
CSA current
Conductors for clamping (additional
connection)
Type of connection
Conductors for clamping (rated connection)
Clamping range, min.
0523760000
DK 4/32 2D CSA A2

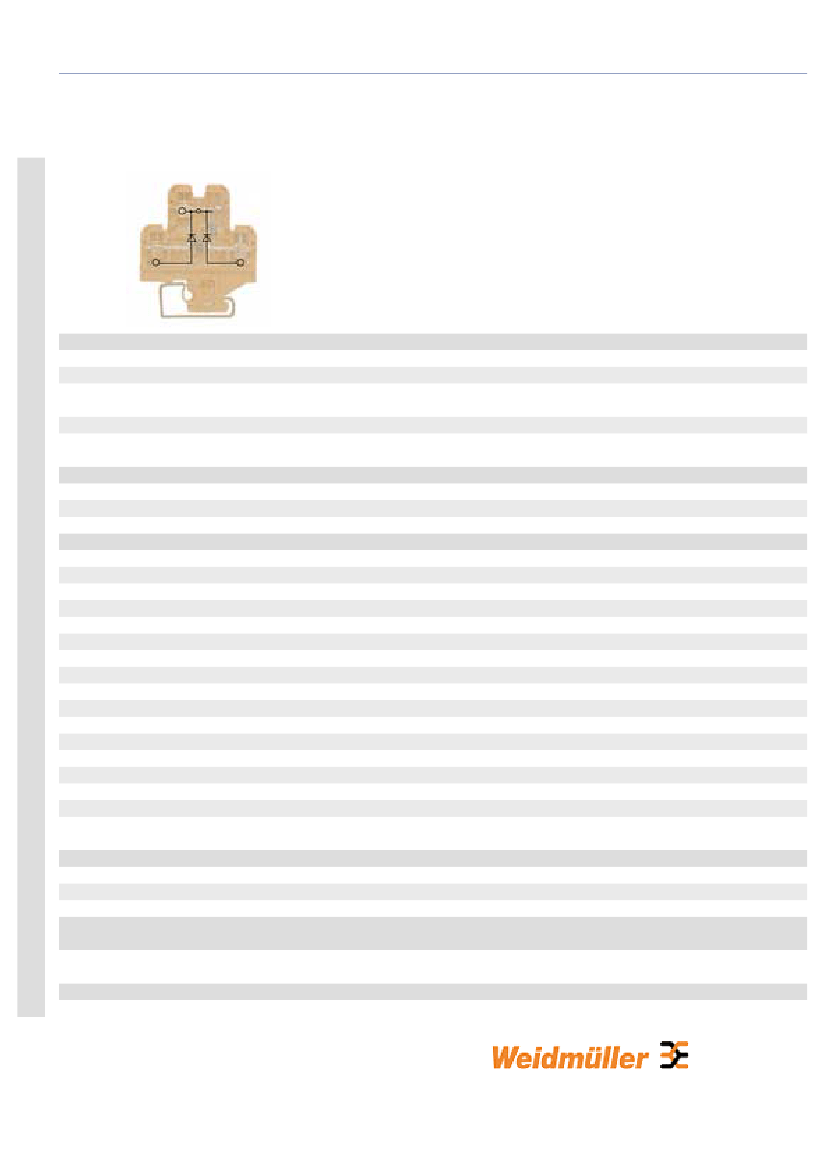

Component terminal, 4 mm², Screw connection,
PA 66, beige, TS 32
4008190030551
25 pc(s).
Diode current: max 1A. (1 N 4007)
Diodes terminal for lamp-test-circuits
beige
on side
Yes
No
TS 32
PA 66
No
1
2
2
right
- 50 °C, + 100 °C
SAK Series
Screwed
Snap-on
V2
Terminal with diode
300 V
10 A
Screw connection
0.33 mm²
-1-
Product catalogue | Terminals | Screwing technology | SAK-series modular terminals | TS 32 | Polyamide PA 6.6 |
Modular terminals with electronic components | Diode terminals
Conductors for clamping (rated connection)
Clamping range, max.
Type of connection
2nd type of connection
Connection direction
No. of connections
Stripping length
Clamping screw
Blade size
Tightening torque range
Torque level with DMS electric screwdriver
Gauge to IEC 60947-1
Solid, min.
Solid, max.
Stranded, min.
Stranded, max.
Flexible, min.
Flexible, max.
Flexible with ferrule, min. (DIN 46228/1)
Flexible with ferrule, max. (DIN 46228/1)
AWG conductor size, min.
AWG conductor size, max.
AWG conductor size, min.
AWG conductor size, max.
Dimensions
Width
Height of lowest version
Length
Disconnect terminals
Torque level with DMS electric screwdriver
Rating data
Rated cross-section
Rated voltage
Rated current
Current with max. conductor
Pollution severity
Approvals
Approvals institutes
4 mm²
Screw connection
screwed
on side
4
9 mm
M3
0.6 x 3.5 mm
0.5...0.8 Nm
2
A3
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
4 mm²
AWG 22
AWG 12
0.33 mm²
3.31 mm²
6 mm
56.5 mm
50 mm
2
4 mm²
380 V
10 A
10 A
3
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
EC000903
EC000903
27-14-11-27
27-14-11-27
-2-
Product catalogue | Terminals | Screwing technology | SAK-series modular terminals | TS 32 | Polyamide PA 6.6 |
Modular terminals with electronic components | Diode terminals
Classifications
eClass 5.1
27-14-11-27
Similar products
Order No.
0484060000
0467960000
0544660000
0663960000
0642760000
Part designation
DK4D
DK4D
DK4D
DK4D
DK4D
Version
Component terminal, 4 mm², Screw connection, PA 66, beige, TS 32
Component terminal, 4 mm², Screw connection, PA 66, beige, TS 32
Component terminal, 4 mm², Screw connection, PA 66, beige, TS 32
Component terminal, 4 mm², Screw connection, PA 66, beige, TS 32
Component terminal, 4 mm², Screw connection, PA 66, beige, TS 32
-3-
